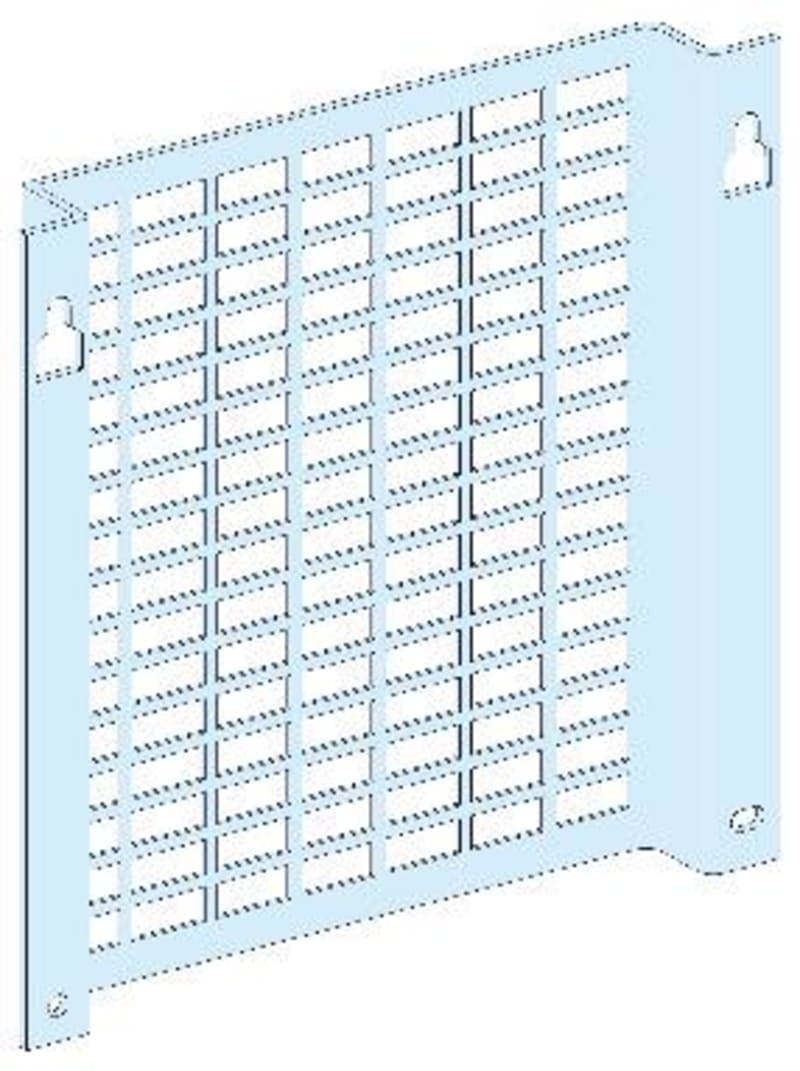

Mounting Plate-Perforated-Deep-4MOD.-PRISMASET G
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03171 Mounting plate-perforated-deep-4 modules-PrismaSeT G-width 600mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03171
- EAN / GTIN
- 3606481875235
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Modular width
- 4 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Mounting plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- installation description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm
- Mounting plate description
- Recessed slotted
- Installed device
- Phaseo: LV/LV transformer
- Number of vertical modules [50 mm]
- 4 module(s): LV/LV transformer in 600 mm Widefloor-standing enclosure; 4 module(s): LV/LV transformer in 600 mm Widewall-mounted enclosure
- Standards
- IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Surface finish
- Galvanized
- Width
- 600 mm
- Height
- 200 mm
- Product weight
- 0.74 kg
- Functional unit
- 600 mm PrismaSeT G floor-standing enclosure Phaseo LV/LV transformer 4 12.5 mm; 600 mm PrismaSeT G wall-mounted enclosure Phaseo LV/LV transformer 4 12.5 mm
- Warranty (in months)
- 18
- Perforated
- Yes
- Surface protection
- Galvanised
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481875235
- SAP 1200546890
- Code 82880669
Product Documentation
More from Schneider Electric
Schneider Electric

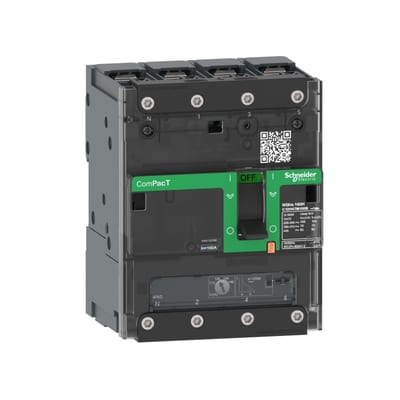

Schneider Electric Circuit breaker, ComPacT NSXm 63B, 25KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 25A, lugs/busbars C11B4TM025B
Schneider Electric

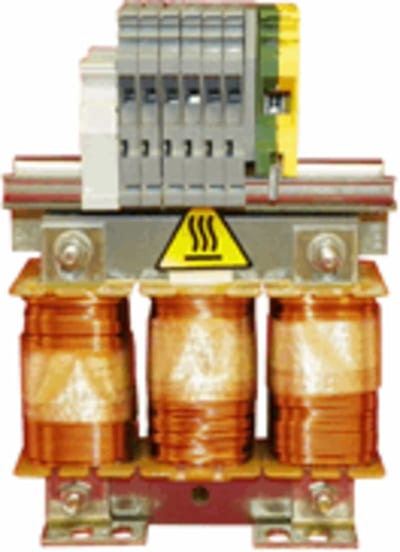

AC Nettdrossel 1MH 30A
VW3A4554
Schneider Electric

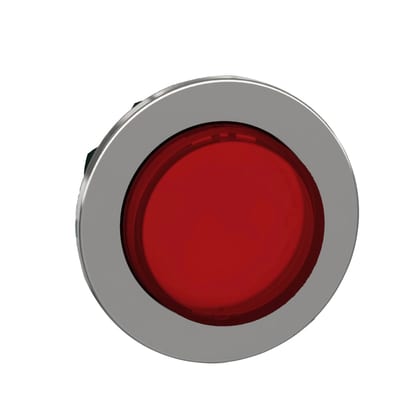

Push-button, flush, for LED, red, raised (ZB4FH43)
Schneider Electric

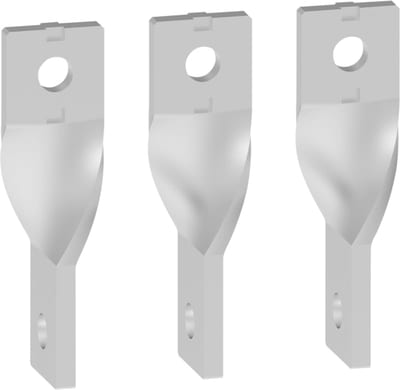

Tvers Kob.forleng. 3P G265-500
LA9G3632
Schneider Electric

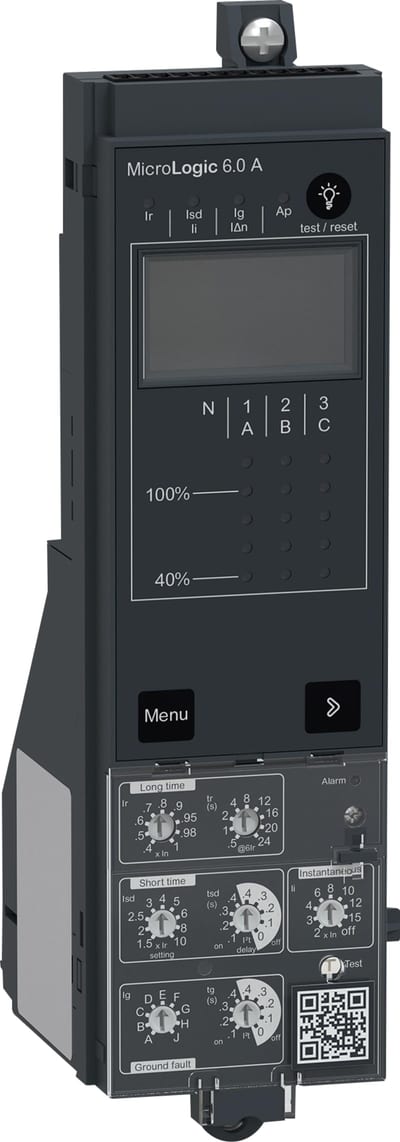

Schneider Electric Control unit MicroLogic 6.0A, ComPacT NS630B to NS1600 withdrawable manually operated, selective and earth-fault protections C6AWM
Schneider Electric

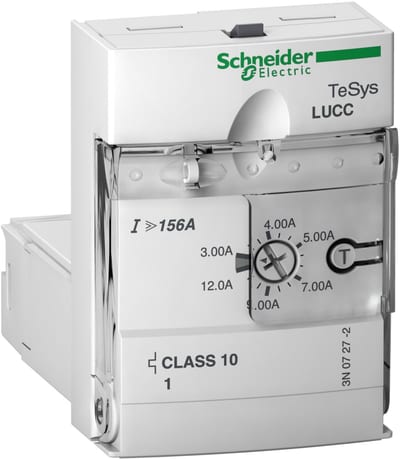

Schneider Electric Advanced control unit, TeSys U, 8-32A, 1P motors, protection & diagnostic, class 10, coil 24V AC LUCC32B
