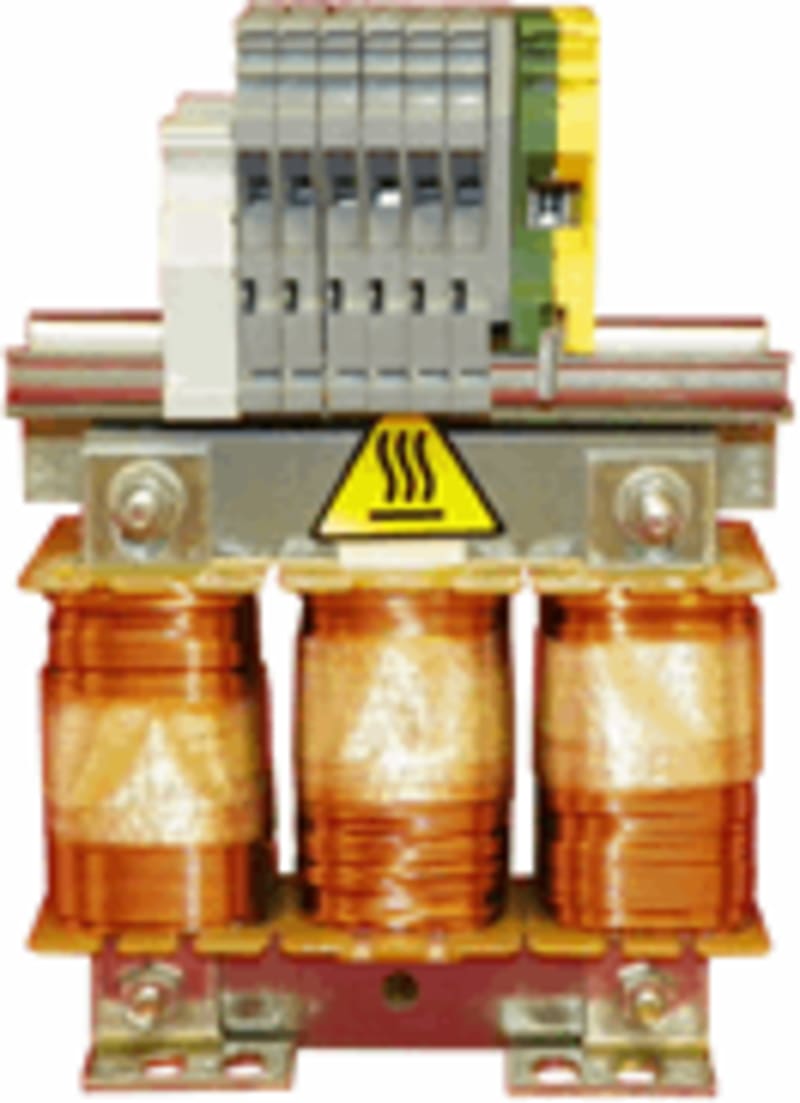

AC Nettdrossel 1MH 30A

Schneider Electric VW3A4554 AC nettdrossel 1MH 30A.

Manufacturer part number (MPN)

VW3A4554 EAN / GTIN: 3389118065932 Sales unit: pcs Range of product: Altivar Product or component type: Line/motor choke Product compatibility: Variable speed drive ATV310 motor: 7.5 kW - motor choke - 1 per drive; ATV31CD11N4 - line choke - 1 per drive; Variable speed drive ATV320 motor: 15 kW 525...600 V - three phase - motor choke - 1 per drive; ATV312HU55M3 - line choke - 1 per drive; LXM32.D30N4 - line choke - 1 per drive; ATV71HD18Y - line choke - 1 per drive; ATV312HD15S6 - motor choke - 1 per drive; ATV312HD11S6 - motor choke - 1 per drive; ATV312HD15N4 - line choke - 1 per drive; ATV61WD11N4C - line choke - 1 per drive; ATV61HD15N4 - line choke - 1 per drive; ATV71WD15N4 - line choke - 1 per drive; Variable speed drive ATV340 motor: 7.5 kW 380...480 V - line choke - 1 per drive; Variable speed drive ATV930 motor: 18.5 kW 500...690 V - three phase - line choke - 1 per drive; LXM32MC10N4 - line choke - 1 per drive; ATV312HD11N4 - motor choke - 1 per drive; Variable speed drive ATV320 motor: 5.5 kW 200...240 V - three phase - line choke - 1 per drive; Variable speed drive ATV320 motor: 7.5 kW 380...500 V - three phase - motor choke - 1 per drive; Variable speed drive ATV310 motor: 11 kW - line choke - 1 per drive; ATV312HU40M3 - line choke - 1 per drive; Variable speed drive ATV320 motor: 5.5 kW 200...240 V - three phase - motor choke - 1 per drive; ATV312HU40M3 - motor choke - 1 per drive; ATV61HD22Y - line choke - 1 per drive; Variable speed drive ATV340 motor: 11 kW 380...480 V - line choke - 1 per drive; ATV32HD11N4 - motor choke - 1 per drive; Variable speed drive ATV930 motor: 600 V - three phase - line choke - 25 hp - 1 per drive; LXM32.D18N4 - line choke - 1 per drive; Variable speed drive ATV320 motor: 15 kW 380...500 V - three phase - line choke - 1 per drive; ATV61HU55M3 - line choke - 1 per drive; ATV32HD11N4 - line choke - 1 per drive; ATV12PU40M3 - motor choke - 1 per drive; Variable speed drive ATV340 motor: 15 kW 380...480 V - line choke - 1 per drive; LXM32.D72N4 - line choke - 1 per drive; ATV312HU75N4 - motor choke - 1 per drive; Variable speed drive ATV320 motor: 11 kW 380...500 V - three phase - line choke - 1 per drive; ATV61WD11N4 - line choke - 1 per drive; ATV61HD11N4 - line choke - 1 per drive; ATV71WD11N4 - line choke - 1 per drive; ATV31CU75N4 - motor choke - 1 per drive; Variable speed drive ATV630 motor: 600 V - three phase - line choke - 30 hp - 1 per drive; Variable speed drive ATV320 motor: 4 kW 200...240 V - three phase - motor choke - 1 per drive; ATV312HU75M3 - line choke - 1 per drive; ATV61WD15N4 - line choke - 1 per drive; Variable speed drive ATV320 motor: 15 kW 525...600 V - three phase - line choke - 1 per drive; Variable speed drive ATV630 motor: 600 V - three phase - line choke - 25 hp - 1 per drive; ATV31CD15N4 - line choke - 1 per drive; ATV71PD11N4Z - line choke - 1 per drive; ATV312HD11N4 - line choke - 1 per drive; Variable speed drive ATV320 motor: 11 kW 380...500 V - three phase - motor choke - 1 per drive; ATV312HD15S6 - line choke - 1 per drive; Variable speed drive ATV320 motor: 7.5 kW 200...240 V - three phase - line choke - 1 per drive; ATV61HD18Y - line choke - 1 per drive; Variable speed drive ATV630 motor: 18.5 kW 500...690 V - three phase - line choke - 1 per drive; ATV32HD15N4 - line choke - 1 per drive; ATV71HU40M3 - line choke - 1 per drive; Variable speed drive ATV310 motor: 7.5 kW - line choke - 1 per drive; Variable speed drive ATV930 motor: 600 V - three phase - line choke - 30 hp - 1 per drive; Variable speed drive ATV320 motor: 4 kW 200...240 V - three phase - line choke - 1 per drive; ATV312HU55M3 - motor choke - 1 per drive; Variable speed drive ATV320 motor: 7.5 kW 200...240 V - three phase - motor choke - 1 per drive; ATV312HU75M3 - motor choke - 1 per drive; ATV61HU40M3 - line choke - 1 per drive; Variable speed drive ATV930 motor: 22 kW 500...690 V - three phase - line choke - 1 per drive; ATV32HU75N4 - motor choke - 1 per drive; Variable speed drive ATV310 motor: 11 kW - motor choke - 1 per drive; LXM32MD85N4 - line choke - 1 per drive; ATV71HD11N4 - line choke - 1 per drive; Variable speed drive ATV320 motor: 11 kW 525...600 V - three phase - line choke - 1 per drive; ATV71HD22Y - line choke - 1 per drive; ATV31CD11N4 - motor choke - 1 per drive; ATV71HD15N4 - line choke - 1 per drive; Variable speed drive ATV630 motor: 22 kW 500...690 V - three phase - line choke - 1 per drive; ATV71HU55M3 - line choke - 1 per drive; ATV12HU40M3 - motor choke - 1 per drive; Variable speed drive ATV320 motor: 11 kW 525...600 V - three phase - motor choke - 1 per drive; ATV61WD15N4C - line choke - 1 per drive number of phases: Three phase Range compatibility: Lexium 32; Altivar 312 Solar; Easy Altivar 310; Altivar 12; Lexium 62; Altivar 71; Altivar Machine ATV340; Altivar Machine ATV320; Altivar Process ATV900; Altivar 31C; Altivar 61; Lexium 52; Altivar 32; Altivar 312; Altivar Process ATV600; Easy Altivar 310L Device application: Reduction of current harmonics; Reduction of overvoltages at motor terminals Value of inductance: 1 mH [In] rated current: 31 A Thermal losses: 90 W Electrical connection: Terminal 16 mm² / 4 AWG, 1.2…1.4 N.m power supply frequency: 50...60 Hz Max current: 1.65 x nominal current (duration = 60 s) Maximum voltage drop at rated load: 5 % Electrical insulation class: Class F minimum clearance distance: 5.5 mm IEC 60664 Leakage distance: 11.5 mm conforming to IEC 60664 Product weight: 6 kg Width: 155 mm Height: 170 mm Depth: 135 mm Standards: EN 50178; IEC 60076 (with HD398); VDE 0160 level 1 IP degree of protection: Choke: IP00; Terminals: IP10 Environmental characteristic: 3B1 conforming to IEC 721-3-3; 3C2 conforming to IEC 721-3-3; 3S1 conforming to IEC 721-3-3 Pollution degree: 2 conforming to EN 50178 Vibration resistance: 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6; 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6 Shock resistance: 15 gn for 11 ms conforming to IEC 60068-2-27 Relative humidity: 0…95 % Ambient air temperature for operation: 45…55 °C (with current derating of 2 % per °C); 0…45 °C (without current derating) Ambient air temperature for storage: -25…70 °C Operating altitude: <= 1000 m without current derating; 1000...3000 m with current derating 1 % per 100 m Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 20.500 cm Package 1 Width: 24.500 cm Package 1 Length: 27.000 cm Package 1 Weight: 5.994 kg Unit Type of Package 2: S06 Number of Units in Package 2: 12 Package 2 Height: 75.000 cm Package 2 Width: 60.000 cm Package 2 Length: 80.000 cm Package 2 Weight: 83.928 kg Country of origin: CZ Warranty (in months): 18 Suitable as interference suppression reactance coil: No Suitable as net reactance coil: Yes Suitable as commutation reactance coil: No Suitable as ripple filter choke: No Suitable as output reactance coil: Yes Number of poles, primary side: 3 Rated operating frequency: 50–60 Hz Max. rated operation voltage Ue: 690 V Rated current AC: 31 A Rated inductance: 1 mH Degree of protection (IP): IP00 Relative short circuit voltage: 0 %

HS Code

8504.50

• EAN 3389118065932
• SAP 1000063460
