Schneider Electric Connection Withd NS-MTZ1/NT 3P 1250A Prisma P LVS04477

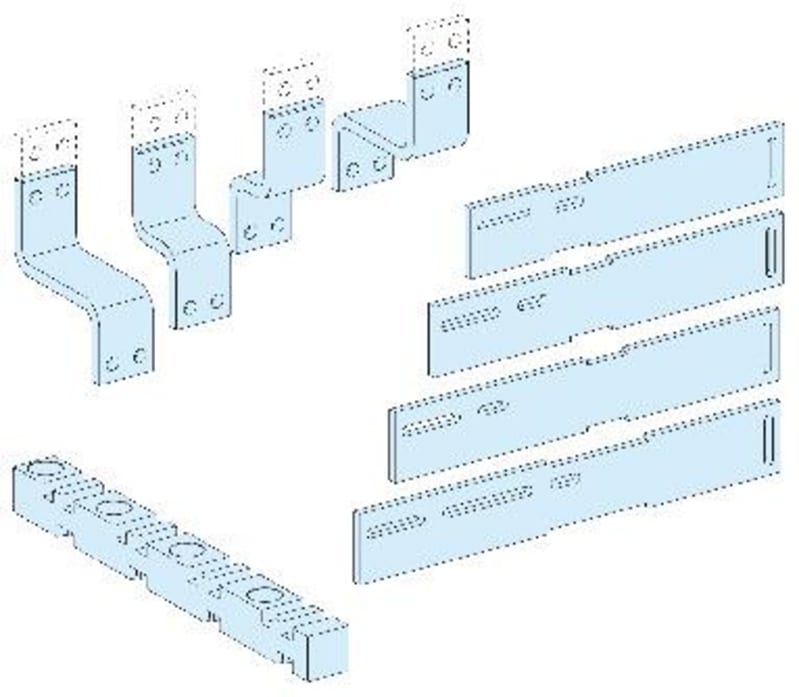

Schneider Electric LVS04477 Prefabricated connection for withdrawable-vertical mounted MTZ1/NS1250A-for Linergy LGY 3P -PrismaSeT P.

Manufacturer part number (MPN)

LVS04477

EAN / GTIN

3606481867759

Sales unit

pcs

Rated current

1250 A

Number of poles

3P

Range

PrismaSeT

Range of product

PrismaSeT P

Product or component type

Connection

product name

PrismaSeT PrismaSeT P enclosure

Accessory / separate part category

Current distribution accessory

Standards

IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure

Product certifications

ASTA

Cubicle-device connection

Linergy busbar

Poles description

3P

installation description

Cubicle - width 650 mm

Cubicle depth

400 mm: front; 400 + 400 mm: rear

Installed device

ComPact: drawout NS630b...1000 - control: direct front rotary handle vertical installation; ComPact: drawout NS1250 - control: direct front rotary handle vertical installation; ComPact: drawout NS630b...1000 - control: motor mechanism vertical installation; ComPact: drawout NS1250 - control: motor mechanism vertical installation; ComPact: drawout NS630b...1000 - control: toggle vertical installation; ComPact: drawout NS1250 - control: toggle vertical installation; Masterpact: drawout NT06...10 - control: toggle vertical installation; Masterpact: drawout NT06...10 - control: motor mechanism vertical installation; Masterpact: drawout NT12 - control: toggle vertical installation; Masterpact: drawout NT12 - control: motor mechanism vertical installation

[Ie] rated operational current

1250 A

Busbar cross section

80 x 10 mm

Product weight

7.42 kg

Quantity per set

Set of 1

functional unit

650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout toggle vertical 3P 1 front connection on Canalis 18; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout direct front rotary handle vertical 3P 1 front connection on Canalis 18; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout motor mechanism vertical 3P 1 front connection on Canalis 18; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 drawout toggle vertical 3P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 drawout direct front rotary handle vertical 3P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS1250 drawout motor mechanism vertical 3P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout toggle vertical 3P 1 front connection on Canalis 18; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout direct front rotary handle vertical 3P 1 front connection on Canalis 18; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout motor mechanism vertical 3P 1 front connection on Canalis 18; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout toggle vertical 3P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout direct front rotary handle vertical 3P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout motor mechanism vertical 3P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 drawout toggle vertical 3P 1 front connection on adaptor 13; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 drawout motor mechanism vertical 3P 1 front connection on adaptor 13; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT06...10 drawout toggle vertical 3P 1 rear connection on adaptor 11; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT06...10 drawout motor mechanism vertical 3P 1 rear connection on adaptor 11; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 drawout toggle vertical 3P 1 front connection on Canalis 18; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 drawout motor mechanism vertical 3P 1 front connection on Canalis 18; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT06...10 drawout toggle vertical 3P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT06...10 drawout motor mechanism vertical 3P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT12 drawout toggle vertical 3P 1 front connection on adaptor 15; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT12 drawout motor mechanism vertical 3P 1 front connection on adaptor 15; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT12 drawout toggle vertical 3P 1 rear connection on adaptor 11; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT12 drawout motor mechanism vertical 3P 1 rear connection on adaptor 11; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT12 drawout toggle vertical 3P 1 front connection on Canalis 18; 650 mm 400 mm PrismaSeT P cubicle Masterpact NT12 drawout motor mechanism vertical 3P 1 front connection on Canalis 18; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT12 drawout toggle vertical 3P 1 rear connection on Canalis 16; 650 mm 800 mm PrismaSeT P cubicle Masterpact NT12 drawout motor mechanism vertical 3P 1 rear connection on Canalis 16; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout toggle vertical 3P 1 front connection on adaptor 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout direct front rotary handle vertical 3P 1 front connection on adaptor 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1250 drawout motor mechanism vertical 3P 1 front connection on adaptor 15; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout toggle vertical 3P 1 front connection on adaptor 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout direct front rotary handle vertical 3P 1 front connection on adaptor 13; 650 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 drawout motor mechanism vertical 3P 1 front connection on adaptor 13

Number of Units in Package 1

1

Number of Units in Package 2

28

Warranty (in months)

18

Width

650 mm

With cover

No

Max. rated current

1250 A

Country of origin

France

HS Code

8536.90

• EAN 3606481867759
• SAP 1200547130
• Code 82879366
