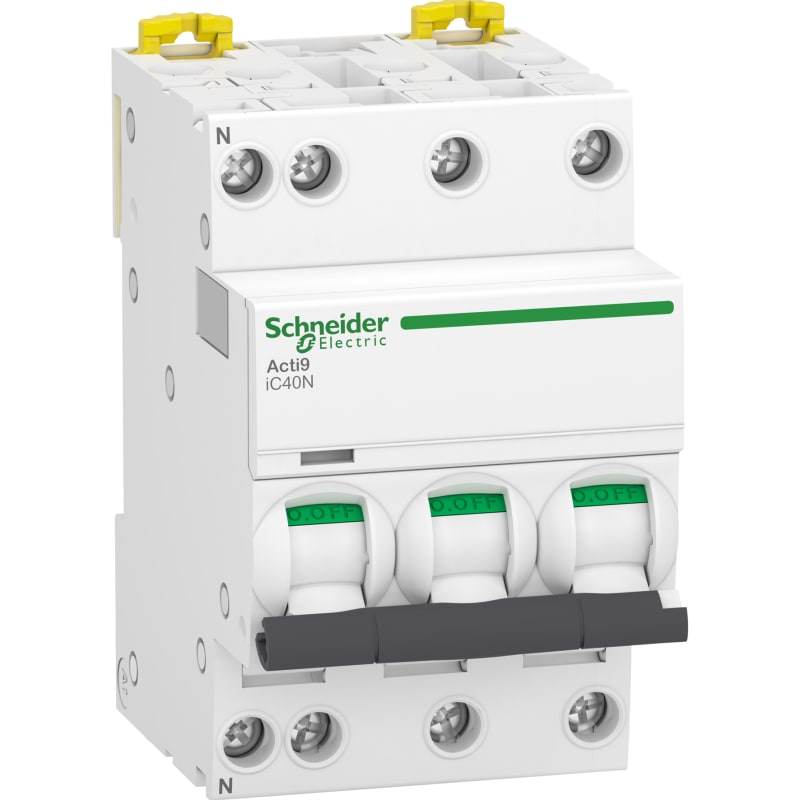

Schneider Electric Miniature circuit breaker (MCB), ACTI9 IC40N, 3P+N, 40A, B curve, 6000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9P44740
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9P44740 Acti 9 iC40N miniature circuit breaker 3P B 40A.
Technical Specifications
- Manufacturer part number (MPN)
- A9P44740
- EAN / GTIN
- 3606481326102
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Rated current
- 40 A
- Range
- Acti9
- Product name
- Acti9 iC40
- Product or component type
- Miniature circuit-breaker
- Device short name
- iC40N
- Device application
- Distribution
- Poles description
- 3P + N
- Number of protected poles
- 3
- Neutral position
- Left
- [In] rated current
- 40 A
- Network type
- AC
- Trip unit technology
- Thermal-magnetic
- Curve code
- B
- Breaking capacity
- 10 kA Icu at 400 V AC 50/60 Hz conforming to EN/IEC 60947-2; 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Quality labels
- OVE; IMQ
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 400 V AC 50/60 Hz
- Magnetic tripping limit
- 3...5 x In conforming to EN/IEC 60898-1; 4 x In +/- 20 % conforming to EN/IEC 60947-2
- [Ics] rated service breaking capacity
- 6000 A 100 % x Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1; 5 kA 50 % x Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60947-2
- Limitation class
- 3 conforming to EN/IEC 60898-1
- [Ui] rated insulation voltage
- 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 4 kV conforming to EN/IEC 60947-2
- Contact position indicator
- Yes
- Control type
- Toggle
- Local signalling
- ON/OFF indication; Trip indicator
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- 9 mm pitches
- 6
- Height
- 85 mm
- Width
- 54 mm
- Depth
- 74 mm
- Product weight
- 345 g
- Colour
- White
- Mechanical durability
- 20000 cycles
- Electrical durability
- 10000 cycles
- Locking options description
- Padlocking device
- Connections - terminals
- Tunnel type terminals top or bottom 1…10 mm² flexible; Tunnel type terminals top or bottom 1…16 mm² rigid
- Wire stripping length
- 14 mm for top or bottom connection
- Tightening torque
- 2 N.m top or bottom
- Earth-leakage protection
- Separate block
- Standards
- EN/IEC 60898-1; EN/IEC 60947-2
- Product certifications
- CE; BV; RINA; DNV
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- Pollution degree
- 3 conforming to EN/IEC 60947-2
- Relative humidity
- 95 % at 55 °C
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481326102
- SAP 1200289270
- Code 82265037
Product Documentation
More from Schneider Electric
Schneider Electric

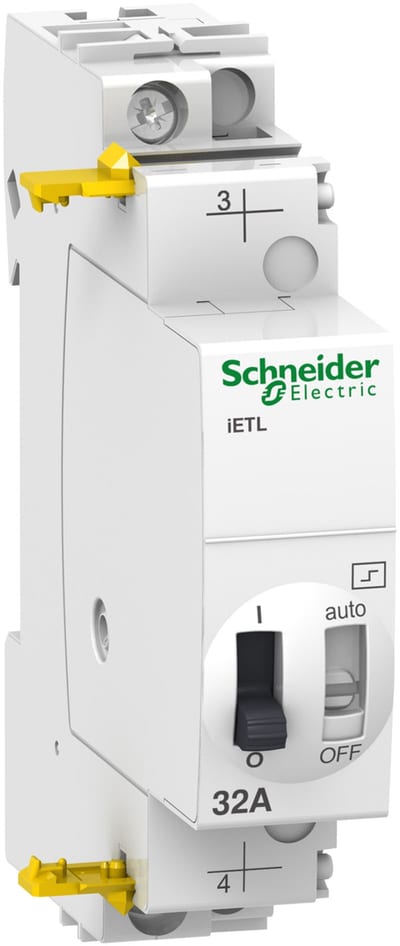

Schneider Electric extension ETL iTL 32 - 1P -1NO - 32A - coil 110 VDC - 230...240VAC 50/60Hz A9C32836
Schneider Electric

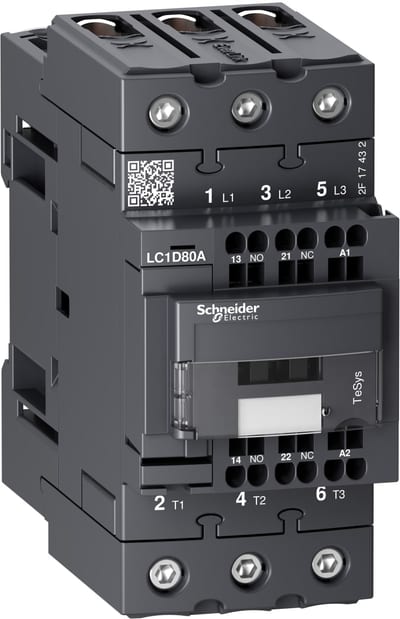

Schneider Electric Contactor, TeSys Deca, 3P(3 NO), AC-3/AC-3E, <=440V, 66A, 230V AC 50/60Hz coil, EverLink+springs LC1D80A3P7
Schneider Electric

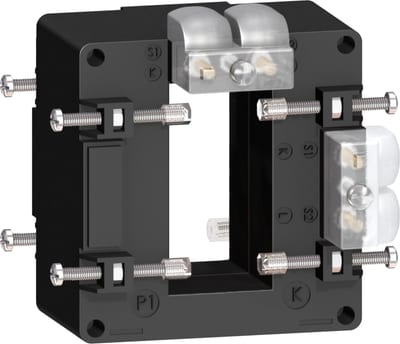

Current Transformer 400/5 RAIL 32X65
METSECT5DA040
Schneider Electric
Software for XPSMC controller
XPSMCWIN
Schneider Electric

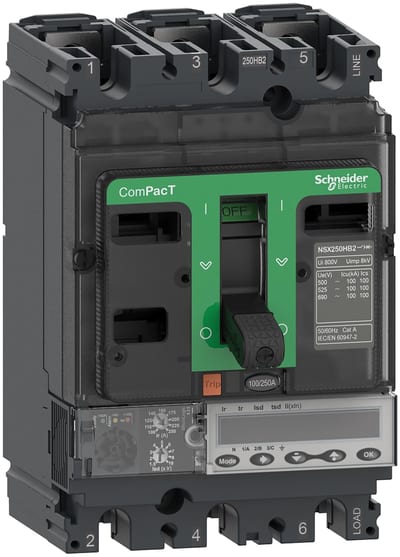

Schneider Electric Circuit breaker, ComPacT NSX250R, 200KA/415VAC, 3 poles, MicroLogic 5.2E trip unit 100A C25R35E100
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100N, 50KA/415VAC, 3 poles, MA trip unit 100A C10N3MA100
Schneider Electric

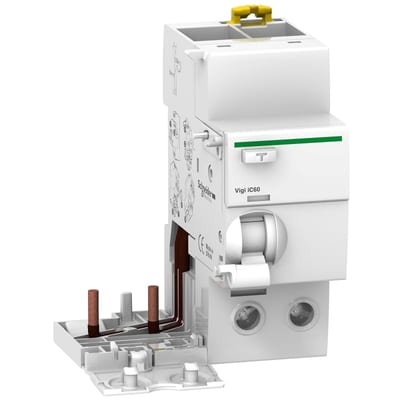

Schneider Electric Vigi IC60 - earth leakage add-on block - 2P - 40A - 30MA - SI type A9V61240
