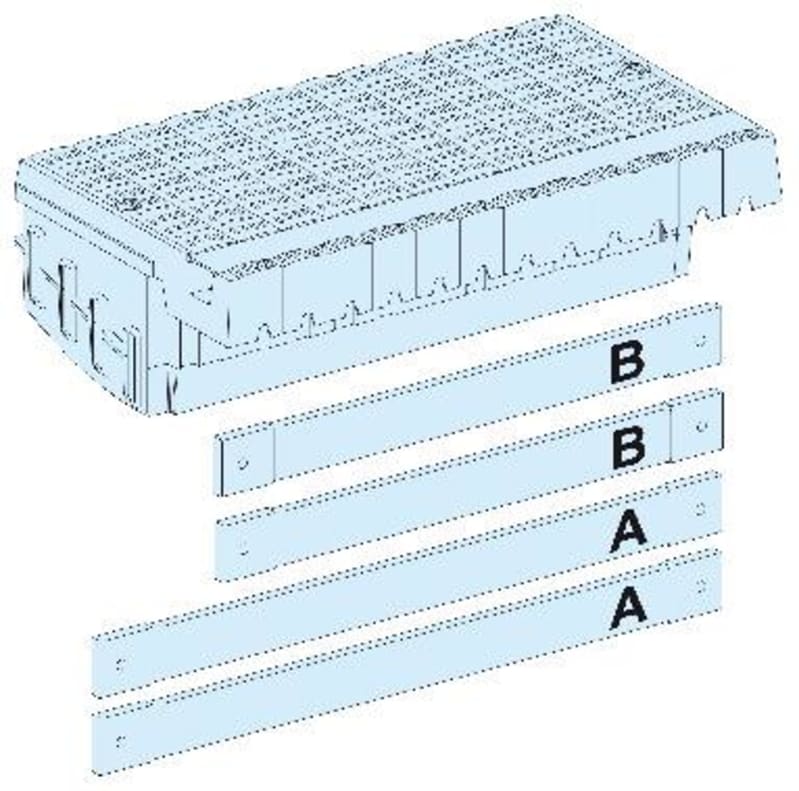

Linergy FC(Polypact) with connection.-pl.in 4P P

Schneider Electric LVS04406 Busbarblokk-Linergy FC(Polypact)-with connection-for vertical plug in NSX100/250-4P-PrismaSeT P.

Manufacturer part number (MPN)

LVS04406

EAN / GTIN

3606481870667

Sales unit

pcs

Number of poles

4P

Range

Linergy

Range of product

Linergy

Product or component type

Device feeder

Product name

Linergy FC

Range compatibility

PrismaSeT PrismaSeT P cubicle

Accessory / separate part category

Connection accessory

Provided equipment

Prefabricated flexible connection to Linergy busbars

Poles description

4P

Installed device

ComPact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX100...160 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX250 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX250 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX250 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX100...160 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX250 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX100...160 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX250 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX250 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX250 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX250 with earth leakage protection - control: toggle - vertical installation

Number of devices

3 (4P)

Installation direction

Horizontal

installation description

Cubicle - width 650 mm

Mounting support

Mounting plate

[Ui] rated insulation voltage

750 V AC

[Uimp] rated impulse withstand voltage

8 kV

[Ie] rated operational current

675 A at 40 °C

[Ue] rated operational voltage

690 V

[Ipk] rated peak withstand current

50 kA

I²t on activation

25000000 A².s

Permissible current

675 A at 40 °C; 615 A at 60 °C; 570 A at 70 °C

Standards

IEC 61439-2; IEC 61439-1

Product certifications

KEMA; ASEFA

Quantity per set

Set of 1

Length

440 mm

Height

132 mm

Depth

235 mm

Product weight

8 kg

Colour

Black

Connections - terminals

Outgoer: plug in (phase / neutral) , 3 outgoers; Supply: flexible bars (phase / neutral) , 32 x 8 mm

Number of Units in Package 1

1

Number of Units in Package 2

35

Country of origin

FR

Warranty (in months)

18

Insulated

Yes

Number of phases

3

Cross section

300 mm²

Rated permanent current Iu

675 A

Conditioned rated short-circuit current Iq

85 kA

Width in number of modular spacings

650

Rated surge voltage

8 kV

Rated short-time withstand current lcw

50 kA

Suitable for devices with auxiliary switch

No

Suitable for devices with N-conductor

Yes

Suitable for number of devices

3

Max. rated operation voltage Ue

690 V

Module width

35 mm

HS Code

8544.42
