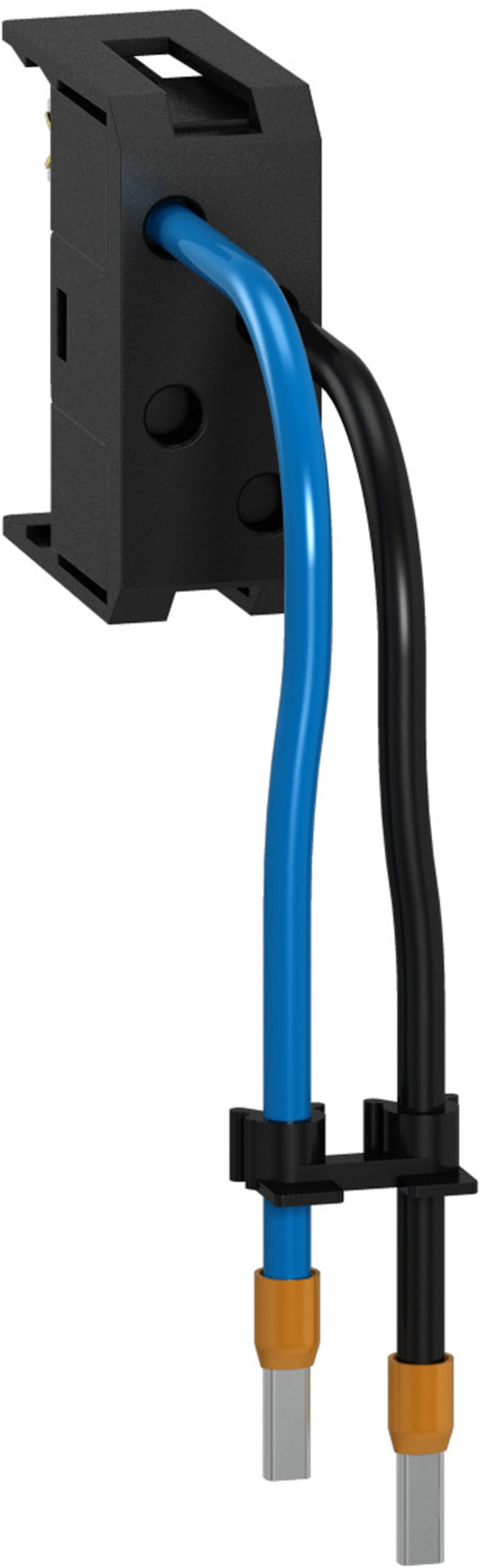

PLUG L+n 110 MM (AK5PC12)

Schneider Electric AK5PC12 Busbar Plug L+N 11 mm.

Manufacturer part number (MPN)

AK5PC12

EAN / GTIN

3389110576801

Sales unit

pcs

Package quantity

6 pcs

Range

Linergy

Product name

HK

Product or component type

Plug outlet

Poles description

1P + N

[Ith] conventional free air thermal current

16 A

I²t on activation

100000 A².s

Number of points

1

Number of cables

2 cable(s) 2.5 mm²

Cable length

0.2 m

Quantity per set

Set of 6

Width

18 mm

Height

46 mm

Depth

38 mm

Product weight

0.035 kg

[Ui] rated insulation voltage

600 V conforming to CSA; 600 V conforming to UL; 690 V conforming to IEC 60439-1

Peak current

25 kA

Standards

IEC 60439

Product certifications

DNV; UL; LROS (Lloyds register of shipping); CSA

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

96

Country of origin

FR

Warranty (in months)

18

Colour

Grey

RAL-number

7021

With locking

Yes

Protection

None

Number of conductors (without earthing)

2

Phase selection

No

Number of poles

1

Length

18 mm

Degree of protection (IP)

IP20

Branch off type

Cable

Rated voltage AC 50 Hz

400–690 V

Rated current AC 50 Hz

16 A

HS Code

8536.90

• EAN 3389110576801
• SAP 1000024963
• Code 8195141
