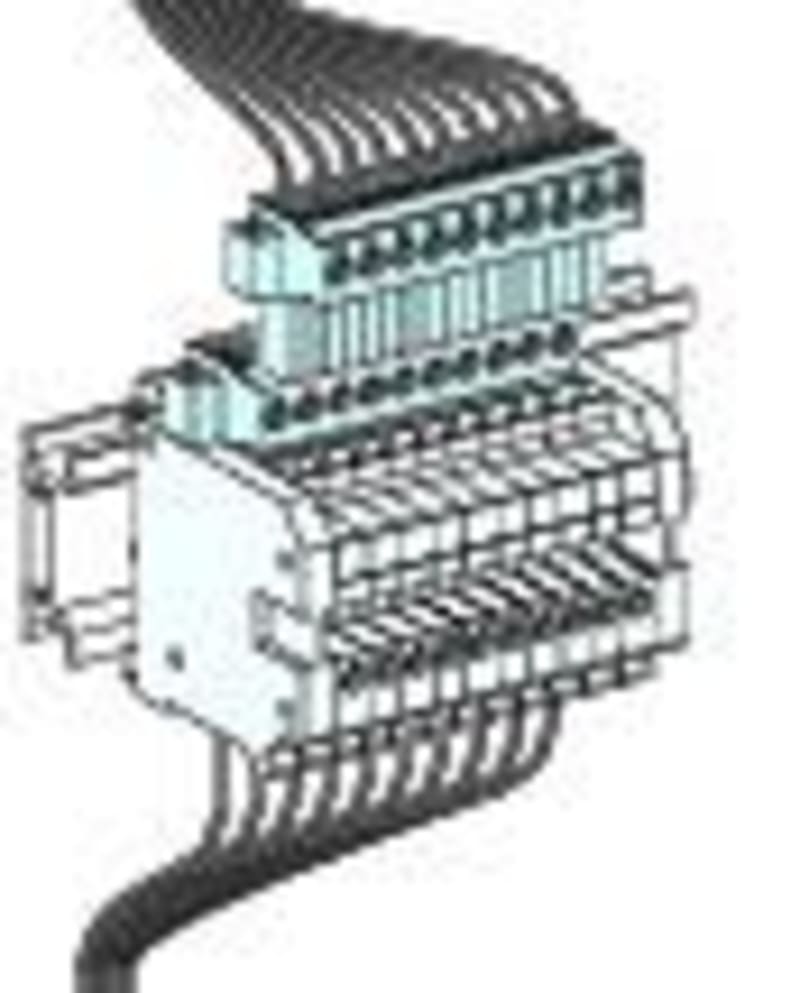

Terminal Block Cover for Auxiliary Equipment G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04228 Terminal block for auxiliary equipment, 12 A, 10 inputs, 20 outputs, 0.2-2.5 mm² PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04228
- EAN / GTIN
- 3606481932730
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Terminal block
- Product name
- Linergy TA
- Accessory / separate part category
- Connection accessory
- Range compatibility
- Linergy Linergy TA auxiliary connector; PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle
- Product compatibility
- Auxiliary connection
- Enclosure/cubicle description
- Cubicle; Floor-standing enclosure; Wall-mounted enclosure
- [Ie] rated operational current
- 12 A (40 °C) at 250 V AC conforming to IEC; 20 A (40 °C) at 300 V AC conforming to UL
- Tightening torque
- 0.5…0.6 N.m
- Connections - terminals
- Input: screw terminal 10 pin(s) 0.2…4 mm² rigid without cable end; Output: removable screw terminal block 20 pin(s) 0.2…4 mm² flexible with cable end
- Conductor material
- Copper
- Quantity per set
- Set of 1
- Height
- 50 mm
- Width
- 65 mm
- Depth
- 50 mm
- Product weight
- 0.12 kg
- Colour
- Light grey (RAL 7035)
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 50
- Warranty (in months)
- 18
- Model
- Gland nut
- Material
- Plastic
- RAL-number
- 7035
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481932730
- SAP 1200547080
- Code 82880678
