Schneider Electric LVS04220 PrismaSeT G Earth-Bar Mounting Bracket

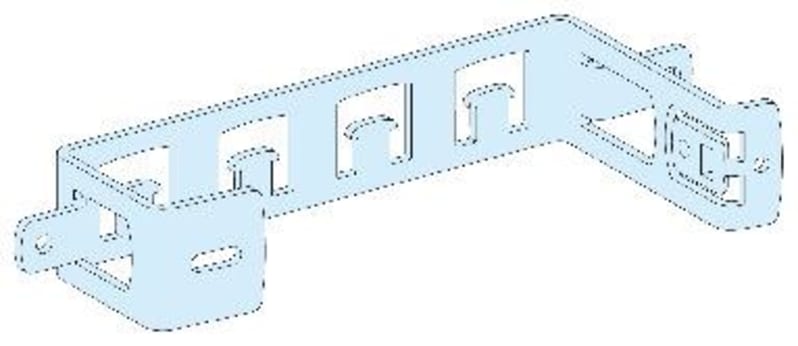

The LVS04220 is a mounting plate for the Schneider PrismaSeT G floor-standing or wall-mounted cable duct, sized for a 300 mm-wide duct. It provides a fixing point for connection earth bars and terminal blocks within the cabling compartment and is certified to IEC 61439-2 with ASTA approval. Dimensions are 215 x 35 x 82 mm; supplied in sets of two.

Manufacturer part number (MPN)

LVS04220

EAN / GTIN

3606481874504

Sales unit

pcs

Package quantity

14 pcs

Range

PrismaSeT

Range of product

PrismaSeT G

Product or component type

Mounting plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT G duct

installation description

Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm

Installed device

Connection: earth bars; Connection: terminal blocks

Standards

IEC 61439-2

Product certifications

ASTA

Width

215 mm

Height

35 mm

Depth

82 mm

Product weight

0.46 kg

Quantity per set

2

Functional unit

300 mm PrismaSeT G floor-standing duct connection earth bars; 300 mm PrismaSeT G wall-mounted duct connection earth bars; 300 mm PrismaSeT G floor-standing duct connection terminal blocks; 300 mm PrismaSeT G wall-mounted duct connection terminal blocks

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.500 cm

Package 1 Width

10.500 cm

Package 1 Length

23.000 cm

Package 1 Weight

446.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

14

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

6.530 kg

Unit Type of Package 3

P12

Number of Units in Package 3

448

Package 3 Height

70.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

213.808 kg

Country of origin

FR

Warranty (in months)

18

• EAN 3606481874504
• SAP 1200547076
• Code 82880492
