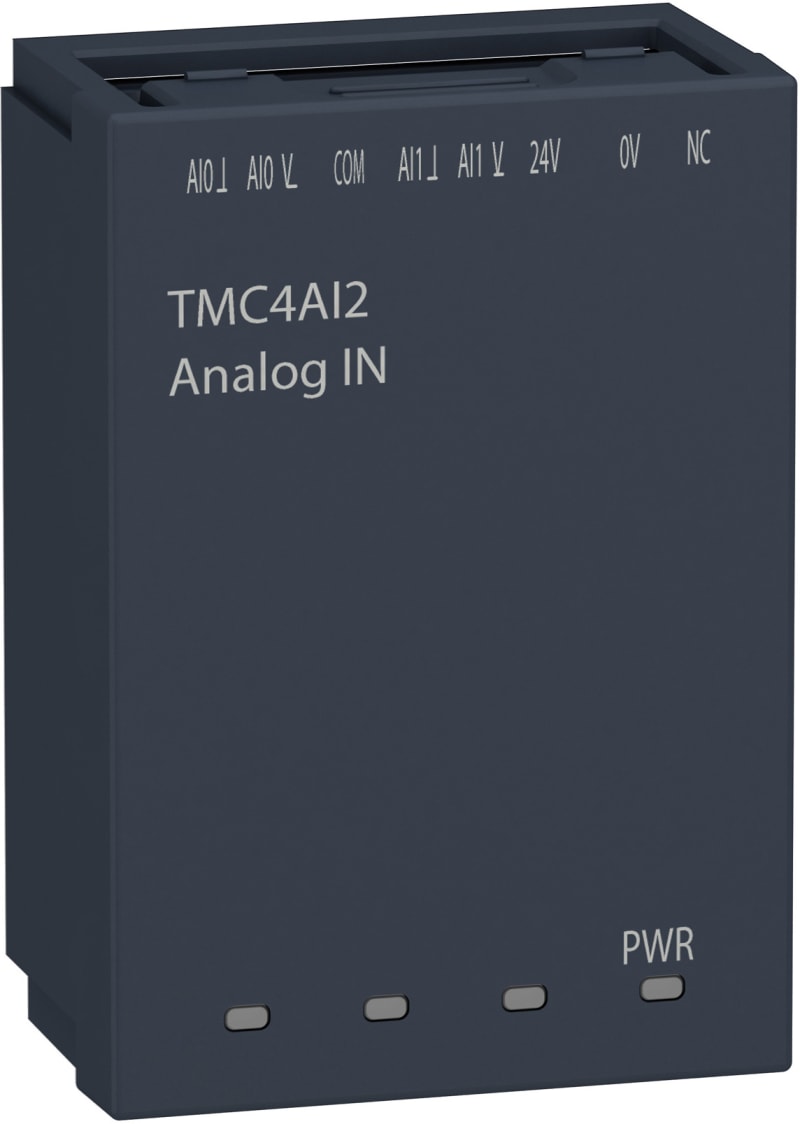

Schneider Electric Modicon M241 Analogue Input Cartridge, 2 Current Inputs

Schneider Electric TMC4AI2 is a Modicon M241 analogue input cartridge with two analogue inputs — current 4–20 mA, current 0–20 mA or voltage 0–10 V — at 12-bit resolution. Sampling duration 10 ms; absolute accuracy ±0.2 % of full scale at 25 °C; non-linearity ±0.05 % FS; cross-talk 80 dB. Spring-terminal electrical connection; supply range 20.4–28.8 V; compatible with Modicon M241C. Package quantity 27 pcs.

Manufacturer part number (MPN)

TMC4AI2 EAN / GTIN: 3606480649165 Sales unit: pcs Package quantity: 27 pcs Range of product: Modicon M241 Product or component type: Analogue input cartridge Product compatibility: Modicon M241C Analogue input number: 2 Analogue input type: current 4...20 mA; current 0...20 mA; voltage 0...10 V Analogue input resolution: 12 bits LSB value: 1 mVvoltage; 2 µAcurrent Sampling duration: 10 ms Absolute accuracy error: +/- 0.2 % of full scale at 25 °C Temperature drift: +/- 0.006 %FS/°C Repeat accuracy: +/- 0.2 %FS Non-linearity: +/- 0.05 %FS Cross talk: 80 dB Type of cable: Twisted shielded pairs cable Electrical connection: 1 x 1.5 mm² 1 spring terminal block with pitch 3.5 mm adjustment for inputs and supply Maximum cable distance between devices: Twisted shielded pairs cable: <30 m for input Insulation: Between input and internal logic at 500 V DC; Non-insulated between inputs Supply voltage limits: 20.4…28.8 V Local signalling: 1 LED (green) for PWR Height: 50 mm Depth: 21 mm Width: 34 mm Product weight: 0.055 kg Permissible continuous overload: 40 mA, analogue input type: current; 30 V, analogue input type: voltage Input impedance: = 1 MOhm voltage Immunity to microbreaks: 10 ms Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 7 cm Package 1 Width: 3.5 cm Package 1 Length: 3 cm Package 1 Weight: 74 g Unit Type of Package 2: S02 Number of Units in Package 2: 27 Package 2 Height: 15 cm Package 2 Width: 30 cm Package 2 Length: 40 cm Package 2 Weight: 2.24 kg Country of origin: ID Warranty (in months): 18 Power consumption: 1.1 W Number of analogue inputs: 2 Analogue inputs configurable: No Analogue outputs configurable: No Input, current: Yes Input, voltage: Yes Input, resistor: No Input, resistance thermometer: No Input, thermocouple: No Input signal, configurable: No Resolution of the analogue inputs: 12 Bit Output, current: No Output, voltage: No Output signal configurable: No Resolution of the analogue outputs: 12 Bit Type of electric connection: Screw connection Suitable for safety functions: No SIL according to IEC 61508: None Performance level according to EN ISO 13849-1: None Appendant operation agent (Ex ia): No Explosion safety category for gas: None Explosion safety category for dust: None
