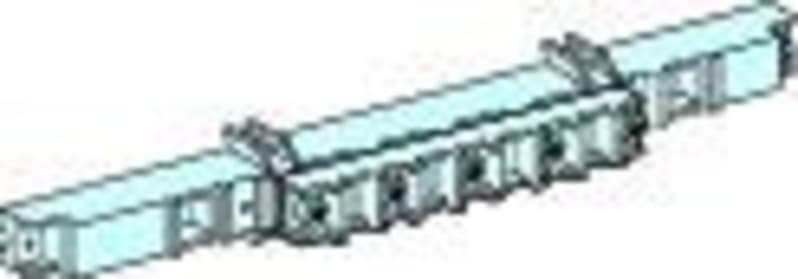

Shield clamp for Flat busbar G/P

Schneider Electric LVS04191 Shield clamp for flat busbar-Linergy BS-400A-PrismaSeT G/P.

Manufacturer part number (MPN)

LVS04191

EAN / GTIN

3606481866974

Sales unit

pcs

Package quantity

10 pcs

Range

Linergy

Range of product

Linergy

Product or component type

Busbar support

Product name

Linergy BS

Range compatibility

Linergy Linergy BS busbar; PrismaSeT PrismaSeT P enclosure; PrismaSeT PrismaSeT G enclosure

Cubicle-device connection

Linergy BS rear busbar

installation description

Cubicle - width 650 mm; Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Floor-standing enclosure - width 850 mm; Extension enclosure - width 600 mm

Permissible current

160 A - busbar cross section: 15 x 5 mm; 250 A - busbar cross section: 20 x 5 mm; 400 A - busbar cross section: 32 x 5 mm

[Icw] rated short-time withstand current

10 kA (1 s) at 160 A for 450 mm between support centres; 15 kA (1 s) at 250 A for 450 mm between support centres; 20 kA (1 s) at 400 A for 300 mm between support centres; 25 kA (1 s) at 400 A for 225 mm between support centres

Product weight

0.24 kg

Quantity per set

Set of 1

Standards

IEC 61439-2; IEC 61439-1

Product certifications

ASTA

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

280

Country of origin

FR

Warranty (in months)

18

Number of poles

4

Busbar distance

50 mm

Max. rated current

400 A

HS Code

8538.90

• EAN 3606481866974
• SAP 1200547060
• Code 82880050
