Busbar 400A L1400 G/P
Pricing
Request a quote
We reply within 24 hours
Product Description

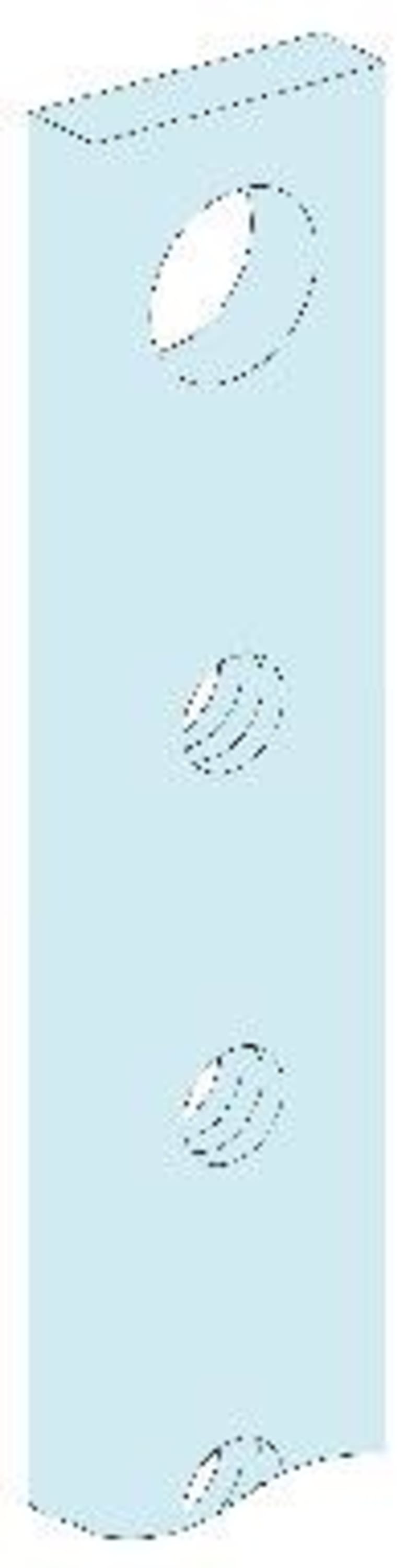

Schneider Electric LVS04173 Busbar-Linergy BS BB-trailing edge 400A -4 pcs-length 1400mm- PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04173
- EAN / GTIN
- 3606481870292
- Sales unit
- pcs
- Rated current
- 400 A
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Busbar
- Product name
- Linergy BS
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure
- Busbar description
- Flat bar
- Quantity per set
- Set of 4
- Installation direction
- Vertical, operating position: rear
- installation description
- Cubicle - width 650 mm; Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm
- [Ie] rated operational current
- 400 A at 35 °C
- [Icw] rated short-time withstand current
- 20 kA (1 s) for 4 supports
- [Ipk] rated peak withstand current
- 55 kA
- Busbar cross section
- 32 x 5 mm
- Length
- 1400 mm
- Width
- 32 mm
- Depth
- 5 mm
- Product weight
- 8 kg
- Colour
- Natural
- Type of busbar connection
- M6 threaded hole
- Connection pitch
- Connection each 25 mm
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.600 cm
- Package 1 Width
- 17.000 cm
- Package 1 Length
- 154.000 cm
- Package 1 Weight
- 8.000 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 56
- Package 2 Height
- 29.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 461.500 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Flat
- Height
- 5 mm
- Flexible
- No
- Surface protection
- Untreated
- Rated current In
- 400 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481870292
- SAP 1200547057
- Code 82879906
Product Documentation
