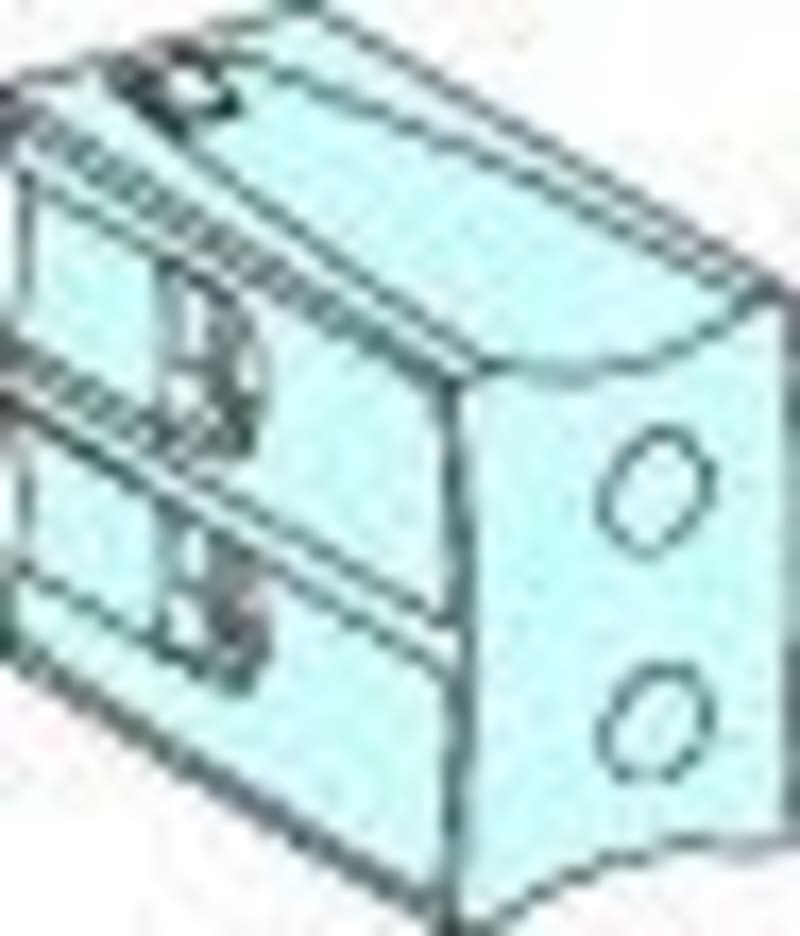

TERMINALS-3P-2X35MM2-LINERGY DP(Polyblock) (LVS04155)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04155 Terminals-3P-2x35mm2-Linergy DP(Polyblock)-250A-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04155
- EAN / GTIN
- 3606481883315
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Conductor cross-section
- 35 mm²
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Distribution block
- Product name
- Linergy DP
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure; Linergy Linergy DP distribution block; ComPact ComPact NSX; ComPact ComPacT INS; ComPact Compact INV
- Accessory / separate part category
- Current distribution accessory
- IP degree of protection
- IPxx B
- Mounting support
- Mounting plate
- Installed device
- EasyPact: CVS100...250; ComPact: NSX100...250; ComPact: INV100...250; ComPact: INS100...160; ComPact: INS250
- Poles description
- 3P
- [Ue] rated operational voltage
- 690 V AC
- [Ui] rated insulation voltage
- 750 V AC
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ie] rated operational current
- 250 A at 40 °C
- [Icw] rated short-time withstand current
- 8.5 kA for 1 s
- [Ipk] rated peak withstand current
- 30 kA
- Connections - terminals
- Supply: direct connection120 mm²; Distribution: screw terminal, 2 x 35 mm²
- Product weight
- 0.235 kg
- Colour
- Anthracite grey (RAL 7016)
- Pollution degree
- 3
- Overvoltage category
- III
- Resistance to incandescent wire
- 960 °C conforming to IEC 60695-2-11
- Standards
- IEC 60947-7-1; IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure
- Product certifications
- ASTA
- Ambient air temperature for operation
- -25…55 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Warranty (in months)
- 18
- Nominal current
- 250 A
- Connection type
- Screwing
- Number of poles
- 3
- Contact safe
- Yes
- Suitable for fine strand conductors
- No
- Suitable for solid conductors
- No
- Suitable for stranded conductors
- No
- Suitable for fine strand conductors without cable end sleeve
- No
- Suitable for extra fine-strand conductors
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481883315
- SAP 1200547049
- Code 82879373
