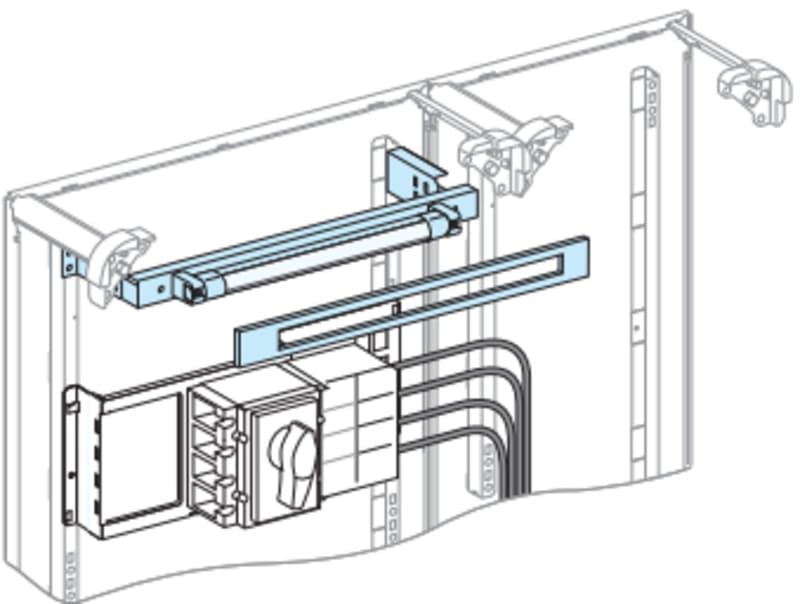

Panel Light-PrismaSeT G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08964 Panel Light-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08964
- EAN / GTIN
- 3606481869623
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P; PrismaSeT G
- Product or component type
- Switchboard lighting kit
- Accessory / separate part category
- Lighting accessory
- Range compatibility
- PrismaSeT PrismaSeT P enclosure; PrismaSeT PrismaSeT G enclosure
- Provided equipment
- 1 door contact; 1 front plate with cut-out; 1 base; 1 neon tube
- mounting mode
- By screws
- installation description
- Cubicle - width 650 mm; Cubicle - width 650 + 150 mm; Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm
- Supply voltage
- 220/240 V
- Network type
- AC
- Rated power in W
- 8 W
- Material
- Steel
- Quantity per set
- Set of 1
- Length
- 450 mm
- Height
- 50 mm
- Product weight
- 1.22 kg
- IP degree of protection
- IP30
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.800 cm
- Package 1 Width
- 15.000 cm
- Package 1 Length
- 52.400 cm
- Package 1 Weight
- 1.560 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 120
- Package 2 Height
- 96.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 201.200 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Mounting method
- Screw mounting
- Lamp power
- 8 W
- Voltage type
- AC
- With socket outlet
- No
- With on/off switch
- No
- With light sensor
- Yes
- Lamp type
- Fluorescent lamp
- Suitable for 19 inch mounting
- No
- Type of electric connection
- Plug/connector
- Rated voltage
- 220–240 V
- Degree of protection (IP)
- IP30
Standards & Compliance
- HS Code
- 8516.80
Cross References
- EAN 3606481869623
- SAP 1200547447
- Code 82879661
