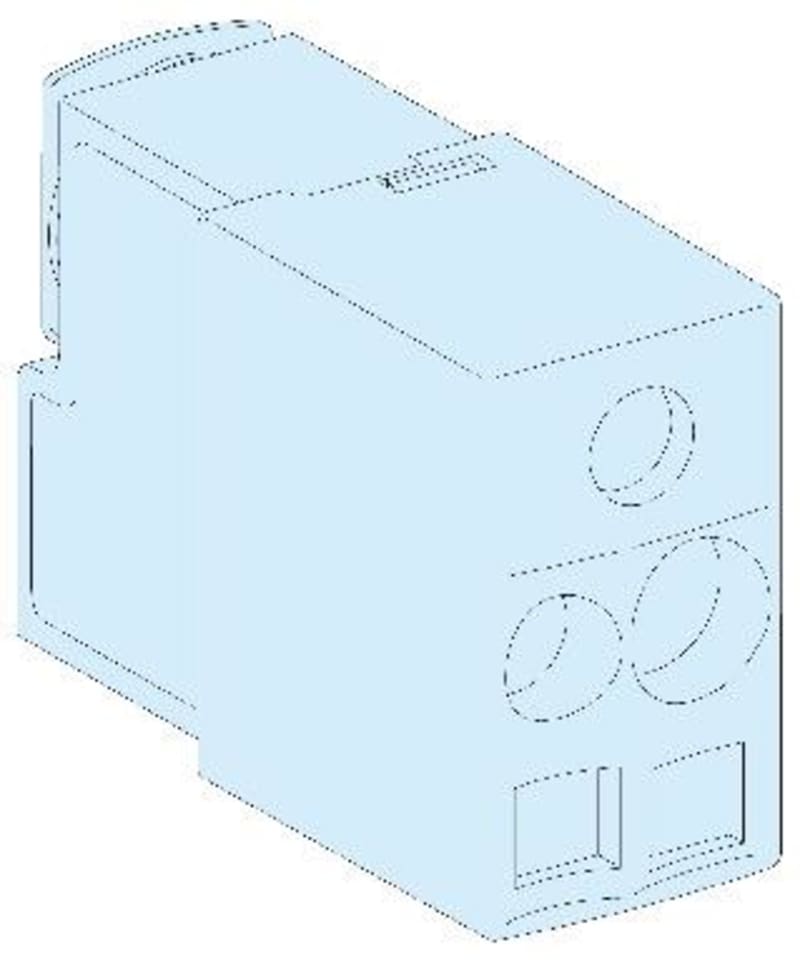

Schneider Electric Tap-off terminal, Linergy BW, spring terminals 1 x 6mm² + 1 x 10mm², IPXXB, set of 12 LVS04151
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04151 Terminals Linergy BW(Powerclip)-set a 12-1 x 6mm² + 1 x 10mm², IPXXB -PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04151
- EAN / GTIN
- 3606481866738
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Conductor cross-section
- 10 mm²
- Range
- Linergy
- Range of product
- Linergy BW
- Product or component type
- Tap-off unit
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure; Linergy Linergy BW busbar
- Accessory / separate part category
- Connection accessory
- Product destination
- Busbar
- Quantity per set
- Set of 12
- installation description
- Cubicle; Floor-standing enclosure; Wall-mounted enclosure; Pack enclosure
- [Ie] rated operational current
- 55 A
- Connections - terminals
- 1 spring terminal 6 mm²; 1 spring terminal 10 mm²
- Product weight
- 0.36 kg
- IP degree of protection
- IPxx B
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 600
- Country of origin
- PL
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- Yes
Standards & Compliance
- HS Code
- 8547.20
Cross References
- EAN 3606481866738
- SAP 1200547047
- Code 82879350
