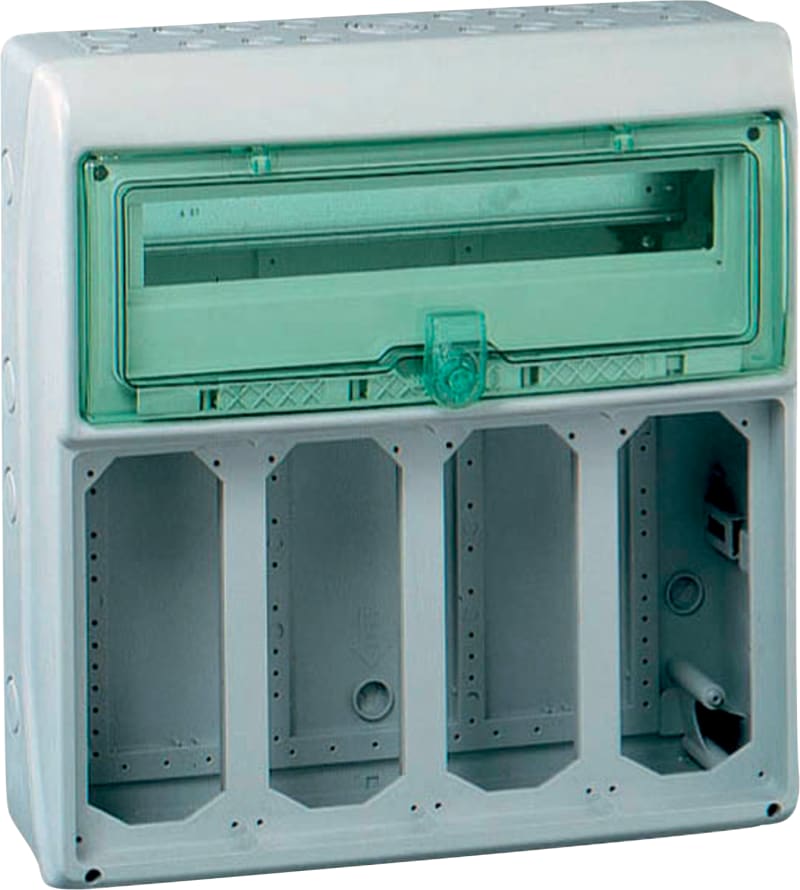

KAEDRA 1X18MOD, 4 openings 103X225
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 13188 Kaedra - for socket outlet - 4 outlet - 1 x 18 modules - 1 terminal block.
Technical Specifications
- Manufacturer part number (MPN)
- 13188
- EAN / GTIN
- 3303430131885
- HS code
- 8536.90
- Sales unit
- pcs
- Range
- Mureva
- Product name
- Mureva Enclosure
- Product or component type
- Weatherproof enclosure
- enclosure type
- Enclosure for power outlet
- Mounting plate description
- Without mounting plate
- Enclosure mounting
- Surface
- 9 mm pitches
- 36
- Number of 18 mm modules per row
- 18
- Total number of 18 mm modules
- 18
- Number of horizontal rows
- 1
- Electrical insulation class
- Double insulation; Class II
- Number of openings of interface
- 4
- Number of plates
- 1 for 65 x 65 or 75 x 75 power outlets
- Provided equipment
- 2 wiring strap; 1 plate for 65 x 65 or 75 x 75 power outlet
- Type of front cover
- Transparent
- Power dissipation in W
- 39 W
- [In] rated current
- 90 A
- Type of rail
- DIN
- Number of pre-cutouts PG ISO
- 17
- Locking options description
- Optional keylock
- Enclosure material
- Housing: self-extinguishing polymer
- Product weight
- 3.2 kg
- Base dimension
- 103 x 225 mm
- Width
- 448 mm
- Height
- 460 mm
- Depth
- 160 mm
- Internal depth
- 91 mm
- Colour
- Door: transparent green; Enclosure: light grey (RAL 7035)
- Standards
- IEC 60670-1; IEC 60670-24; EN 62262; EN 50262; IEC 60695-2-1
- Fire resistance
- 650 °C conforming to IEC 60695-2-1
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK09 conforming to EN 50102
- Environmental characteristics (UV)
- UV resistant: class 3 conforming to ISO 4582:2010; Ultraviolet degradation test conforming to ISO 4892-2:2013
- Overvoltage category
- II
- Ambient air temperature for operation
- -25…40 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 47.000 cm
- Package 1 Width
- 46.800 cm
- Package 1 Length
- 16.800 cm
- Package 1 Weight
- 3.439 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 18
- Package 2 Height
- 80.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 67.980 kg
- Country of origin
- IT
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303430131885
- SAP 1000022730
- Code 8178109
Product Documentation
