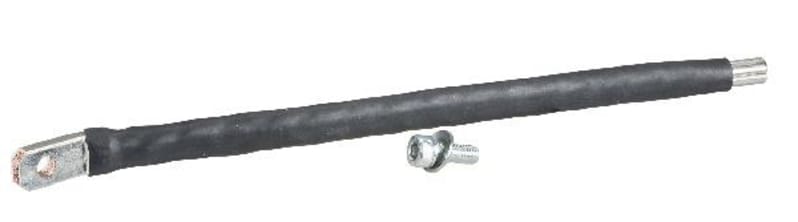

Connectors-4 PCS-125A-L230MM-PRISMA G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04145 Connections-4 pcs-125A-L230mm-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04145
- EAN / GTIN
- 3606481867384
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Connection
- Product name
- Linergy BW
- Standards
- IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy BS busbar; Linergy FH comb busbar
- Poles description
- 4P
- installation description
- Cubicle - width 650 mm; Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Floor-standing enclosure - width 850 mm; Pack enclosure - width 550 mm
- Installed device
- Multi9: NG125; ComPact: INS125
- [Ie] rated operational current
- 125 A
- Material
- Copper; Plastic
- Colour
- Copper; Black (RAL 9005)
- Length
- 230 mm
- Product weight
- 0.42 kg
- Quantity per set
- Set of 4
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 80
- Warranty (in months)
- 18
- RAL-number
- 9005
- Country of origin
- France
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481867384
- SAP 1200546594
- Code 82880044
