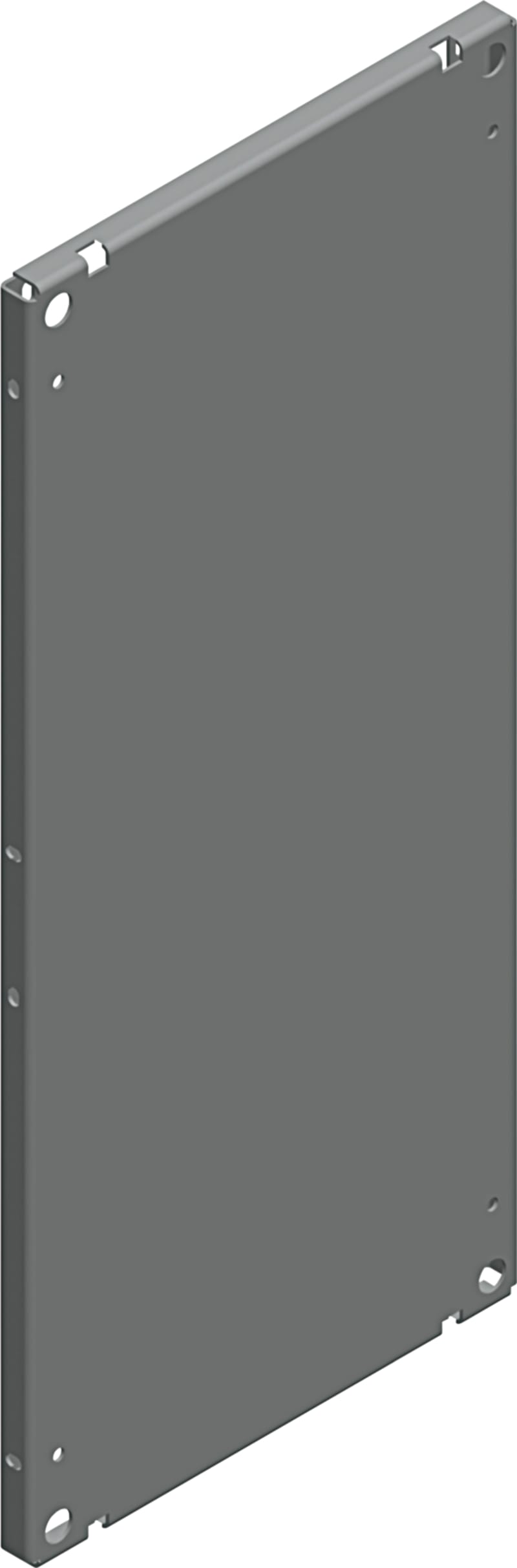

Mounting Plate 12X10
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMP1210 Mounting plate 12X10.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMP1210
- EAN / GTIN
- 3606485130668
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- - H: 1200 mm W: 1000 mm
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT SF SF; PanelSeT SM; PanelSeT SFX; PanelSeT SMX
- Device composition
- 1 mounting plate; 2 sliding shoes
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Fixing mode
- By fixing brackets
- Maximum load
- 300 kg/m²
- Permanent permissible load
- 500 kg intermediate position; 600 kg back of the enclosure
- Height
- Fixing centers: 1050 mm; Nominal: 1200 mm; Real: 1097 mm
- Width
- Fixing centers: 850 mm; Nominal: 1000 mm; Real: 896 mm
- Depth
- 27 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 110.500 cm
- Package 1 Width
- 90.500 cm
- Package 1 Length
- 3.500 cm
- Package 1 Weight
- 23.000 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 20
- Package 2 Height
- 83.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 121.000 cm
- Package 2 Weight
- 490.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Galvanised
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606485130668
- SAP 1000089199
- Code 8838846
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric variable speed drive, Altivar 212, 11kW, 15hp, 480V, 3 phases, with EMC class C2, IP55 ATV212WD11N4
Schneider Electric
Side panel PrismaSeT G 24M IP30
LVS01046
Schneider Electric
Schneider Electric transfer switch, TransferPacT Active automatic, 100A, 400V, 4P, LCD,frame 100A TA10D4L1004TPE
Schneider Electric
PUSH-BUTTON.CAP Unmarked Black
ZBA72
Schneider Electric
Push-Button Head Pressure/Pressure BLUE
ZB4BH06
Schneider Electric
Schneider Electric Marker, Linergy TR cable ends, yellow, clipin type, character 8, Numeric, set of 200 AR1MA018
Schneider Electric
Schneider Electric flush mounted black selector switch head knurled knob 3 pos return r to c ZB5FD89
Schneider Electric

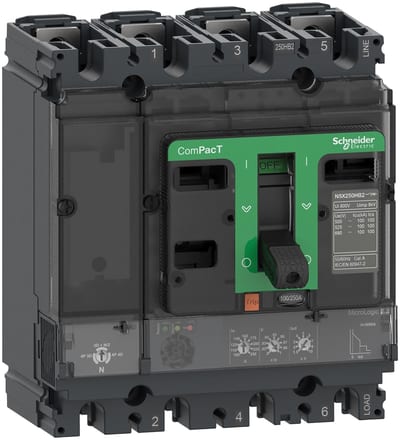

Schneider Electric Circuit breaker, ComPacT NSX250HB1, 75KA/690VAC, 4 poles, MicroLogic 2.2 trip unit 250A C25V42D250
