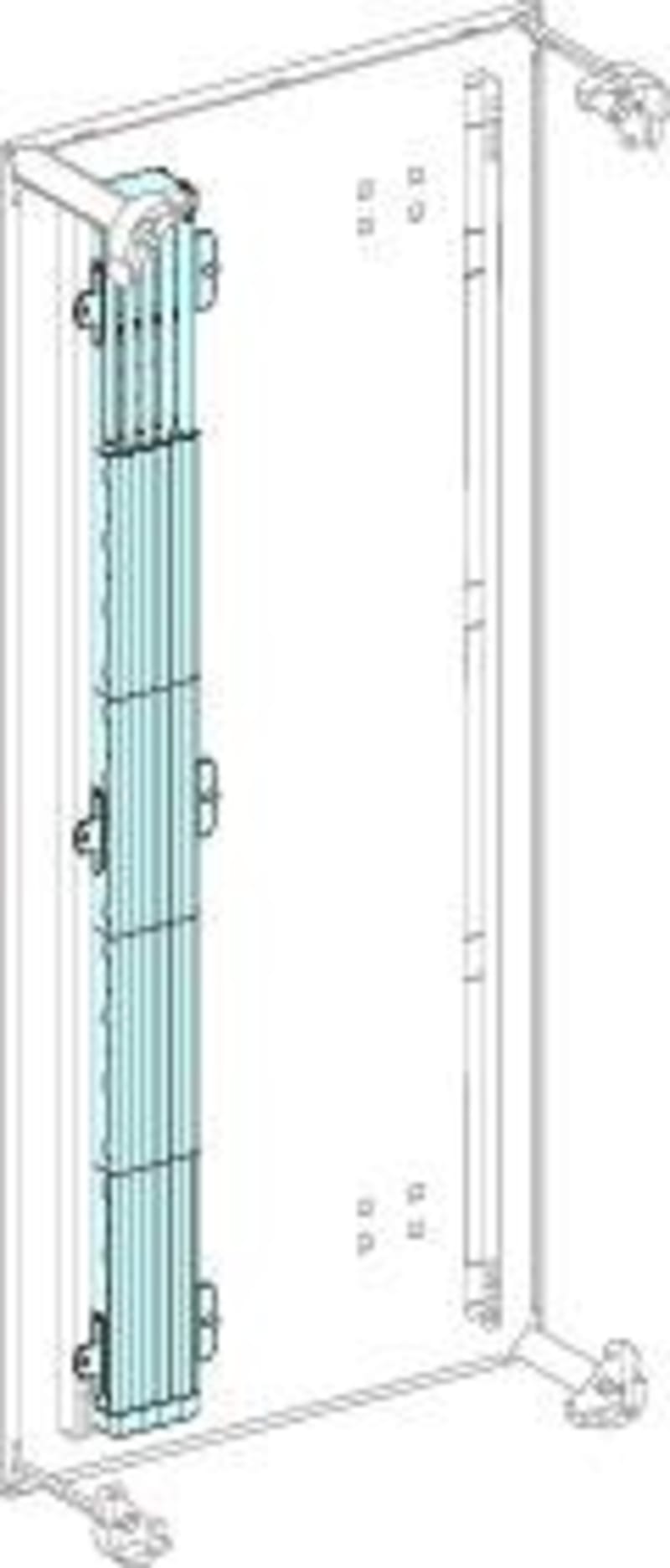

Busbar Linergy BW160A 3P L1000 G/P

Schneider Electric LVS04111 Busbar Linergy BW (Powerclip)-insulated busbar package for PrismaSeT G/P160A 3P length 1000mm.

Manufacturer part number (MPN)

LVS04111

EAN / GTIN

3606481871794

Sales unit

pcs

Number of poles

3P

Range

Linergy

Range of product

Linergy

Product or component type

Busbar

Product name

Linergy BW

Range compatibility

PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure

IP degree of protection

IPxx B

Busbar description

Insulated bar

Quantity per set

Set of 1

Poles description

3P

Installation direction

Vertical, operating position: rear

installation description

Cubicle - width 650 mm; Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm; Pack enclosure

[Ui] rated insulation voltage

750 V AC

[Uimp] rated impulse withstand voltage

8 kV

[Ie] rated operational current

160 A

[Icw] rated short-time withstand current

10 kA (1 s)

[Ipk] rated peak withstand current

30 kA

I²t on activation

100000 kA².s

Permissible current

160 A

Length

1000 mm

Height

85 mm

Depth

45 mm

Product weight

3.32 kg

Type of busbar connection

M6 threaded hole

Connection pitch

Connection each 25 mm

Standards

IEC 61439-1; IEC 61439-2

Product certifications

ASTA

Mechanical robustness

Seismic tests structure reinforcement - 2.5G conforming to IEC 60068-2-57

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.500 cm

Package 1 Width

13.000 cm

Package 1 Length

112.500 cm

Package 1 Weight

3.574 kg

Unit Type of Package 2

P12

Number of Units in Package 2

18

Package 2 Height

28.000 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

72.500 kg

Warranty (in months)

18

Model

Flat

Flexible

No

Surface protection

Untreated

Rated current In

160 A

Country of origin

France

HS Code

8544.49

• EAN 3606481871794
• SAP 1200546578
• Code 82880038
