Schneider Electric

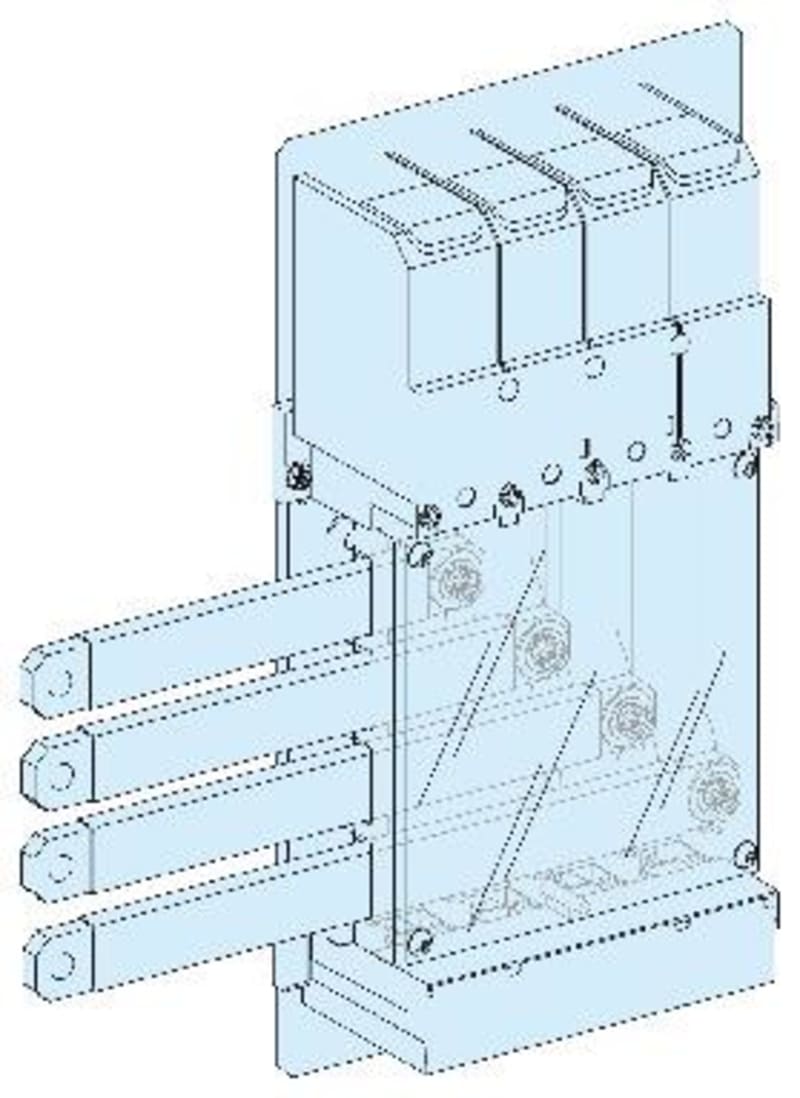

Innkom. Connection NSX400-630 Horizontal G/P
Part numberLVS04076EAN / GTIN3606481867377
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04076 Innkommende tilkoblingsblokk-top/bottom-NSX400/630, and Linergy BW(Powerclip)-cable compartment-4P-PrismaSeT G.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04076
- EAN / GTIN
- 3606481867377
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Incoming connection block
- product name
- PrismaSeT PrismaSeT G enclosure
- Accessory / separate part category
- Connection accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Location of connection
- Bottom; Top
- installation description
- Floor-standing enclosure - width 850 mm; Floor-standing enclosure + duct - width 600 + 300 mm; Wall-mounted enclosure + duct - width 600 + 300 mm
- Installed device
- ComPact: fixed NSX400 without earth leakage protection - control: toggle horizontal installation; ComPact: fixed NSX630 without earth leakage protection - control: toggle horizontal installation
- [Ie] rated operational current
- 630 A
- Product weight
- 7.72 kg
- Quantity per set
- Set of 1
- functional unit
- 850 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed toggle horizontal 3P 1 connection block 9; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed toggle horizontal 4P 1 connection block 9; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX630 without fixed toggle horizontal 3P 1 connection block 9; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX630 without fixed toggle horizontal 4P 1 connection block 9; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed toggle horizontal 3P 1 connection block 6; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX400 without fixed toggle horizontal 4P 1 connection block 6; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX630 without fixed toggle horizontal 3P 1 connection block 6; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX630 without fixed toggle horizontal 4P 1 connection block 6; 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSX400 without fixed toggle horizontal 3P 1 connection block 9; 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSX400 without fixed toggle horizontal 3P 1 connection block 9; 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSX400 without fixed toggle horizontal 4P 1 connection block 9; 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSX400 without fixed toggle horizontal 4P 1 connection block 9; 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSX400 without fixed toggle horizontal 3P 1 connection block 6; 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSX400 without fixed toggle horizontal 3P 1 connection block 6; 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSX400 without fixed toggle horizontal 4P 1 connection block 6; 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSX400 without fixed toggle horizontal 4P 1 connection block 6; 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSX630 without fixed toggle horizontal 3P 1 connection block 9; 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSX630 without fixed toggle horizontal 3P 1 connection block 9; 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSX630 without fixed toggle horizontal 4P 1 connection block 9; 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSX630 without fixed toggle horizontal 4P 1 connection block 9; 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSX630 without fixed toggle horizontal 3P 1 connection block 6; 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSX630 without fixed toggle horizontal 3P 1 connection block 6; 600 + 300 mm PrismaSeT G floor-standing enclosure + duct ComPact NSX630 without fixed toggle horizontal 4P 1 connection block 6; 600 + 300 mm PrismaSeT G wall-mounted enclosure + duct ComPact NSX630 without fixed toggle horizontal 4P 1 connection block 6
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 12.500 cm
- Package 1 Width
- 23.500 cm
- Package 1 Length
- 43.500 cm
- Package 1 Weight
- 7.532 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 20
- Package 2 Height
- 50.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 164.640 kg
- Country of origin
- FR
- Warranty (in months)
- 18
