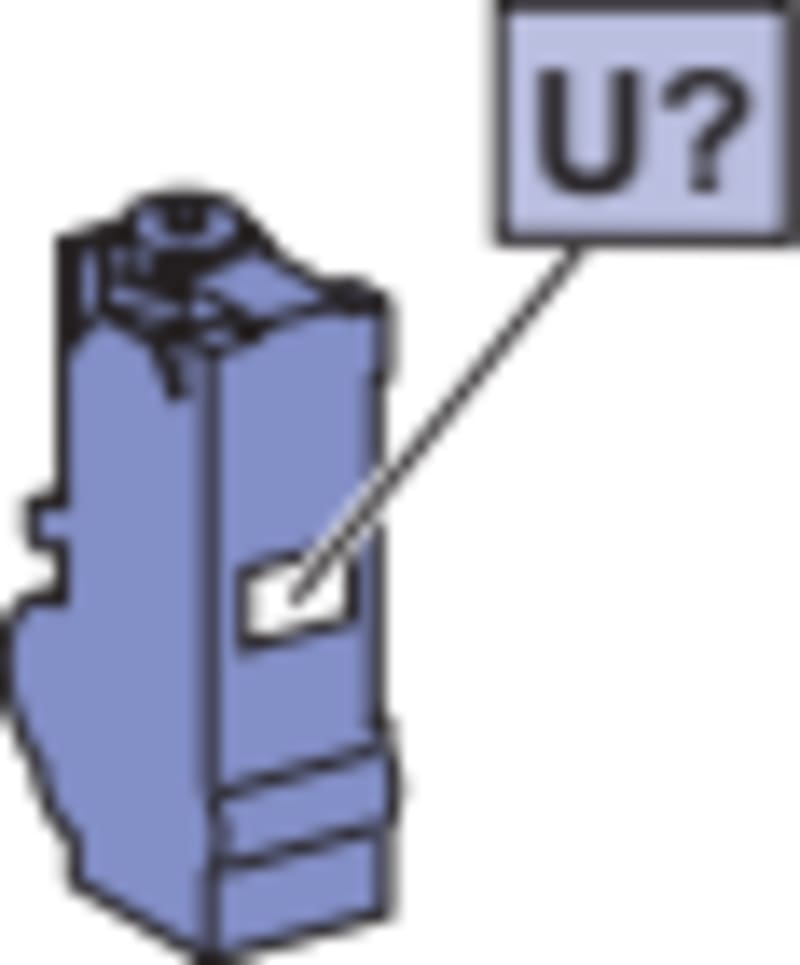

Schneider Electric communicating motor mechanism module (MCH), fixed ComPact NS630B to NS1600, 48/60 VDC, 48 VAC 50/60 Hz
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 33698 Motor operator Comm.. 048/060 V.
Technical Specifications
- Manufacturer part number (MPN)
- 33698
- EAN / GTIN
- 3303430336983
- Sales unit
- pcs
- Device short name
- MCH
- Product or component type
- Motor mechanism
- Device application
- Automatic spring charging
- Range compatibility
- ComPacT NS630b...1600 circuit breaker
- Control type
- Communicating
- [Uc] control circuit voltage
- 48 V AC 50/60 Hz; 48...60 V DC
- circuit breaker mounting mode
- Fixed
- circuit breaker frame rated current
- 1600 A; 800 A; 630 A; 1000 A; 1250 A
- Control signal type
- Impulse; Maintained
- circuit breaker response time
- 60 ms +/- 10 ms open; 60 ms +/- 10 ms closed
- Maximum operating frequency
- <= 3 cycles per minute
- Maximum power consumption in VA
- 180 VA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.0 cm
- Package 1 Width
- 13.0 cm
- Package 1 Length
- 18.0 cm
- Package 1 Weight
- 1.36 kg
- Warranty (in months)
- 18
- Rated control supply voltage AC 50 Hz
- 48 V
- Rated control supply voltage AC 60 Hz
- 48 V
- Rated control supply voltage DC
- 48–60 V
- Type of switch drive
- Motor drive
- Voltage type for actuating
- AC/DC
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3303430336983
- SAP 1200722428
- Code 83837251
Product Documentation
