Front with Uts 96X96 B:300 3M PrismaSeT G/P
Pricing
Request a quote
We reply within 24 hours
Product Description

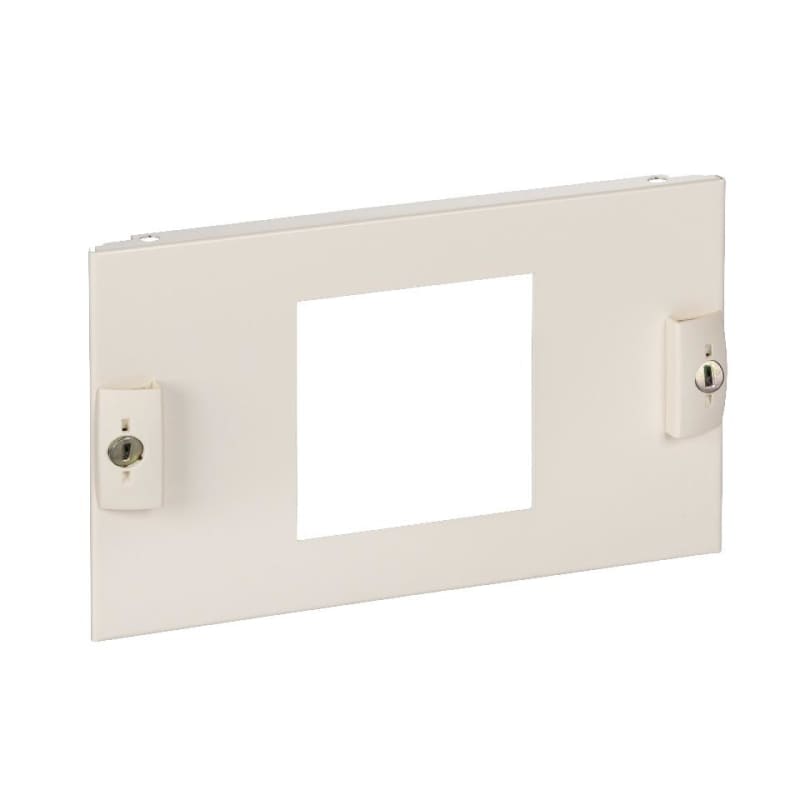

Schneider Electric LVS03923 Front plate with 1 hole 96x96 mm-width 300 mm, 3 modules-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03923
- EAN / GTIN
- 3606481932952
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G duct; PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- Human-switchboard interface: 96 x 96 mm device; Human-switchboard interface: HSI; PowerLogic: PM400...800; Enerlin'X: FDM121
- Enclosure/cubicle description
- Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm; Cubicle duct - width 400 mm depth 400 mm
- Number of vertical modules [50 mm]
- 3
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Height
- 150 mm
- Product weight
- 0.62 kg
- Quantity per set
- Set of 1
- functional unit
- 400 mm 400 mm PrismaSeT P cubicle human-switchboard interface 96 x 96 mm device 1 3; 400 mm 400 mm PrismaSeT P cubicle human-switchboard interface HSI 1 3; 400 mm 400 mm PrismaSeT P cubicle PowerLogic 1 3; 300 mm PrismaSeT G floor-standing duct human-switchboard interface 96 x 96 mm device 1 3; 300 mm PrismaSeT G wall-mounted duct human-switchboard interface 96 x 96 mm device 1 3; 300 mm PrismaSeT G floor-standing duct human-switchboard interface HSI 1 3; 300 mm PrismaSeT G wall-mounted duct human-switchboard interface HSI 1 3; 300 mm PrismaSeT G floor-standing duct PowerLogic 1 3; 300 mm PrismaSeT G wall-mounted duct PowerLogic 1 3; 400 mm 400 mm PrismaSeT P cubicle Enerlin'X FDM121 1 3; 300 mm 10 G floor-standing duct Enerlin'X FDM121 1 3; 300 mm PrismaSeT G wall-mounted duct Enerlin'X FDM121 1 3
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 32
- Warranty (in months)
- 18
- Width
- 250 mm
- Suitable for enclosure building width
- 300 mm
- Material
- Steel
- Number of height units
- 3
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481932952
- SAP 1200546774
- Code 82879607
