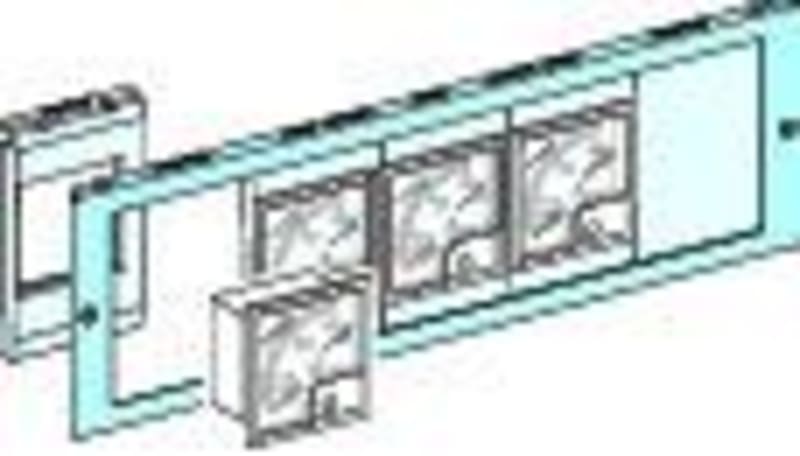

Front plate 72X72 and 96X96 PrismaSeT G/P

Schneider Electric LVS03904 Front plate with cut-out for 72X72 and 96X96 Instrumenter for PrismaSeT G/P-3 modules.

Manufacturer part number (MPN)

LVS03904

EAN / GTIN

3606481871664

Sales unit

pcs

Package quantity

10 pcs

Range

PrismaSeT

Range of product

PrismaSeT G; PrismaSeT P

Product or component type

Front plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle

Type of front plate

Cut-out

Installed device

Vigirex: RH10; Vigirex: RH21; Vigirex: RH99; Human-switchboard interface: 72 x 72 mm device; Human-switchboard interface: 96 x 96 mm device; Human-switchboard interface: HSI; PowerLogic: PM400...800; Enerlin'X: FDM121

Enclosure/cubicle description

Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm

Number of vertical modules [50 mm]

3

Standards

IEC 61439-1; IEC 61439-2

Product certifications

ASTA

Material

Steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Matt; Textured

Colour

White (RAL 9003)

Width

500 mm

Height

150 mm

Product weight

0.32 kg

Quantity per set

Set of 1

functional unit

600 mm PrismaSeT G floor-standing enclosure human-switchboard interface 72 x 72 mm device 5 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface 72 x 72 mm device 5 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface 72 x 72 mm device 5 3; 600 mm PrismaSeT G floor-standing enclosure human-switchboard interface 96 x 96 mm device 4 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface 96 x 96 mm device 4 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface 96 x 96 mm device 4 3; 600 mm PrismaSeT G floor-standing enclosure human-switchboard interface HSI 5 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface HSI 5 3; 600 mm PrismaSeT G floor-standing enclosure human-switchboard interface HSI 4 3; 600 mm PrismaSeT G wall-mounted enclosure human-switchboard interface HSI 4 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface HSI 5 3; 650 mm 400 mm PrismaSeT P cubicle human-switchboard interface HSI 4 3; 600 mm PrismaSeT G floor-standing enclosure PowerLogic 4 3; 600 mm PrismaSeT G wall-mounted enclosure PowerLogic 4 3; 650 mm 400 mm PrismaSeT P cubicle PowerLogic 4 3; 600 mm PrismaSeT G floor-standing enclosure Vigirex 5 3; 600 mm PrismaSeT G wall-mounted enclosure Vigirex 5 3; 650 mm 400 mm PrismaSeT P cubicle Vigirex 5 3; 600 mm PrismaSeT G floor-standing enclosure Enerlin'X FDM121 4 3; 600 mm 19 G wall-mounted enclosure Enerlin'X FDM121 4 3; 650 mm 400 mm PrismaSeT P cubicle Enerlin'X FDM121 4 3

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

40

Warranty (in months)

18

Number of height units

3

Surface finishing

Powder coating

Country of origin

France

HS Code

7326.90

• EAN 3606481871664
• SAP 1200546767
• Code 82880227
