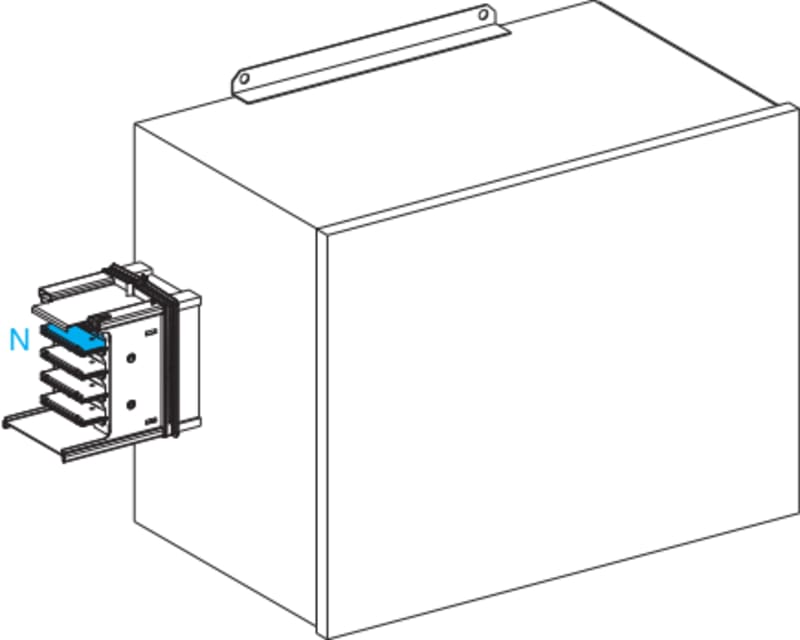

End feed PURE WHITE 800-1000A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KSA1000ABD4 End feed H 800-1000A.
Technical Specifications
- Manufacturer part number (MPN)
- KSA1000ABD4
- EAN / GTIN
- 3606480003462
- Sales unit
- pcs
- Range of product
- Canalis
- Product name
- KS
- Device short name
- KSA
- Product compatibility
- Canalis KSA busbar trunking 500…1000 A
- Offer type
- Classic; Rising main
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 1000 A
- [Ue] rated operational voltage
- 230...690 V
- Number of circuits
- 1
- Busbar trunking polarity
- 3L + N + PE
- Protection type
- Without protection
- Control type
- Without
- Colour
- White (RAL 9001)
- Provided equipment
- End cover
- Mounting location
- Right; Left
- mounting mode
- By screws
- Mounting support
- Busbar
- Body material
- Metal
- Connections - terminals
- Lug for 240 mm² flexible; Lug for 300 mm² rigid
- Width
- 753 mm
- Depth
- 370 mm
- Height
- 457 mm
- Product weight
- 25 kg
- Standards
- IEC 61439-1; IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 40.500 cm
- Package 1 Width
- 53.000 cm
- Package 1 Length
- 78.000 cm
- Package 1 Weight
- 30.600 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9001
- Number of poles
- 5
- Length
- 753 mm
- Degree of protection (IP)
- IP55
- Power supply position
- End
- Rated voltage AC 50 Hz
- 230–690 V
- Rated current AC 50 Hz
- 1000 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480003462
- SAP 1200721729
- Code 83832417
Product Documentation
More from Schneider Electric
Schneider Electric

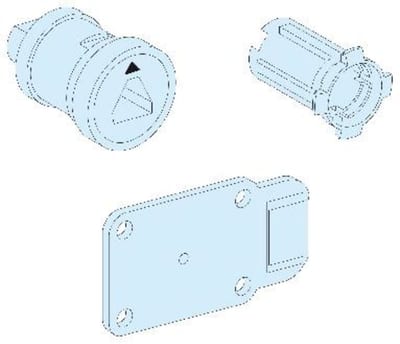

Res.parts lock IP55 PrismaSeT G
LVS01249
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250HB2, 100KA/690VAC, 4 poles, MicroLogic 6.2E trip unit 100A C25W46E100
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 32A, 115V AC 50/60Hz coil, snap-in terminals LC1D32AFE7
Schneider Electric

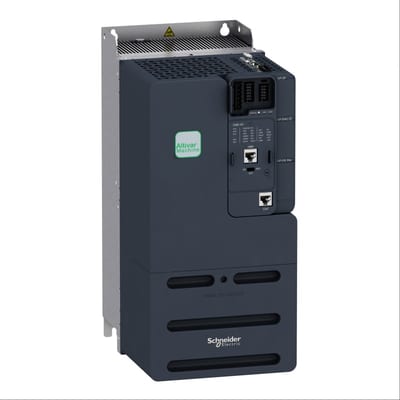

Schneider Electric variable speed drive - 15KW- 400V - 3 phases - ATV340 ATV340D15N4
Schneider Electric

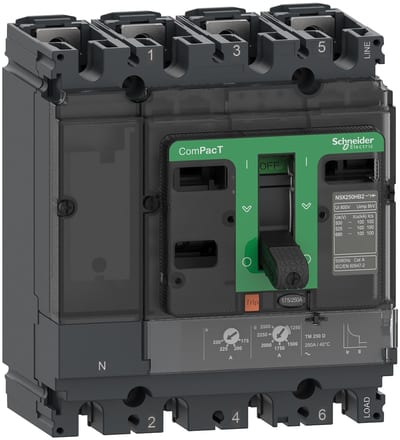

Schneider Electric Circuit breaker, ComPacT NSX250HB2, 100KA/690VAC, 4 poles 4D (neutral fully protected), TMD trip unit 250A C25W4TM250
Schneider Electric

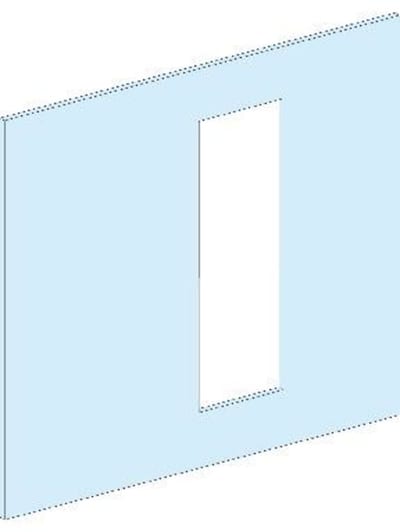

Front plate INS320/630 Omk.mono Horizontal P
LVS03661
Schneider Electric

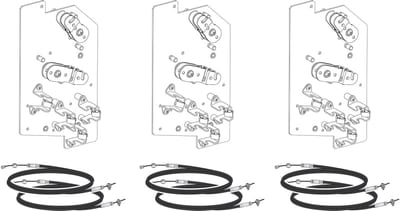

Schneider Electric LV848610SP Cable Interlock Masterpact MTZ2/MTZ3 3-Source
Schneider Electric

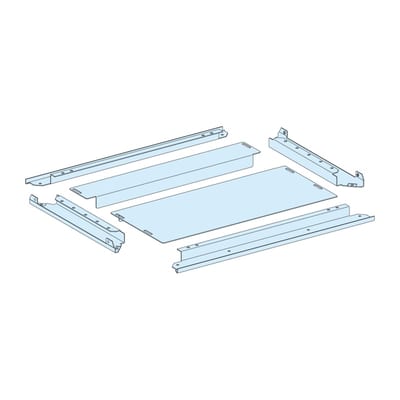

Bunnpl. 2DELT IP30 PrismaSeT P B650 D400
