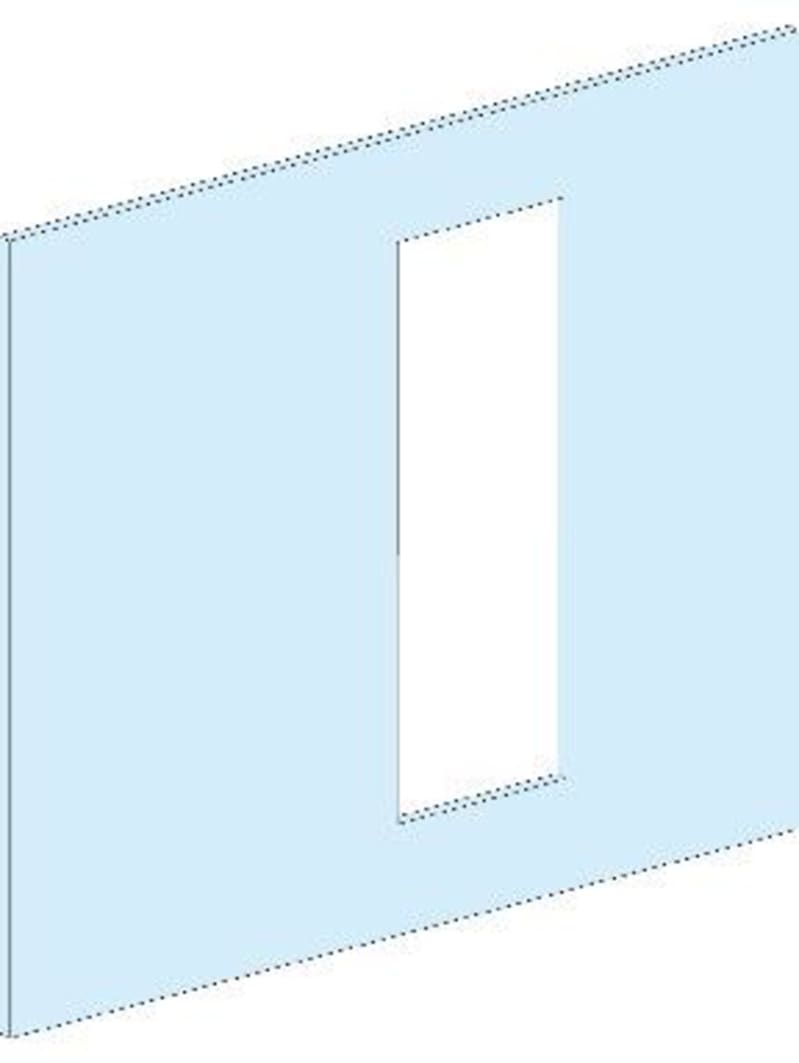

Front plate INS320/630 Omk.mono Horizontal P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03661 Front plate for IN320-630-Manual Changeover switch-monoblokk-Horizontal mounting PrismaSeT P-650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03661
- EAN / GTIN
- 3606481872449
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed INS320...630 source changeover - control: direct front rotary handle - horizontal installation
- Poles description
- 2 x 3P: mounting plate support: INS320...630 source changeover horizontal installation; 2 x 4P: mounting plate support: INS320...630 source changeover horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Cubicle - width 650 mm depth 400 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 10
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 500 mm
- Product weight
- 1.54 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact INS320...630 source changeover fixed direct front rotary handle horizontal 3P 2 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact INS320...630 source changeover fixed direct front rotary handle horizontal 4P 2 direct 10
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Number of Units in Package 3
- 36
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 650 mm
- Number of height units
- 10
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481872449
- SAP 1200546721
- Code 82879354
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric LV848610SP Cable Interlock Masterpact MTZ2/MTZ3 3-Source
Schneider Electric
Bunnpl. 2DELT IP30 PrismaSeT P B650 D400
LVS08496
Schneider Electric
Illuminated push-button, flush, white, raised (ZB4FW113)
Schneider Electric
Schneider Electric 8 digital output PL c, SIL1 expansion modules with screw term XPSMCMDO0008C1
Schneider Electric

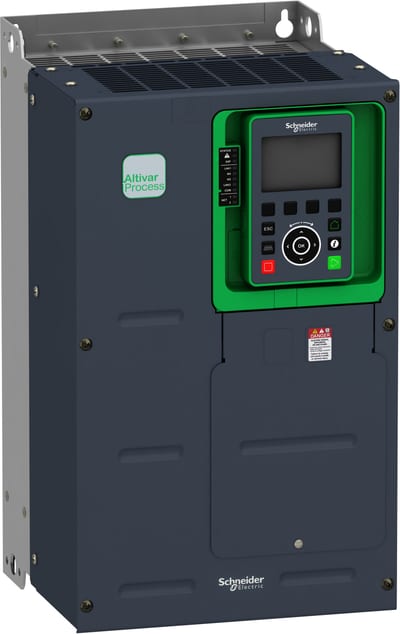

Schneider Electric variable speed drive, Altivar Process ATV900, ATV930, 22kW, 30hp, 500 to 690V, IP00 ATV930D22Y6
Schneider Electric
Rain hood 12X5 (NSYSC1250)
Schneider Electric

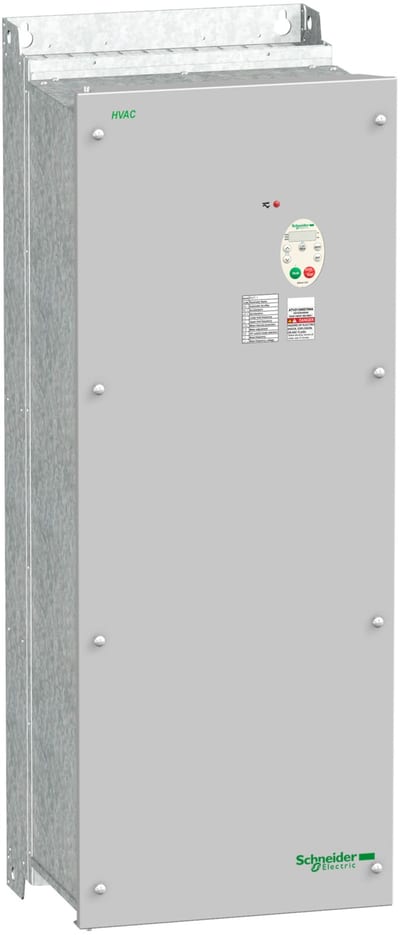

Schneider Electric variable speed drive, Altivar 212, 75kW, 100hp, 480V, 3 phases, with EMC class C2, IP55 ATV212WD75N4
Schneider Electric

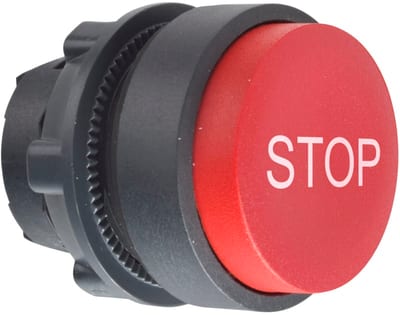

Schneider Electric Projecting push button head 40mm, Harmony XB5, plastic, red, 22mm, spring return, marked STOP ZB5AL434
