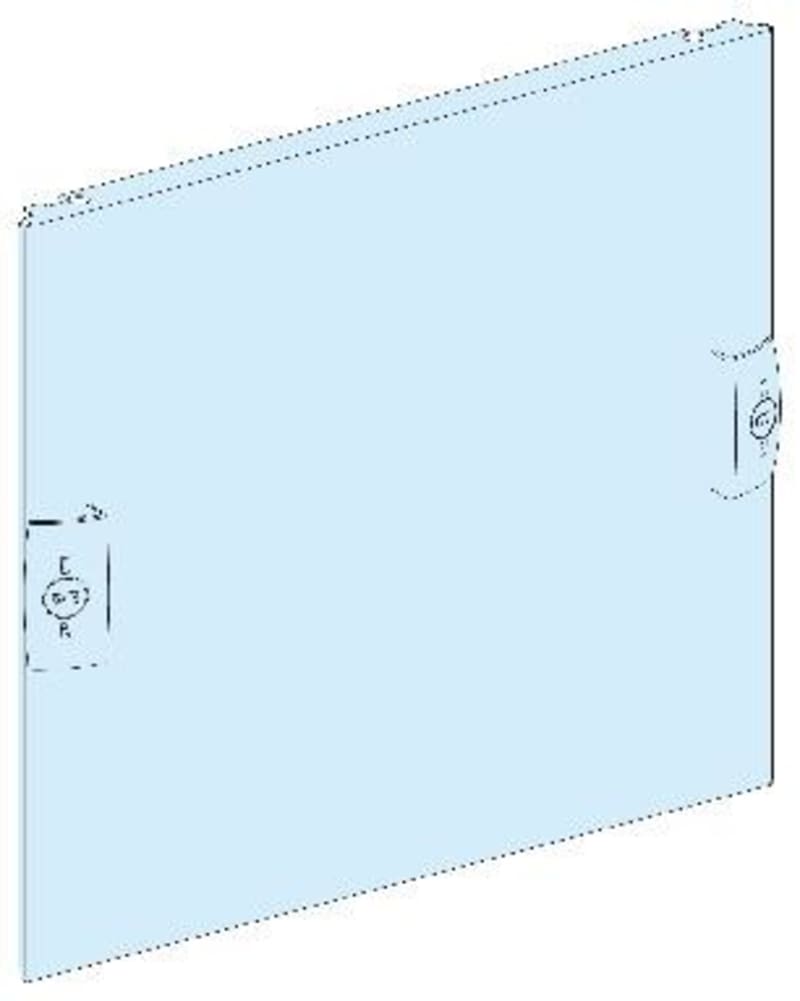

Sealed Front plate 4MOD B300MM-PRISMASET G/P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03814 sealed Front plate 4 Modules -width 300mm-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03814 EAN / GTIN: 3606481873910 Sales unit: pcs Package quantity: 10 pcs Modular width: 4 modules Range: PrismaSeT Range of product: PrismaSeT G; PrismaSeT P Product or component type: Front plate Accessory / separate part category: Installation accessory Range compatibility: PrismaSeT PrismaSeT G duct; PrismaSeT PrismaSeT P cubicle Type of front plate: Plain Installed device: TeSys: fixed TeSys U - horizontal installation; Altistart: ATS01N103/106FT; Phaseo: LV/LV transformer Poles description: 4 x 3P: modular rail support: TeSys U horizontal installation Enclosure/cubicle description: Floor-standing duct - width 300 mm; Wall-mounted duct - width 300 mm; Cubicle duct - width 400 mm depth 400 mm Number of vertical modules [50 mm]: 4 Standards: IEC 61439-2; IEC 61439-1 Product certifications: ASTA material: Steel Protective treatment: Electrophoresis treatment and hot-polymerised polyester epoxy powder Surface finish: Matt; Textured Colour: White (RAL 9003) Width: 250 mm Height: 200 mm Product weight: 0.48 kg Quantity per set: Set of 1 functional unit: 300 mm PrismaSeT G floor-standing duct TeSys TeSys U fixed horizontal 3P 4 direct 4; 300 mm PrismaSeT G wall-mounted duct TeSys TeSys U fixed horizontal 3P 4 direct 4; 300 mm PrismaSeT G floor-standing duct Altistart ATS01N103/106FT 19 4; 300 mm PrismaSeT G wall-mounted duct Altistart ATS01N103/106FT 19 4; 300 mm PrismaSeT G floor-standing duct Phaseo LV/LV transformer 4; 300 mm PrismaSeT G wall-mounted duct Phaseo LV/LV transformer 4; 400 mm 400 mm PrismaSeT P cubicle 4 Number of Units in Package 1: 1 Number of Units in Package 2: 18 Number of Units in Package 3: 216 Country of origin: FR Warranty (in months): 18 Suitable for enclosure building width: 300 mm Number of height units: 4 Surface finishing: Powder coating
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481873910
- SAP 1200546752
- Code 82880794
Product Documentation
More from Schneider Electric
Schneider Electric
Cover Plate ventilated
NSYECAV440
Schneider Electric
Pilot Light Head BLUE LED (ZB5AV063)
Schneider Electric
Schneider Electric LV432523 automatic auxiliary connector, moving part, ComPact NSX 400/630, for circuit breaker, 1 to 9 wires
Schneider Electric
Schneider Electric Ethercat 2 x RJ45 communication module VW3A3601
Schneider Electric
Schneider Electric Circuit breaker basic frame, ComPacT NSX400H, 70KA/415VAC, 4 poles, 400A frame rating, without trip unit C40H4
Schneider Electric
Schneider Electric Advantys STB basic digital input kit 24 V DC 16 I
STBDDI3725KC
Schneider Electric
Bottom plate IP55 PrismaSeT P B650 D600
LVS08686
Schneider Electric
Door for PrismaSeT G CABINET-IP30 18MOD B600
LVS08126
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LVS03814?
- LVS03814 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LVS03814.
- What is the HS code for LVS03814?
- The customs tariff (HS) code for LVS03814 is 7326.90.
- Who manufactures LVS03814?
- LVS03814 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for LVS03814?
- Yes — the LVS03814 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LVS03814?
- The minimum order quantity is 1.
- Is LVS03814 available?
- Yes — LVS03814 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
