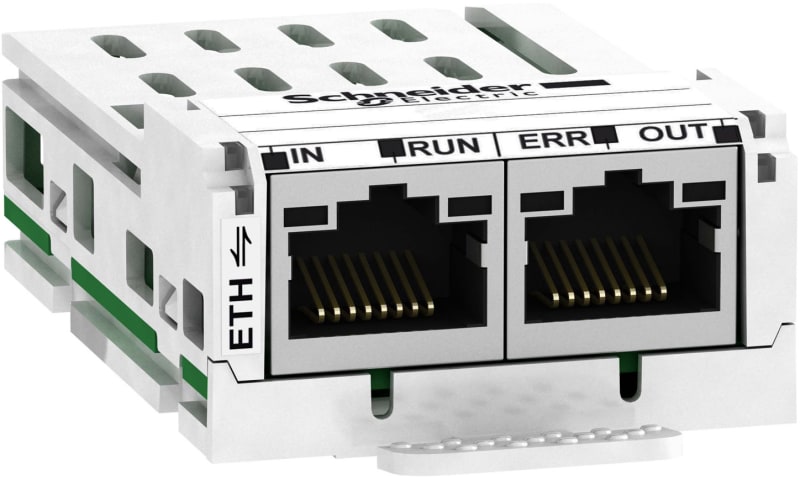

Schneider Electric Ethercat 2 x RJ45 communication module VW3A3601
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A3601 — Ethercat 2 x RJ45 communication module.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A3601
- EAN / GTIN
- 3606480326714
- Sales unit
- pcs
- Package quantity
- 208 pcs
- Range of product
- Altivar
- Product or component type
- Communication module
- Accessory / separate part category
- Communication accessories
- Product compatibility
- Lexium 32M
- Range compatibility
- Altivar Process Modular; Altivar Machine ATV340 except Sercos drives; Altivar Machine ATV320; Altivar Process ATV900; Altivar 32; Lexium 32
- Communication port protocol
- EtherCAT
- Electrical connection
- 2 connectors RJ45
- Transmission rate
- 100 Mbps
- Maximum cable distance between devices
- 100 m for 100 Mbps
- Addressing
- Logical addressing; Node addressing; Position addressing
- Communication service
- PDO and SDO support; Drive profile CiA 402 velocity mode conforming to IEC 61800-7-201 (CiA 402); CANopen over EtherCAT (CoE)
- Display type
- 1 LED for input status; 1 LED for RUN; 1 LED for error; 1 LED for output status
- Standards
- IEC 61800-7-201 (CiA 402)
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.300 cm
- Package 1 Width
- 4.500 cm
- Package 1 Length
- 9.000 cm
- Package 1 Weight
- 63.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 100
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 6.848 kg
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Communication module
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3606480326714
- SAP 1000473339
- Code 8583143
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker basic frame, ComPacT NSX400H, 70KA/415VAC, 4 poles, 400A frame rating, without trip unit C40H4
Schneider Electric
Schneider Electric Advantys STB basic digital input kit 24 V DC 16 I
STBDDI3725KC
Schneider Electric
Bottom plate IP55 PrismaSeT P B650 D600
LVS08686
Schneider Electric
Door for PrismaSeT G CABINET-IP30 18MOD B600
LVS08126
Schneider Electric
Schneider Electric LA1KN04 TeSys K - Auxiliary contact block - 4 NC - screw-clamps terminals
Schneider Electric

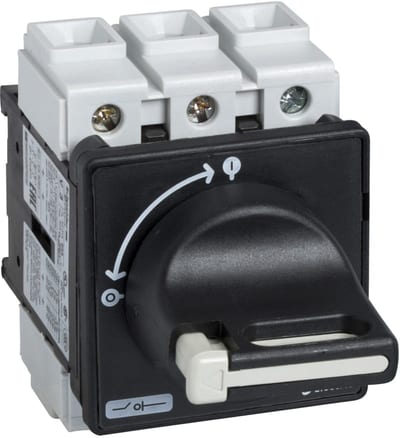

Schneider Electric TeSys Vario - switch disconnector - 20 A - on door VBD01
Schneider Electric
MX 024/030V AC/DC for Fast Bry
33659
Schneider Electric

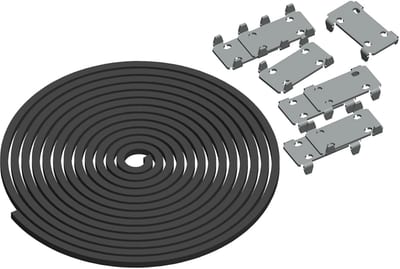

Schneider Electric NSYSFBK19 Coupling kit for enclosures equipped with swinging 19" rack, PanelSeT SFN, PanelSet SF, Set of 1
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy VW3A3601?
- VW3A3601 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is VW3A3601.
- What is the HS code for VW3A3601?
- The customs tariff (HS) code for VW3A3601 is 8504.40.
- Who manufactures VW3A3601?
- VW3A3601 is a Schneider Electric product in the Drives & Controllers range.
- Is a datasheet available for VW3A3601?
- Yes — the VW3A3601 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for VW3A3601?
- The minimum order quantity is 1.
- Is VW3A3601 available?
- Yes — VW3A3601 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
