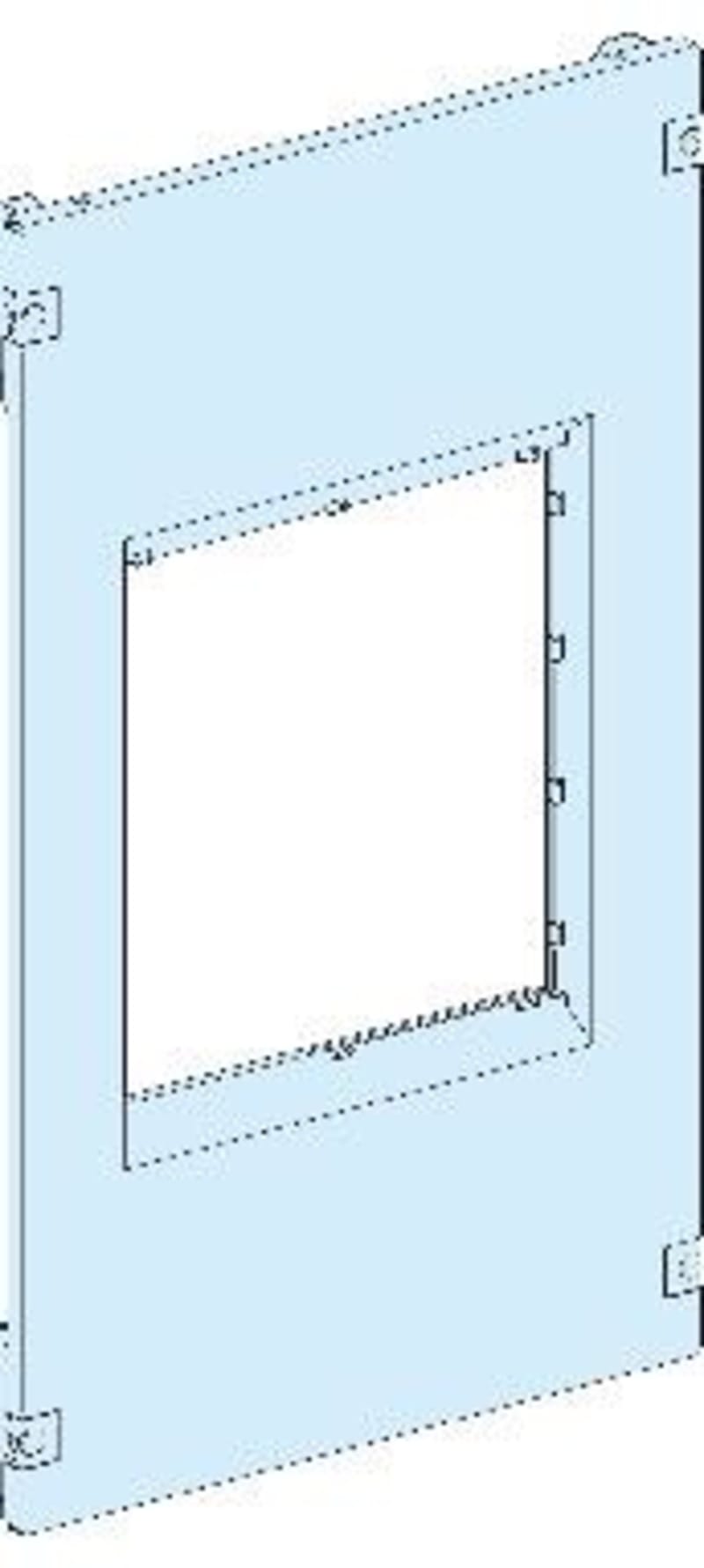

Front plate MTZ1-3P-FAST-400MM-PRISMA P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03698 Front plate for MTZ1-3P-vertical mounting-fixed-mounted-in 400mm section-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03698
- EAN / GTIN
- 3606481872418
- Sales unit
- pcs
- Package quantity
- 7 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- Masterpact: fixed NT06...10 - control: toggle - vertical installation; Masterpact: fixed NT12 - control: toggle - vertical installation; Masterpact: fixed NT16 - control: toggle - vertical installation
- Poles description
- 1 x 3P: mounting plate support: NT06...10 vertical installation; 1 x 3P: mounting plate support: NT12 vertical installation; 1 x 3P: mounting plate support: NT16 vertical installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Cubicle duct - width 400 mm depth 400 mm
- Connection position
- Front connection
- Number of vertical modules [50 mm]
- 11
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 321 mm
- Height
- 550 mm
- Product weight
- 1.88 kg
- Quantity per set
- Set of 1
- functional unit
- 400 mm 400 mm PrismaSeT P cubicle Masterpact NT06...10 fixed toggle vertical 3P 1 front connection 36; 400 mm 400 mm PrismaSeT P cubicle Masterpact NT12 fixed toggle vertical 3P 1 front connection 36; 400 mm 400 mm PrismaSeT P cubicle Masterpact NT16 fixed toggle vertical 3P 1 front connection 36
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 7
- Number of Units in Package 3
- 28
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 400 mm
- Number of height units
- 11
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
- Country of origin
- Romania
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481872418
- SAP 1200546730
- Code 82879685
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric APC Replacement Battery Cartridge #25 with 2 Year Warranty RBC25
Schneider Electric
Schneider Electric legend - 30 x 40 mm - black - slew left, slow-fast ZB2BY2924
Schneider Electric
Schneider Electric Monobloc perforated plates H500XW500MM with universal perforations 11X26MM NSYMR55
Schneider Electric
Innerdoor 10 X 6 (NSYPIN106)
Schneider Electric

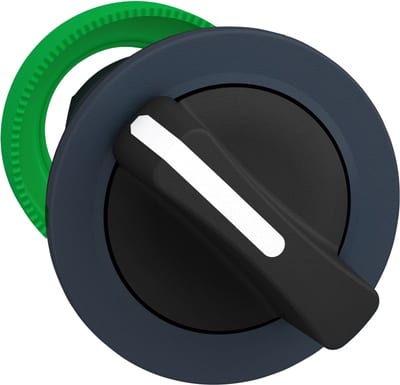

Schneider Electric flush mounted black selector switch head 2 pos return right to left ZB5FD4
Schneider Electric

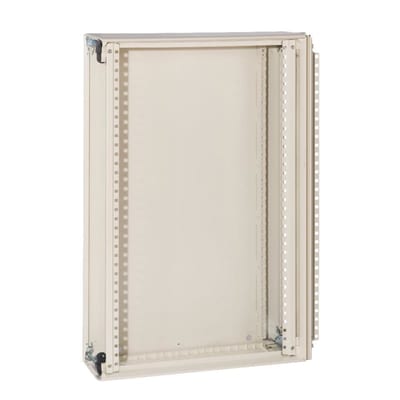

Schneider Electric Enclosure extension, PrismaSeT G, wall mounted, without side plates, 12M, W600MM, H630MM, IP30 LVS08114
Schneider Electric

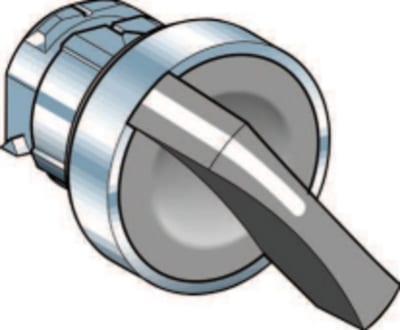

SELECTOR SWITCH HEAD, SHORT, Black
ZB2BD3
Schneider Electric

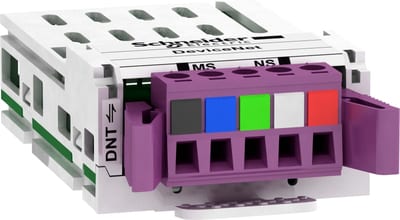

Schneider Electric Devicenet communication module VW3A3609
