Schneider Electric

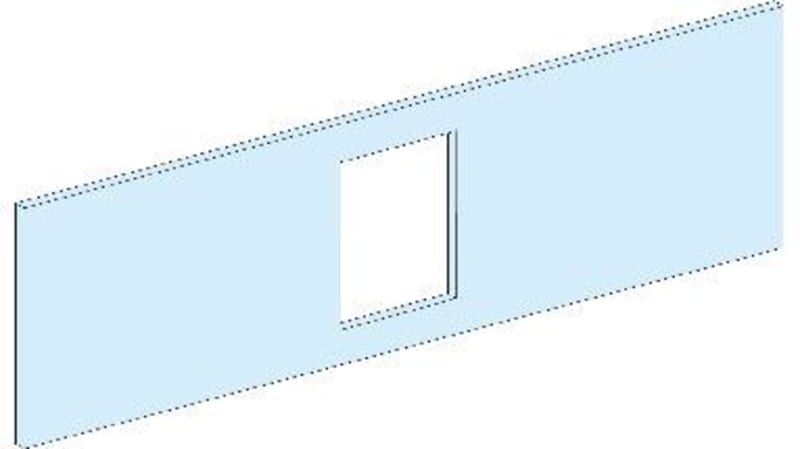

Front plate INS630 Horizontal PrismaSeT P
Part numberLVS03658EAN / GTIN3606481866233HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03658 Front plate for INS40/6300-Horizontal mounting-PrismaSeT P-650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03658
- EAN / GTIN
- 3606481866233
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed INS320...400 - control: direct front rotary handle - horizontal installation; ComPact: fixed INS500...630 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV320...400 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV500...630 - control: direct front rotary handle - horizontal installation
- Poles description
- 1 x 3P: mounting plate support: INS320...400 horizontal installation; 1 x 4P: mounting plate support: INS320...400 horizontal installation; 1 x 3P: mounting plate support: INS500...630 horizontal installation; 1 x 4P: mounting plate support: INS500...630 horizontal installation; 1 x 3P: mounting plate support: INV320...400 horizontal installation; 1 x 4P: mounting plate support: INV320...400 horizontal installation; 1 x 3P: mounting plate support: INV500...630 horizontal installation; 1 x 4P: mounting plate support: INV500...630 horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Cubicle - width 650 mm depth 400 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 5
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 250 mm
- Product weight
- 0.92 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact INS320...400 fixed direct front rotary handle horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact INS320...400 fixed direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact INS500...630 fixed direct front rotary handle horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact INS500...630 fixed direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact INV320...400 fixed direct front rotary handle horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact INV320...400 fixed direct front rotary handle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact INV500...630 fixed direct front rotary handle horizontal 3P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact INV500...630 fixed direct front rotary handle horizontal 4P 1 direct 5
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 26.500 cm
- Package 1 Length
- 51.500 cm
- Package 1 Weight
- 883.000 g
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 9
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 10.345 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 108
- Package 3 Height
- 105.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 136.140 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 650 mm
- Number of height units
- 5
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481866233
- SAP 1200546719
- Code 82880022
