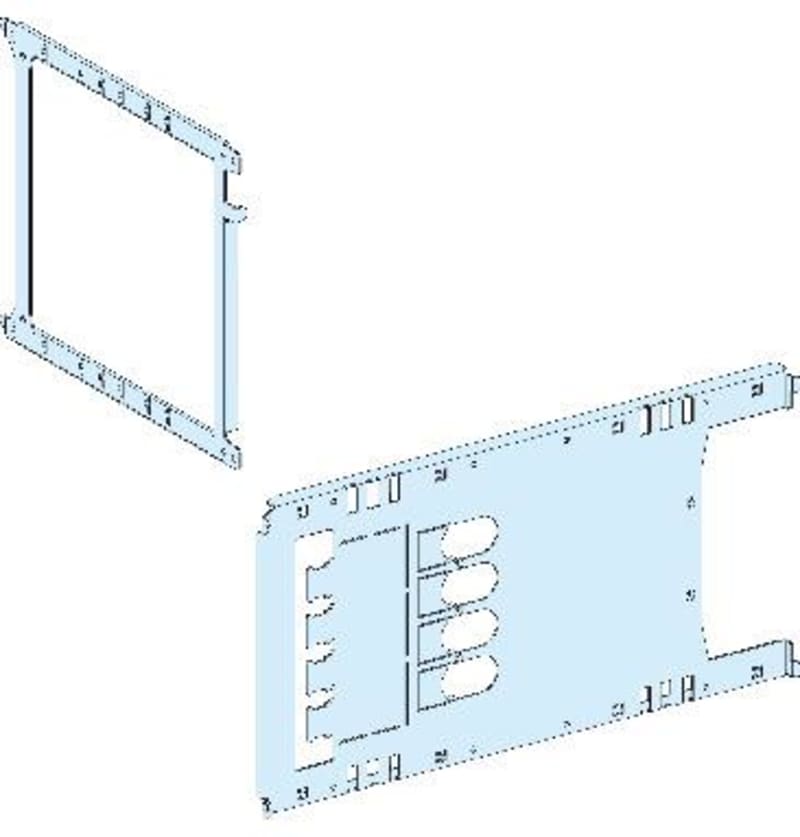

Mounting plate NSX630 Horizontal-Prisma P

Schneider Electric LVS03462 Mounting plate for NSX400/630-withdrawable-all operation-horizontal mounting-3P/4P-PrismaSeT P-650mm.

Manufacturer part number (MPN)

LVS03462

EAN / GTIN

3606481874436

Sales unit

pcs

Package quantity

4 pcs

Range

PrismaSeT

Range of product

PrismaSeT P

Product or component type

Mounting plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT P cubicle

installation description

Cubicle - width 650 mm depth 400 mm

Installed device

ComPact: drawout NSX400 without earth leakage protection - control: toggle - horizontal installation; ComPact: drawout NSX400 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: drawout NSX400 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: drawout NSX630 without earth leakage protection - control: toggle - horizontal installation; ComPact: drawout NSX630 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: drawout NSX630 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: drawout NSX400 with earth leakage protection - control: toggle - horizontal installation; ComPact: drawout NSX400 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: drawout NSX400 with earth leakage protection - control: motor mechanism - horizontal installation; ComPact: drawout NSX630 with earth leakage protection - control: toggle - horizontal installation; ComPact: drawout NSX630 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: drawout NSX630 with earth leakage protection - control: motor mechanism - horizontal installation

Poles description

1 x 3P: drawout NSX400 horizontal installation; 1 x 4P: drawout NSX400 horizontal installation; 1 x 3P: drawout NSX630 horizontal installation; 1 x 4P: drawout NSX630 horizontal installation

Number of vertical modules [50 mm]

6 module(s): NSX400 without earth leakage protection , direct in 650 mm Widecubicle; 6 module(s): NSX630 without earth leakage protection , direct in 650 mm Widecubicle; 6 module(s): NSX400 with earth leakage protection , direct in 650 mm Widecubicle; 6 module(s): NSX630 with earth leakage protection , direct in 650 mm Widecubicle

Standards

IEC 61439-2

Product certifications

ASTA

Material

Sheet steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Matt; Textured

Colour

White (RAL 9003)

Width

575 mm

Height

296 mm

Product weight

3.38 kg

Functional unit

650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout toggle horizontal 3P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout direct front rotary handle horizontal 3P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout motor mechanism horizontal 3P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout toggle horizontal 4P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout direct front rotary handle horizontal 4P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without drawout motor mechanism horizontal 4P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout toggle horizontal 3P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout direct front rotary handle horizontal 3P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout motor mechanism horizontal 3P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout toggle horizontal 4P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout direct front rotary handle horizontal 4P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without drawout motor mechanism horizontal 4P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout toggle horizontal 3P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout direct front rotary handle horizontal 3P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout motor mechanism horizontal 3P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout toggle horizontal 4P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout direct front rotary handle horizontal 4P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with drawout motor mechanism horizontal 4P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout toggle horizontal 3P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout direct front rotary handle horizontal 3P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout motor mechanism horizontal 3P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout toggle horizontal 4P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout direct front rotary handle horizontal 4P 1 direct 6 12.5 mm; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with drawout motor mechanism horizontal 4P 1 direct 6 12.5 mm

Number of Units in Package 1

1

Number of Units in Package 2

4

Number of Units in Package 3

48

Warranty (in months)

18

Perforated

No

Surface protection

Powder coating

Country of origin

Italy

HS Code

7326.90

• EAN 3606481874436
• SAP 1200546685
• Code 82880448
