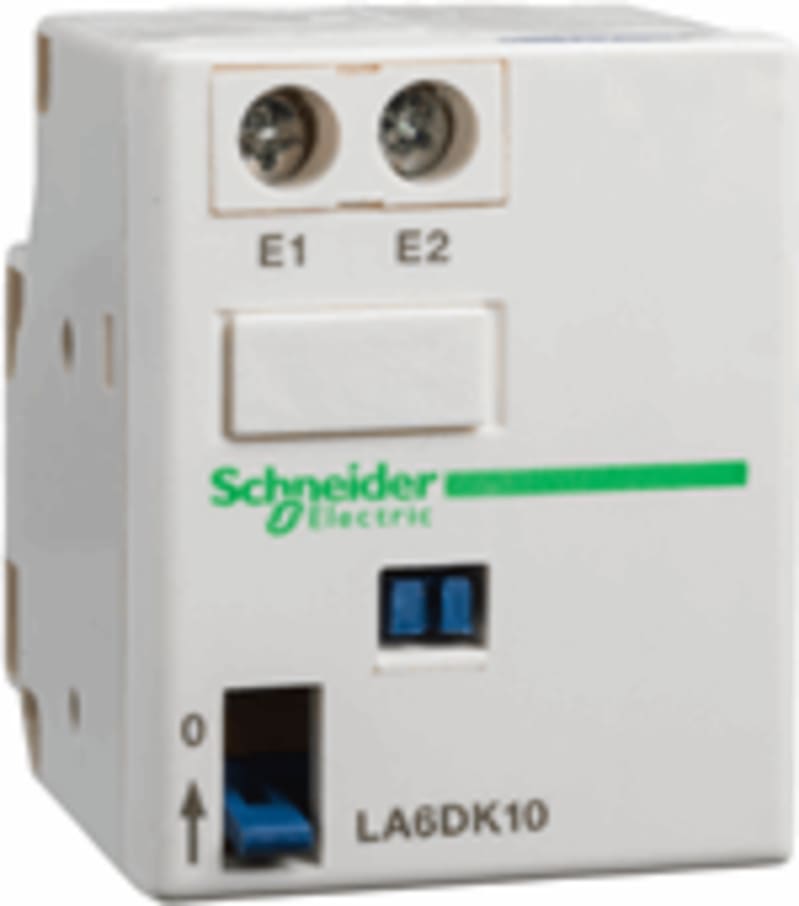

Schneider Electric auxiliary latch block TeSys D - 24 V DC/AC 50...60 Hz LA6DK10B
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LA6DK10B Sperreblokk 24VAC/DC.
Technical Specifications
- Manufacturer part number (MPN)
- LA6DK10B
- EAN / GTIN
- 3389110745740
- Sales unit
- pcs
- Voltage
- 24 V
- Range
- TeSys
- Product or component type
- Mechanical latch block
- Product compatibility
- LC1D40 3 phases + neutral AC; LP1D40 3 phases + neutral DC; LP1D65 3 phases + neutral DC; LC1D65 3 phases + neutral AC
- [Uc] control circuit voltage
- 24 V AC 50/60 Hz; 24 V DC
- Mounting location
- Front side
- Tripping control
- Electrical; Manual
- [Ui] rated insulation voltage
- 690 V conforming to IEC 60947-5-1
- Power required in VA
- 25 for AC circuit
- Power required in W
- 30 W for DC circuit
- Mechanical durability
- 500000 cycles
- Maximum operating rate
- 1200 cyc/h
- On-load factor
- 10 %
- Product weight
- 0.07 kg
- Product certifications
- UL; CSA
- IP degree of protection
- IP2X conforming to VDE 0106
- Protective treatment
- TH conforming to IEC 60068
- Ambient air temperature for operation
- -25…55 °C
- Ambient air temperature for storage
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 32
- Number of Units in Package 3
- 1024
- Country of origin
- FR
- Warranty (in months)
- 18
- Type of accessory/spare part
- Mechanical locking
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3389110745740
- SAP 1000004381
- Code 8471251
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric KSA1000ZJ4 Canalis KS Jointing Unit 1000A 3L+N+PE IP55
Schneider Electric
Schneider Electric High power contactor,TeSys Giga 630,4P(4NO),AC-1 <=440V 1050A,standard version,48-130V AC/DC wide band coil LC1G6304EHEN
Schneider Electric
RAIL 250A 3L 5M 20 Outlet
KSA250ED35020
Schneider Electric
Schneider Electric variable speed drive, Altivar Process ATV900, ATV930, 90kW, 380 to 480V, cabinet Integration, marine certification ATV930D90N4428
Schneider Electric
Schneider Electric APC Replacement Battery Cartridge #11 with 2 Year Warranty RBC11
Schneider Electric
INNERHJ. FED 16155AN IH
5440140
Schneider Electric
Schneider Electric Advanced control unit, TeSys U, 4.5-18A, 3P motors, protection & diagnostic, class 10, coil 24V AC LUCB18B
Schneider Electric
BETJ.DEL (XACA9416)
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LA6DK10B?
- LA6DK10B can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LA6DK10B.
- What is the HS code for LA6DK10B?
- The customs tariff (HS) code for LA6DK10B is 8536.90.
- Who manufactures LA6DK10B?
- LA6DK10B is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for LA6DK10B?
- Yes — the LA6DK10B datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LA6DK10B?
- The minimum order quantity is 1.
- Is LA6DK10B available?
- Yes — LA6DK10B is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
