Adjustable Mounting Rail with Cable Fixing for Modular Devices, PrismaSeT P

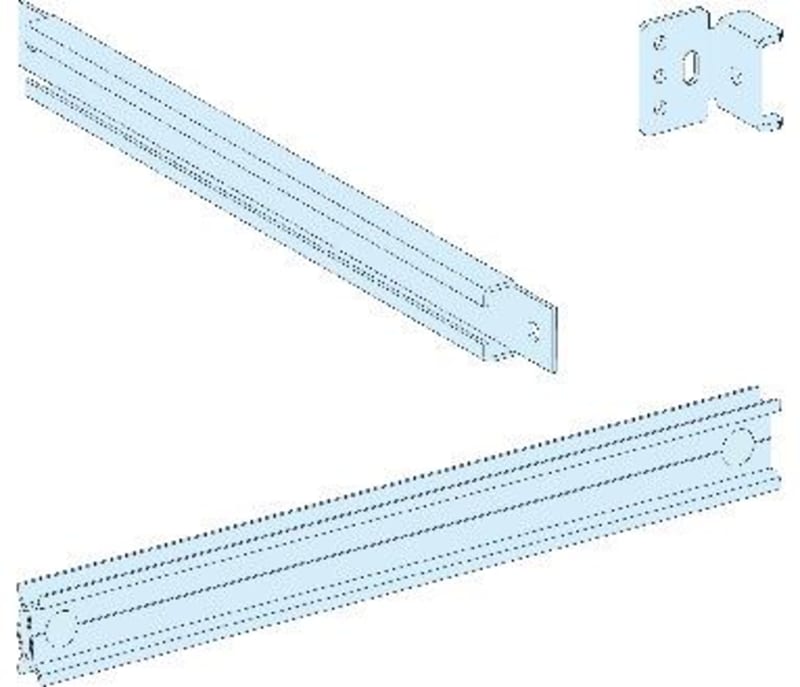

Schneider Electric LVS03404 adjustable mounting rail with cable fixing for modular devices in PrismaSeT P enclosures.

Manufacturer part number (MPN)

LVS03404

EAN / GTIN

3606481875587

Sales unit

pcs

Package quantity

20 pcs

Range

PrismaSeT

Range of product

PrismaSeT P

Product or component type

Rail

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT P

Type of rail

Modular; Adjustable

Installed device

ComPact: fixed INS100 - control: direct front rotary handle - vertical installation; ComPact: fixed INS160 - control: direct front rotary handle - vertical installation; ComPact: fixed INS40 - control: direct front rotary handle - vertical installation; ComPact: fixed INS63 - control: direct front rotary handle - vertical installation; Acti 9: fixed modular device; Multi9: fixed modular device; Multi9: fixed NG125 without earth leakage protection - control: toggle; ComPact: fixed INS125 - control: direct front rotary handle - vertical installation; Acti 9: fixed modular device <= 40 A; Multi9: fixed modular device <= 40 A; ComPact: fixed NG160 without earth leakage protection - control: toggle; ComPact: fixed NG160 NA without earth leakage protection - control: toggle; ComPact: fixed NSA125...160 - control: toggle

Poles description

1 x 3P: fixed INS100 vertical installation; 1 x 4P: fixed INS100 vertical installation; 1 x 3P: fixed INS160 vertical installation; 1 x 4P: fixed INS160 vertical installation; 1 x 3P: fixed INS40 vertical installation; 1 x 4P: fixed INS40 vertical installation; 1 x 3P: fixed INS63 vertical installation; 1 x 4P: fixed INS63 vertical installation; 1 x 3P: fixed NG125; 1 x 4P: fixed NG125; 1 x 3P: fixed INS125 vertical installation; 1 x 4P: fixed INS125 vertical installation; 1 x 3P: fixed NG160; 1 x 4P: fixed NG160; 1 x 3P: fixed NG160 NA; 1 x 4P: fixed NG160 NA; 1 x 3P: fixed NSA125...160; 1 x 4P: fixed NSA125...160

installation description

Cubicle - width 400 mm depth 400 mm

Enclosure nominal height

2000 mm

Number of vertical modules [50 mm]

4 module(s): INS100, direct in 400 mm Widecubicle; 5 module(s): INS100, direct in 400 mm Widecubicle; 4 module(s): INS125, direct in 400 mm Widecubicle; 5 module(s): INS125, direct in 400 mm Widecubicle; 4 module(s): INS160, direct in 400 mm Widecubicle; 5 module(s): INS160, direct in 400 mm Widecubicle; 4 module(s): INS40, direct in 400 mm Widecubicle; 4 module(s): INS63, direct in 400 mm Widecubicle; 3 module(s): modular device <= 40 A, direct in 400 mm Widecubicle; 4 module(s): modular device, direct in 400 mm Widecubicle; 5 module(s): NG125 without earth leakage protection , direct in 400 mm Widecubicle; 5 module(s): NG160 without earth leakage protection , direct in 400 mm Widecubicle; 5 module(s): NG160 NA without earth leakage protection , direct in 400 mm Widecubicle; 5 module(s): NSA125...160, direct in 400 mm Widecubicle

9 mm pitches

20

Quantity per set

Set of 1

Height

30 mm

Width

325 mm

Depth

325 mm

Product weight

0.76 kg

Colour

Natural

Material

Metal

Standards

IEC 61439-1; IEC 61439-2

Product certifications

ASTA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.500 cm

Package 1 Width

4.000 cm

Package 1 Length

36.000 cm

Package 1 Weight

728.000 g

Unit Type of Package 2

S04

Number of Units in Package 2

20

Package 2 Height

30.000 cm

Package 2 Width

40.000 cm

Package 2 Length

60.000 cm

Package 2 Weight

15.650 kg

Unit Type of Package 3

P12

Number of Units in Package 3

80

Package 3 Height

43.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

72.240 kg

Country of origin

FR

Warranty (in months)

18

• EAN 3606481875587
• SAP 1200546666
• Code 82880064
