Schneider Electric

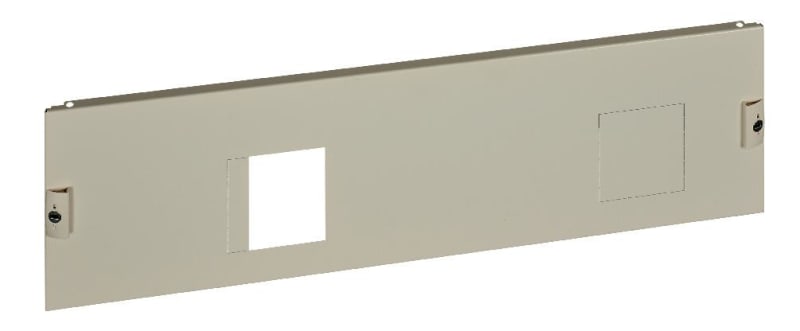

Front plate NSX250 Horizontal Prisma G B850
Part numberLVS03294EAN / GTIN3606481871992HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03294 Front plate for NSX100/250-horizontal mounting-for PrismaSeT G-4 modules-for 850mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03294
- EAN / GTIN
- 3606481871992
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed NSX100...160 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX250 without earth leakage protection - control: toggle - horizontal installation; Human-switchboard interface: 96 x 96 mm device; Human-switchboard interface: HSI; Enerlin'X: fixed FDM121 - control: remote control - vertical installation
- Poles description
- 1 x 3P: mounting plate support: NSX100...160 horizontal installation; 1 x 4P: mounting plate support: NSX100...160 horizontal installation; 1 x 3P: mounting plate support: NSX250 horizontal installation; 1 x 4P: mounting plate support: NSX250 horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Floor-standing enclosure - width 850 mm
- Connection position
- Connection block
- Number of vertical modules [50 mm]
- 4
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 850 mm
- Height
- 200 mm
- Product weight
- 1.4 kg
- Quantity per set
- Set of 1
- functional unit
- 850 mm PrismaSeT G floor-standing enclosure human-switchboard interface 96 x 96 mm device 1 4; 850 mm PrismaSeT G floor-standing enclosure human-switchboard interface HSI 1 4; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX100...160 without fixed toggle horizontal 3P 1 connection block 5; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX100...160 without fixed toggle horizontal 4P 1 connection block 5; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX250 without fixed toggle horizontal 3P 1 connection block 5; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX250 without fixed toggle horizontal 4P 1 connection block 5; 850 mm PrismaSeT G floor-standing enclosure Enerlin'X FDM121 fixed remote control vertical 1 4; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX100...160 without fixed toggle horizontal 3P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX100...160 without fixed toggle horizontal 4P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX250 without fixed toggle horizontal 3P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact NSX250 without fixed toggle horizontal 4P 1 direct with long terminal shield 4
- IP degree of protection
- IP30
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.0 cm
- Package 1 Width
- 20.0 cm
- Package 1 Length
- 75.0 cm
- Package 1 Weight
- 1.402 kg
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 6
- Package 2 Height
- 11.0 cm
- Package 2 Width
- 22.0 cm
- Package 2 Length
- 75.5 cm
- Package 2 Weight
- 8.773 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 60
- Package 3 Height
- 34.0 cm
- Package 3 Width
- 80.0 cm
- Package 3 Length
- 120.0 cm
- Package 3 Weight
- 99.5 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 850 mm
- Material
- Steel
- Number of height units
- 4
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481871992
- SAP 1200546650
- Code 82880115
Product Documentation
