Schneider Electric

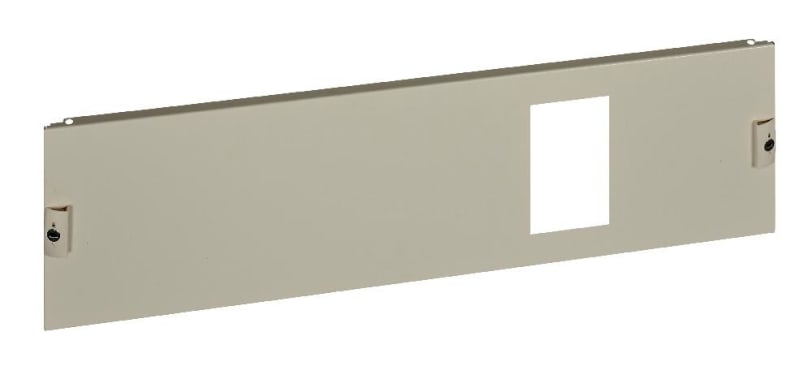

Front plate INS250 horizontal Prisma G B850
Part numberLVS03239EAN / GTIN3606481872265HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03239 Front plate for INS250-horizontal mounting-for PrismaSeT G-4 modules-for 850mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03239
- EAN / GTIN
- 3606481872265
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed INS250 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV100 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV160 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV200 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV250 - control: direct front rotary handle - horizontal installation
- Poles description
- 1 x 3P: mounting plate support: INS250 horizontal installation; 1 x 4P: mounting plate support: INS250 horizontal installation; 1 x 3P: mounting plate support: INV100 horizontal installation; 1 x 4P: mounting plate support: INV100 horizontal installation; 1 x 3P: mounting plate support: INV250 horizontal installation; 1 x 4P: mounting plate support: INV250 horizontal installation; 1 x 3P: mounting plate support: INV160 horizontal installation; 1 x 4P: mounting plate support: INV160 horizontal installation; 1 x 3P: mounting plate support: INV200 horizontal installation; 1 x 4P: mounting plate support: INV200 horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Floor-standing enclosure - width 850 mm
- Connection position
- Connection block
- Number of vertical modules [50 mm]
- 4
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 850 mm
- Height
- 200 mm
- Product weight
- 1.36 kg
- Quantity per set
- Set of 1
- functional unit
- 850 mm PrismaSeT G floor-standing enclosure ComPact INS250 fixed direct front rotary handle horizontal 3P 1 connection block 5; 850 mm PrismaSeT G floor-standing enclosure ComPact INS250 fixed direct front rotary handle horizontal 4P 1 connection block 5; 850 mm PrismaSeT G floor-standing enclosure ComPact INV100 fixed direct front rotary handle horizontal 3P 1 connection block 5; 850 mm PrismaSeT G floor-standing enclosure ComPact INV100 fixed direct front rotary handle horizontal 4P 1 connection block 5; 850 mm PrismaSeT G floor-standing enclosure ComPact INV160 fixed direct front rotary handle horizontal 3P 1 connection block 5; 850 mm PrismaSeT G floor-standing enclosure ComPact INV160 fixed direct front rotary handle horizontal 4P 1 connection block 5; 850 mm PrismaSeT G floor-standing enclosure ComPact INV200 fixed direct front rotary handle horizontal 3P 1 connection block 5; 850 mm PrismaSeT G floor-standing enclosure ComPact INV200 fixed direct front rotary handle horizontal 4P 1 connection block 5; 850 mm PrismaSeT G floor-standing enclosure ComPact INV250 fixed direct front rotary handle horizontal 3P 1 connection block 5; 850 mm PrismaSeT G floor-standing enclosure ComPact INV250 fixed direct front rotary handle horizontal 4P 1 connection block 5; 850 mm PrismaSeT G floor-standing enclosure ComPact INV100 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact INV100 fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact INV160 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact INV160 fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact INV200 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact INV200 fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact INV250 fixed direct front rotary handle horizontal 3P 1 direct with long terminal shield 4; 850 mm PrismaSeT G floor-standing enclosure ComPact INV250 fixed direct front rotary handle horizontal 4P 1 direct with long terminal shield 4
- IP degree of protection
- IP30
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Number of Units in Package 3
- 60
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 850 mm
- Material
- Steel
- Number of height units
- 4
- Surface finishing
- Powder coating
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481872265
- SAP 1200546630
- Code 82880006
Product Documentation
Document preview: Schneider Electric LVS03239 — OEM Product Page
More from Schneider Electric
Schneider Electric

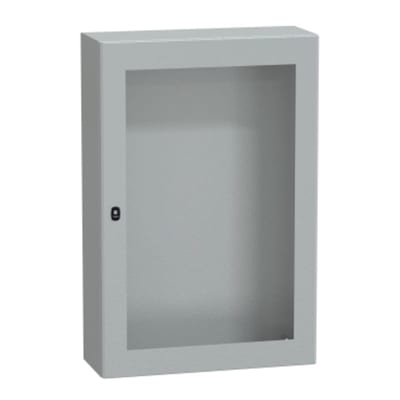

WALL-Mount Cabinet WITH WINDOW. 12X8X3
NSYS3D12830T
Schneider Electric

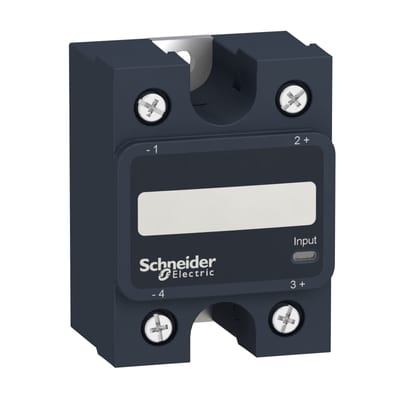

Schneider Electric solid state relay - panel mounting - input 90-280VAC, output 48-660VAC,90A SSP1A490M7
Schneider Electric

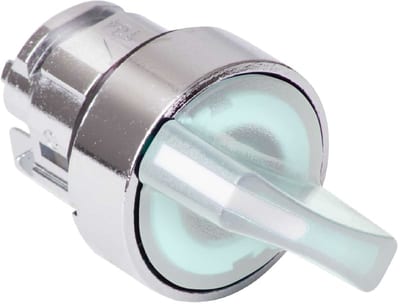

Selector switch with LIGHT 2ST.IMP.WHITE LED
ZB4BK1413
Schneider Electric

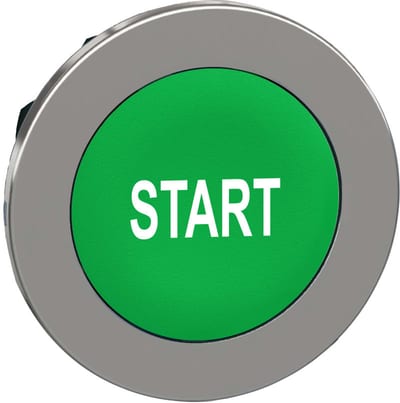

Push-button flush green with text (ZB4FA333)
Schneider Electric
Bakelite Mounting Plate for PLA 127 Enclosure
NSYPMB127
Schneider Electric

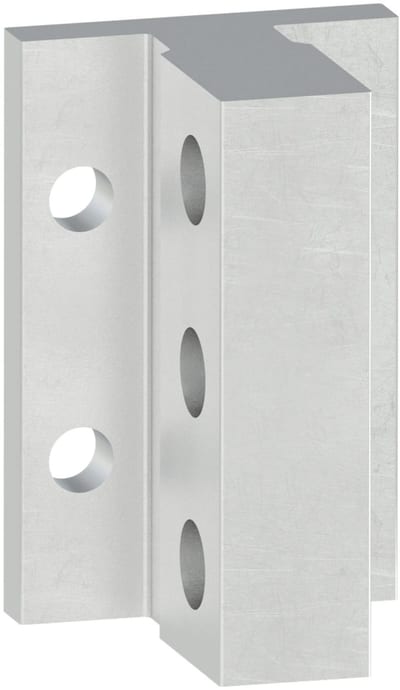

Vertikaltilk top MTZ 25/32 4P
