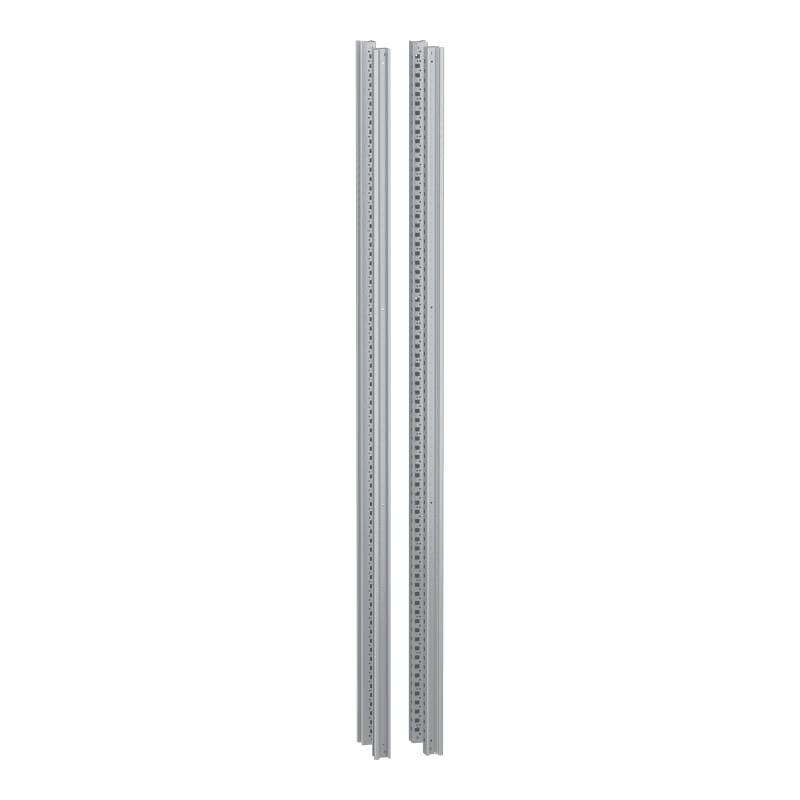

Schneider Electric PanelSeT SFN Vertical Corner Uprights, 2000 mm, Set of 4
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFNV20 set of four vertical corner uprights for the PanelSeT SFN enclosure system, 2000 mm height in textured epoxy-polyester coated steel finished in RAL 7035 grey. Fixed by M12 screws to the bottom frame and top frame with roof; 45 mm x 45 mm cross section, 19.6 kg per set. Country of origin France, 18-month warranty.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFNV20
- EAN / GTIN
- 3606486103890
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Vertical upright
- device application
- Multi-purpose
- enclosure nominal dimensions
- -
- Mounting support
- Bottom frame and top frame with roof
- Range compatibility
- PanelSeT SFN
- Device composition
- 4 upright
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Textured epoxy polyester
- Fixing mode
- By screws - screw type M12
- Height
- 2000 mm
- Width
- 45 mm
- Depth
- 45 mm
- Product weight
- 19.6 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 21.000 cm
- Package 1 Length
- 191.000 cm
- Package 1 Weight
- 20.100 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 45
- Package 2 Height
- 70.000 cm
- Package 2 Width
- 200.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 939.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Profile
- Suitable for enclosure building height
- 2000 mm
- Colour
- Grey
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606486103890
- SAP 1200698108
- Code 83799593
