Glassdoor SFN/SM 2000X600
Pricing
Request a quote
We reply within 24 hours
Product Description

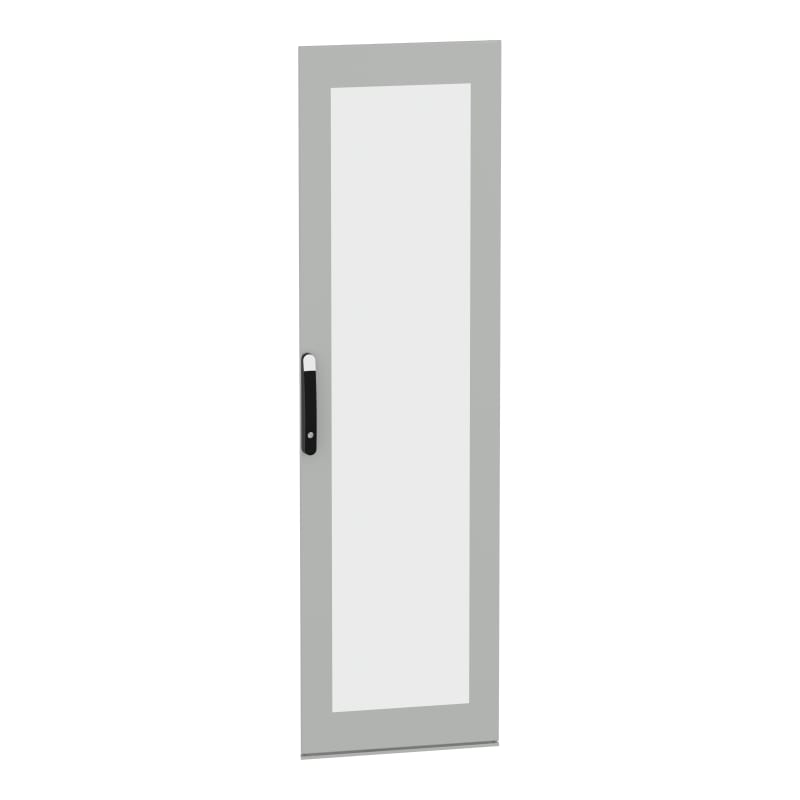

Schneider Electric NSYSFND206T Glass door, PanelSeT SFN/SM, complete with locking system, 2000x600.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFND206T
- EAN / GTIN
- 3606486378342
- Sales unit
- pcs
- Dimensions
- 2000×600 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- - H: 2000 mm W: 600 mm
- Mounting location
- Front; Side
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 door; 1 lock with handle and 5 mm double bar insert; 1 locking bar system 4 points; 4 hinges; 4 locking bar catches
- Quantity per set
- Set of 1
- Material
- Door: Securit glass; Door: sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 5 mm double bar
- Number of locks
- 1
- Door type
- Glazed
- Door opening side
- Reversible (120 °)
- Height
- Nominal: 2000 mm
- Width
- Nominal: 569 mm
- Product weight
- 28.4 kg
- IK degree of protection
- IK08
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 25
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 26 mm
- EMC-version
- No
- Surface finishing
- Powder coating
- Version as glazed door
- Yes
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486378342
- SAP 1200698034
- Code 83799658
Product Documentation
More from Schneider Electric
Schneider Electric
Modular front plate 400X600
NSYMUC406
Schneider Electric
Schneider Electric PanelSet SF transparent door - 400X800 mm NSYMPD48T
Schneider Electric
Schneider Electric PanelSet SF transparent door - 1000X600 mm NSYMPD106T
Schneider Electric
Top plate IP55 PrismaSeT P B300 D600
LVS08653
Schneider Electric
Schneider Electric flush mounted white selector switch head 3 pos stay put ZB5FD301
Schneider Electric
SWM al CABL.G1.P 245X80MM
NSYTLBU
Schneider Electric
Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3 <=440V 225A, advanced version, 48…130V wide band AC/DC coil LC1G225EHEA
Schneider Electric

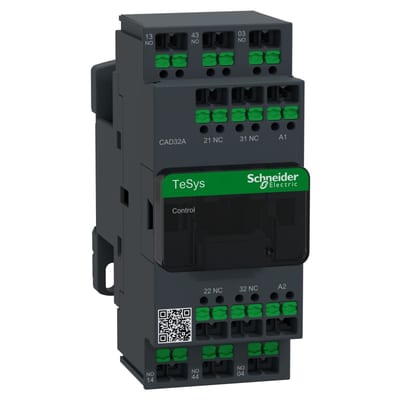

Schneider Electric Control relay, TeSys Deca, 3NO+2NC, <=690V, 120V AC standard coil, snap-in terminals CAD32AG7
