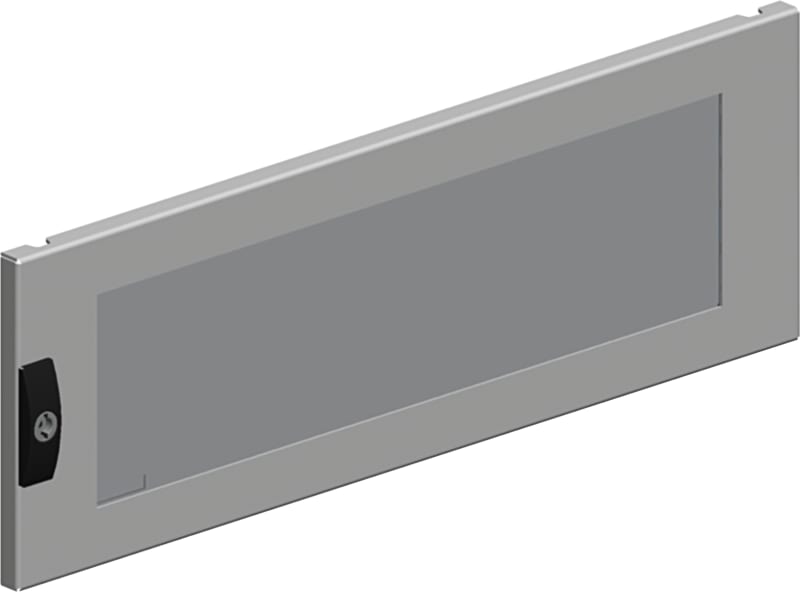

Schneider Electric PanelSet SF transparent door - 400X800 mm NSYMPD48T
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMPD48T Split gl.door400x800.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMPD48T
- EAN / GTIN
- 3606480066184
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Partial door
- Application
- Compartmentalised application
- For enclosure nominal dimensions
- -
- Mounting location
- Front
- Range compatibility
- PanelSeT SFM
- Device composition
- 1 partial door; 2 vertical reinforcement frame; 3 hinges; 1 escutcheon lock and 3 mm double bar insert
- Quantity per set
- Set of 1
- Material
- Door: Securit glass; Door: sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 3 mm double bar
- Number of locks
- 1
- Door type
- External transparent
- Door opening side
- Reversible (120 °)
- Height
- Nominal: 400 mm; Real: 394 mm
- Width
- Nominal: 800 mm; Real: 769 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 78.000 cm
- Package 1 Width
- 40.000 cm
- Package 1 Length
- 6.500 cm
- Package 1 Weight
- 5.486 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 12
- Package 2 Height
- 50.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 76.200 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Partial door
- EMC-version
- No
- Degree of protection (IP)
- IP55
- Surface finishing
- Powder coating
- Version as glazed door
- Yes
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480066184
- SAP 1000470422
- Code 8787251
Product Documentation
