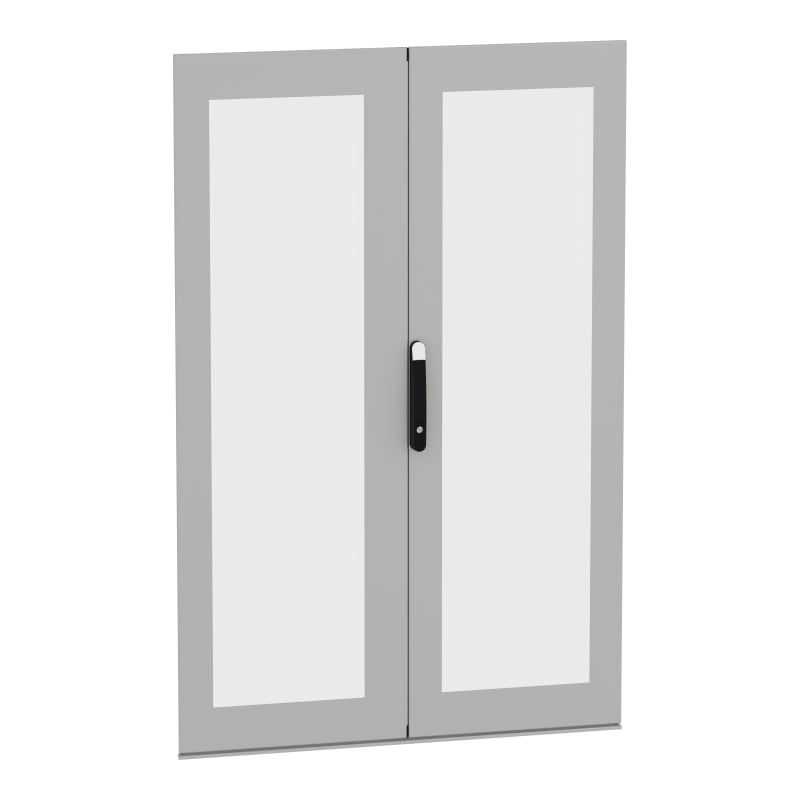

Schneider Electric NSYSFND18122DT Glass Door for PanelSeT SFN/SM, 1800×1200 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFND18122DT is a transparent glass double-door assembly for PanelSeT SFN/SM enclosures, 1800 mm high by 1200 mm wide, complete with a full locking system. Sheet-steel frame with Securit glass panels, epoxy-polyester powder coating in grey (RAL 7035); reversible 120° opening. Includes a 5 mm double-bar lock, four-point locking bar, two-point locking bar and eight hinges. IK08; maximum load 60 kg/m².
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFND18122DT
- EAN / GTIN
- 3606486378335
- Sales unit
- pcs
- Dimensions
- 1800×1200 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- - H: 1800 mm W: 1200 mm
- Mounting location
- Front
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 lock with handle and 5 mm double bar insert; 1 locking bar system 4 points; 2 door; 1 locking bar system 2 points; 8 hinges
- Quantity per set
- Set of 1
- Material
- Door: Securit glass; Door: sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 5 mm double bar
- Number of locks
- 1
- Door type
- External transparent
- Door opening side
- Reversible (120 °)
- Maximum load
- 60 kg/m²
- Height
- Nominal: 1766 mm
- Width
- Nominal: 1169 mm
- Product weight
- 36.9 kg
- IK degree of protection
- IK08
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 26 mm
- EMC-version
- No
- Surface finishing
- Powder coating
- Version as glazed door
- Yes
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486378335
- SAP 1200698033
- Code 83799797
