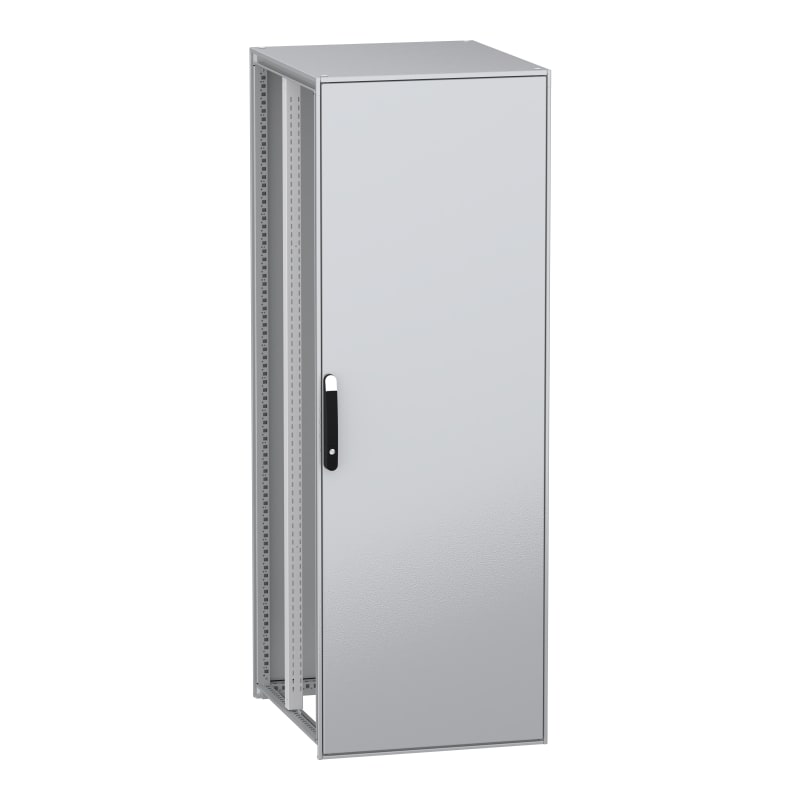

Schneider Electric Floor standing modular electrical enclosure, PrismaSeT HD, decarbonized steel, 2000X700X800MM, IP55 NSYSFPN20780G
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFPN20780G Floor-standing cabinet for electrical distribution, PrismaSeT HD, decarbonised steel, 2000x700x800mm, IP55.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFPN20780G
- EAN / GTIN
- 3606486446041
- Sales unit
- pcs
- Colour
- RAL 7035
- Dimensions
- 2000×700×800
- Range
- PrismaSeT
- Extended range
- PrismaSeT HD
- Application
- Low voltage electrical distribution
- Product or component type
- Suitable enclosure
- Enclosure nominal height
- 2000 mm
- Enclosure nominal width
- 700 mm
- Enclosure nominal depth
- 800 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 structure; 1 door; 1 locking system with handle: door; 1 rear panel; 1 roof: door; 2 adaptor upright; 2 intermediate upright
- Structure type
- Vertical uprights joined with top and bottom frames; Formed from a single section; Perforated structure with a pitch of 25 mm; Panels and doors built into the structure
- Door opening side
- Reversible (120 °)
- Door type
- Glazed front
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Lock type
- 4 points lock, handle with 5 mm double bar insert front door
- Number of doors
- Front: 1 door(s)
- Accessibility for operation
- Sides of enclosure; Rear; Front
- Removable parts
- Door by screws hinge; Rear panel by screws; Roof by screws; Mounting plate bracket by screws; Sliding rail by screws; Adaptor upright by screws
- Material
- Frame: galvanised steel; Uprights: galvanised steel; Door: sheet steel; Panels: sheet steel; Hinge: zamak; Handle: polyamide 6 with 30 % fibre glass
- Surface finish
- Epoxy-polyester powder
- Product weight
- 85.6 kg
- Standards
- IEC 62208; IEC 61439-1; IEC 61439-2
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Environmental characteristic
- Harsh environment
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Width
- 700 mm
- Height
- 2000 mm
- Depth
- 800 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- Yes
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- With ventilation door
- No
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- Yes
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606486446041
- SAP 1200697956
- Code 83799673
Product Documentation
More from Schneider Electric
Schneider Electric

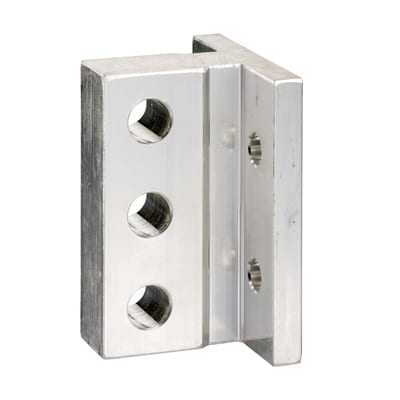

Baksidetilk. MTZ 25-32 3P res.
LV847966SP
Schneider Electric

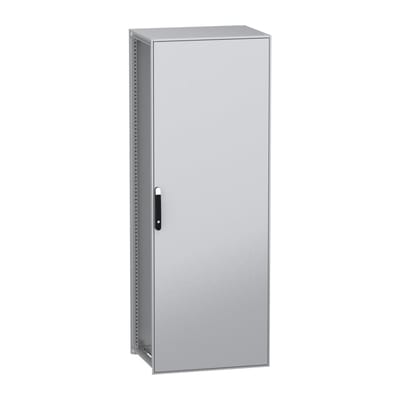

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2200X800X600MM, IP55 NSYSFN22860
Schneider Electric

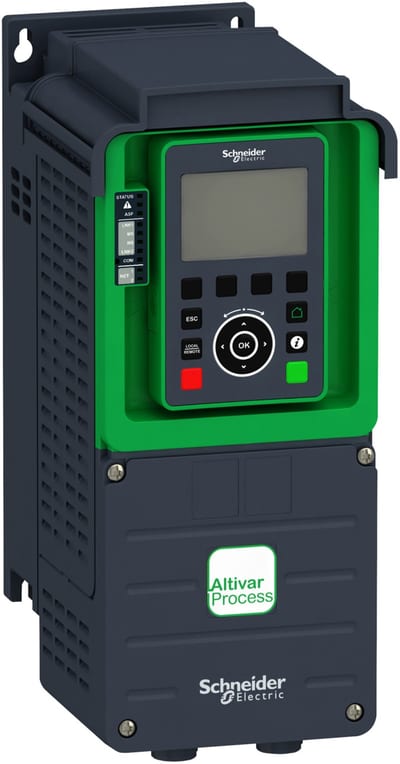

Schneider Electric variable speed drive, ATV930, 1,5kW, 400/480V, with braking unit, IP21 ATV930U15N4
Schneider Electric

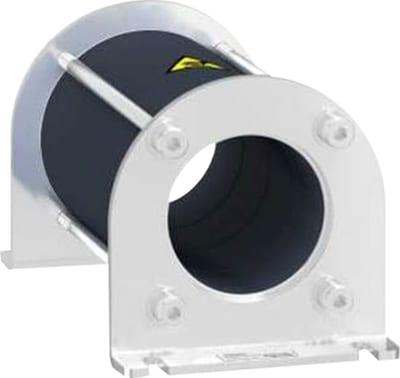

Commenmodefilter t/ 0,75-11kW (VW3A5501)
Schneider Electric
Illuminated Push Button Cap RED
ZBW9133
Schneider Electric
Mounting Plate Metal 200X500
NSYMM25SB
Schneider Electric

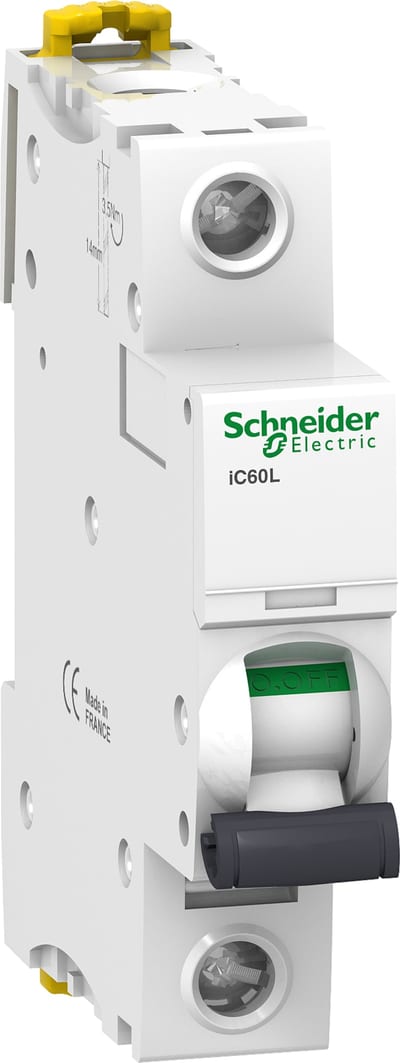

Schneider Electric A9F93140 ACTI9 IC60L Miniature Circuit Breaker 1P 40 A, Curve B
