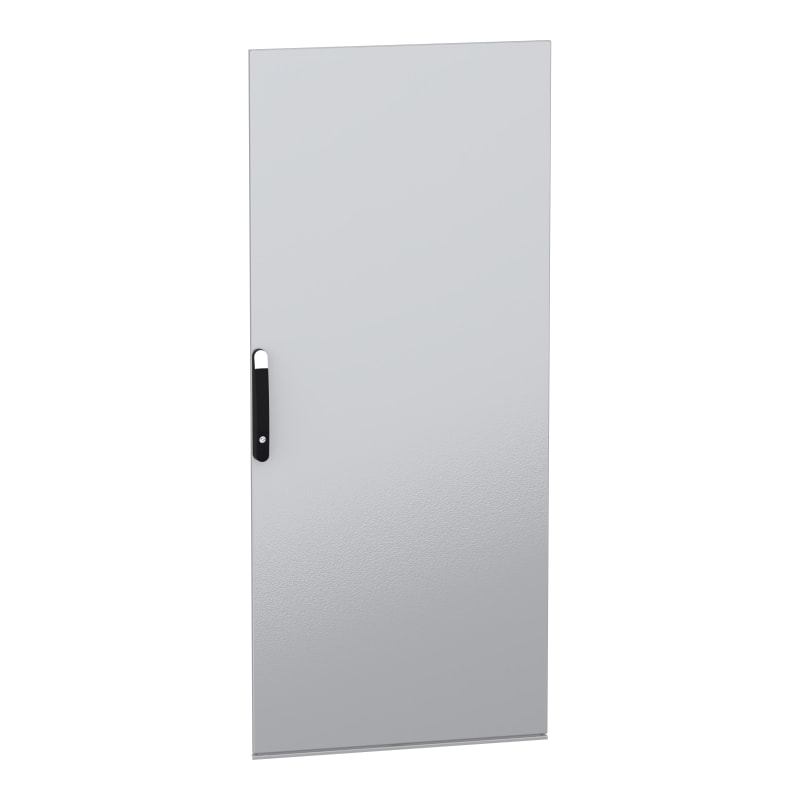

Door SFN/SM 1800X800
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFND188 Door, PanelSeT SFN/SM, complete with locking system, 1800x800.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFND188
- EAN / GTIN
- 3606486378038
- Sales unit
- pcs
- Dimensions
- 1800×800 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Door
- Application
- Multi-purpose
- For enclosure nominal dimensions
- - H: 1800 mm W: 800 mm
- Mounting location
- Side; Front
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 door; 1 lock with handle and 5 mm double bar insert; 1 locking bar system 4 points; 1 reinforcement frame; 4 hinges; 4 locking bar catches
- Quantity per set
- Set of 1
- Material
- Sheet steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Lock type
- Lock 5 mm double bar
- Number of locks
- 1
- Door type
- Plain
- Door opening side
- Reversible (120 °)
- Maximum load
- 60 kg/m²
- Height
- Nominal: 1800 mm
- Width
- Nominal: 769 mm
- Product weight
- 31.5 kg
- IK degree of protection
- IK10
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Compartment door
- Depth
- 26 mm
- EMC-version
- No
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486378038
- SAP 1200697937
- Code 83799812
Product Documentation
More from Schneider Electric
Schneider Electric
Push-Button Head White Nedsenket
ZB4BA16
Schneider Electric
Doorer SFN/SM 1800X1200
NSYSFND18122D
Schneider Electric
Floor-Standing Cabinet 16X6X3 M.PL.
NSYSM16630P
Schneider Electric
Schneider Electric Control relay, TeSys Deca, 5NO, <=690V, 440V DC standard coil, snap-in terminals CAD50ARD
Schneider Electric
Upper+lower frame SFN 1000X400
NSYSFNC104
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2000X1200X600MM, 2 doors, IP55 NSYSFN2012602D
Schneider Electric

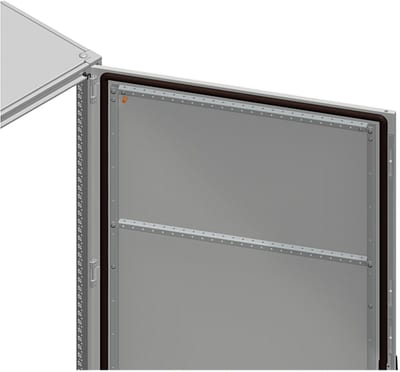

Schneider Electric PanelSeT SF/SM door cross rails - nominal width: 800 mm NSYSDCR8
Schneider Electric

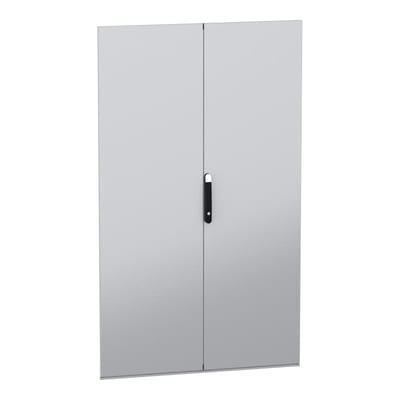

Doorer SFN/SM 2000X1200
