Upper+lower frame SFN 1000X400
Pricing
Request a quote
We reply within 24 hours
Product Description

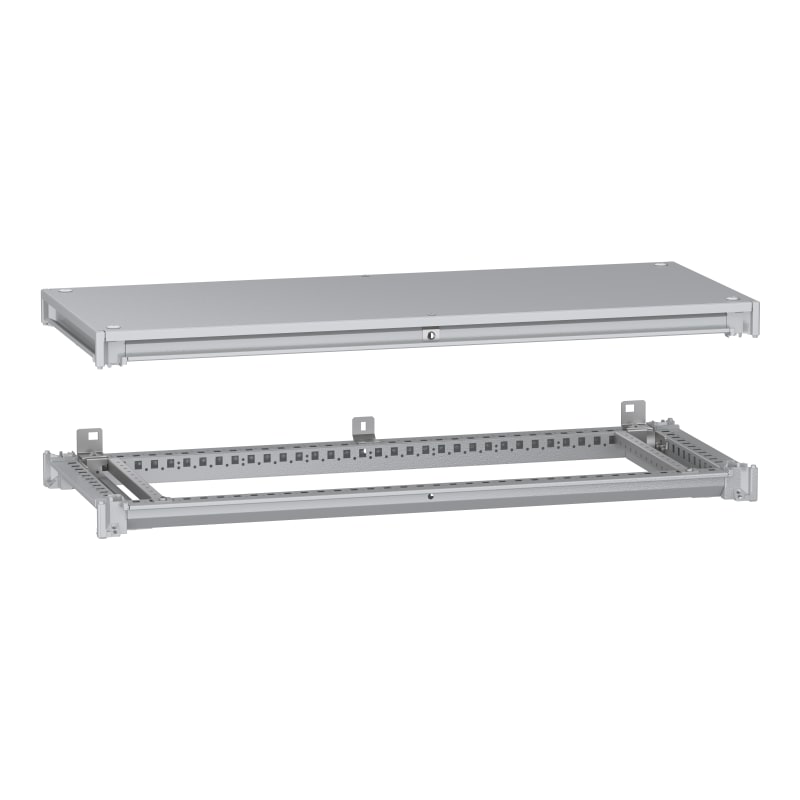

Schneider Electric NSYSFNC104 Upper and lower frame, PanelSeT SFN, 1000x400.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFNC104
- EAN / GTIN
- 3606486104088
- Sales unit
- pcs
- Dimensions
- 1000×400 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Application
- Multi-purpose
- Product or component type
- Framework kit
- For enclosure nominal dimensions
- - W: 1000 mm D: 400 mm
- Mounting location
- Top of vertical uprights; Bottom of vertical uprights
- Range compatibility
- PanelSeT SFN
- Device composition
- 1 bottom frame; 1 roof; 1 top frame
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws - each corner of enclosure location
- Height
- 110 mm
- Width
- 1000 mm
- Depth
- 400 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 16
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Profile
- Suitable for enclosure building width
- 1000 mm
- Suitable for enclosure building depth
- 400 mm
- Max. load capacity
- 1500 kg
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486104088
- SAP 1200698234
- Code 83799829
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 2000X1200X600MM, 2 doors, IP55 NSYSFN2012602D
Schneider Electric
Schneider Electric PanelSeT SF/SM door cross rails - nominal width: 800 mm NSYSDCR8
Schneider Electric
Doorer SFN/SM 2000X1200
NSYSFND20122D
Schneider Electric

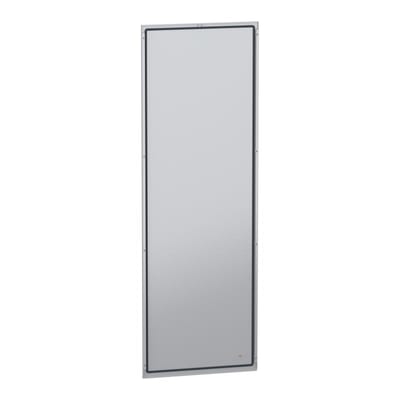

Back panel SFN 2000X700
NSYBPN207
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 12A, 415V AC 50/60Hz coil, snap-in terminals LC1D12AN7
Schneider Electric

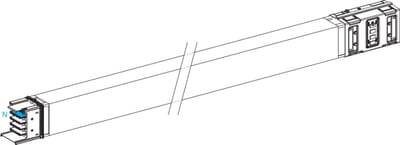

Rail 1000A 3M No Outlet
KSA1000ET430
Schneider Electric

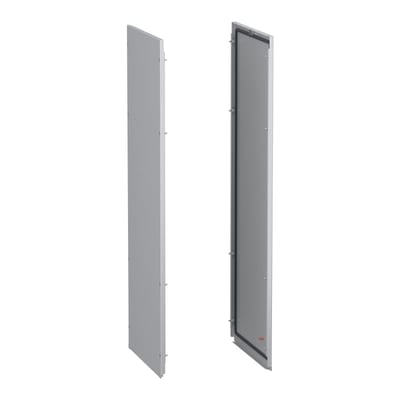

Side Plates SFN 1200X500 (NSY2SPN125)
