Side Plates SFN 2000X500
Pricing
Request a quote
We reply within 24 hours
Product Description

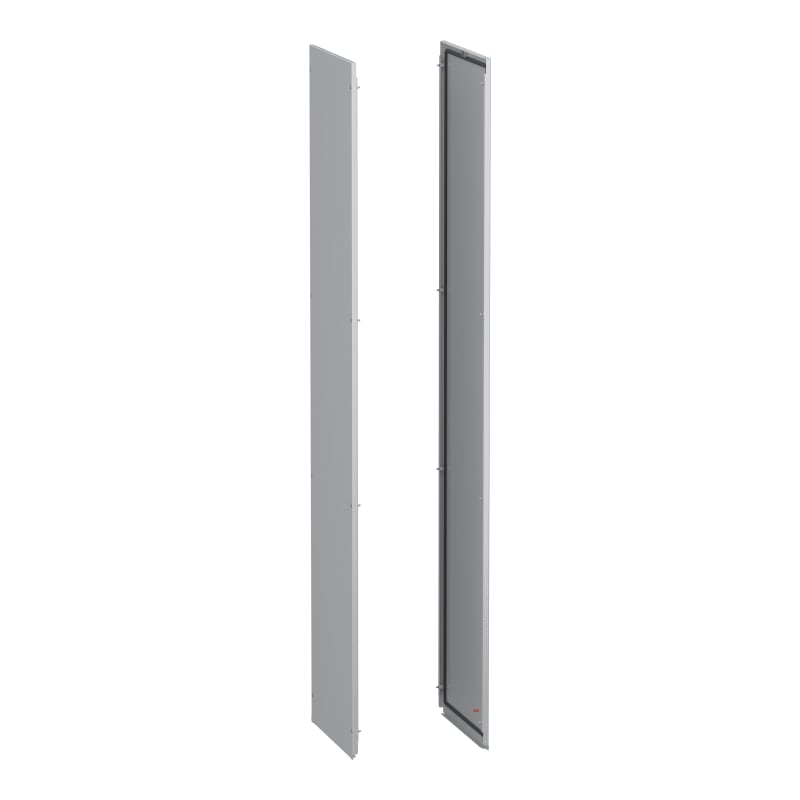

Schneider Electric NSY2SPN205 — Side panels, PanelSeT SFN, for electrical enclosure H2000 D500mm, external fixing, set of 2.
Technical Specifications
- Manufacturer part number (MPN)
- NSY2SPN205
- EAN / GTIN
- 3606486104446
- Sales unit
- pcs
- Dimensions
- 2000×500 mm
- Range
- PanelSeT
- Accessory / separate part category
- Enclosure accessory
- Product or component type
- Side panel
- Application
- Prisma application; Multi-purpose
- For enclosure nominal dimensions
- - H: 2000 mm D: 500 mm
- Mounting location
- Sides of enclosure
- Range compatibility
- PanelSeT SFN
- Device composition
- fixing elements; 2 side panel
- Material
- Steel
- Product weight
- 99.6 kg
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By screws - screw type captive - from the outside of enclosure location
- Height
- Nominal: 2000 mm
- Width
- Nominal: 500 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.500 cm
- Package 1 Width
- 49.000 cm
- Package 1 Length
- 200.000 cm
- Package 1 Weight
- 27.000 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 20
- Package 2 Height
- 83.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 580.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable as side panel
- Yes
- Suitable as rear panel
- No
- Suitable for enclosure building depth
- 500 mm
- Surface finishing
- Powder coating
- RAL-number
- 7035
- With cable entry
- No
- With lock
- No
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606486104446
- SAP 1200698112
- Code 83799791
