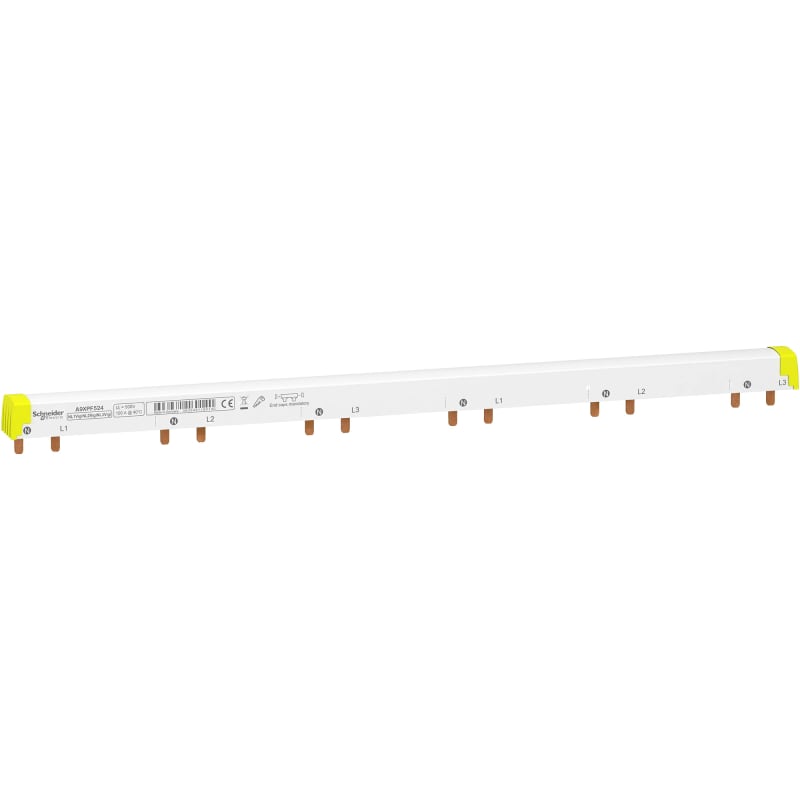

Schneider Electric ACTI9 - comb busbar - 3L+N balanced with Vigi 40/63A - 18 mm pitch - 24 modules A9XPF524

Schneider Electric A9XPF524 Busbar 3P+N 24mod for 2P iC60+Vigi = 40-63A (N-L1, N-L2, N-L3…).

Manufacturer part number (MPN)

A9XPF524

EAN / GTIN

3606481160140

Sales unit

pcs

Package quantity

5 pcs

Number of poles

2P

Range

Acti9

Product or component type

Comb busbar

mounting mode

Horizontal

Accessory / separate part category

Connection accessory

Lines description

3L + N

Length in 18 mm modules

24

Standards

EN/IEC 61439-1

Number of ways

6 ways N + L + Vigi

Distribution type

N L1 Vigi N L2 Vigi N L3 Vigi

Poles configuration for 1 way

1 x 1P + N; 1 x 2P

Connection pitch

18 mm

Connector type

Tooth

Distance between way

72 mm

Marking

N L1 N L2 N L3

Insulation

Insulated

Device presentation

Cuttable

[Ie] rated operational current

100 A at 40 °C

[Ue] rated operational voltage

415 V AC

[Ui] rated insulation voltage

500 V AC conforming to IEC 61439-2

Mounting location

Top on tunnel type terminals

9 mm pitches

48

Width

432 mm

Colour

White (RAL 9003)

Range compatibility

Acti9 iC60; Acti9 Vigi iC60

Product compatibility

add-on residual current devices 40/63 A

Fire resistance

960 °C ( 30 s ) conforming to IEC 60695-2-1

Pollution degree

3 conforming to IEC 60947-7-1

IP degree of protection

IP20 with end-pieces and tooth covers

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

50

Warranty (in months)

18

Insulated

Yes

Number of phases

3

Rated permanent current Iu

100 A

Length

432 mm

Width in number of modular spacings

24

Type of electric connection

Pin

Suitable for devices with auxiliary switch

No

Suitable for devices with N-conductor

Yes

Suitable for number of devices

6

Max. rated operation voltage Ue

415 V

Module width

18 mm

Can be cut to size

Yes

Country of origin

Germany

HS Code

8536.90
