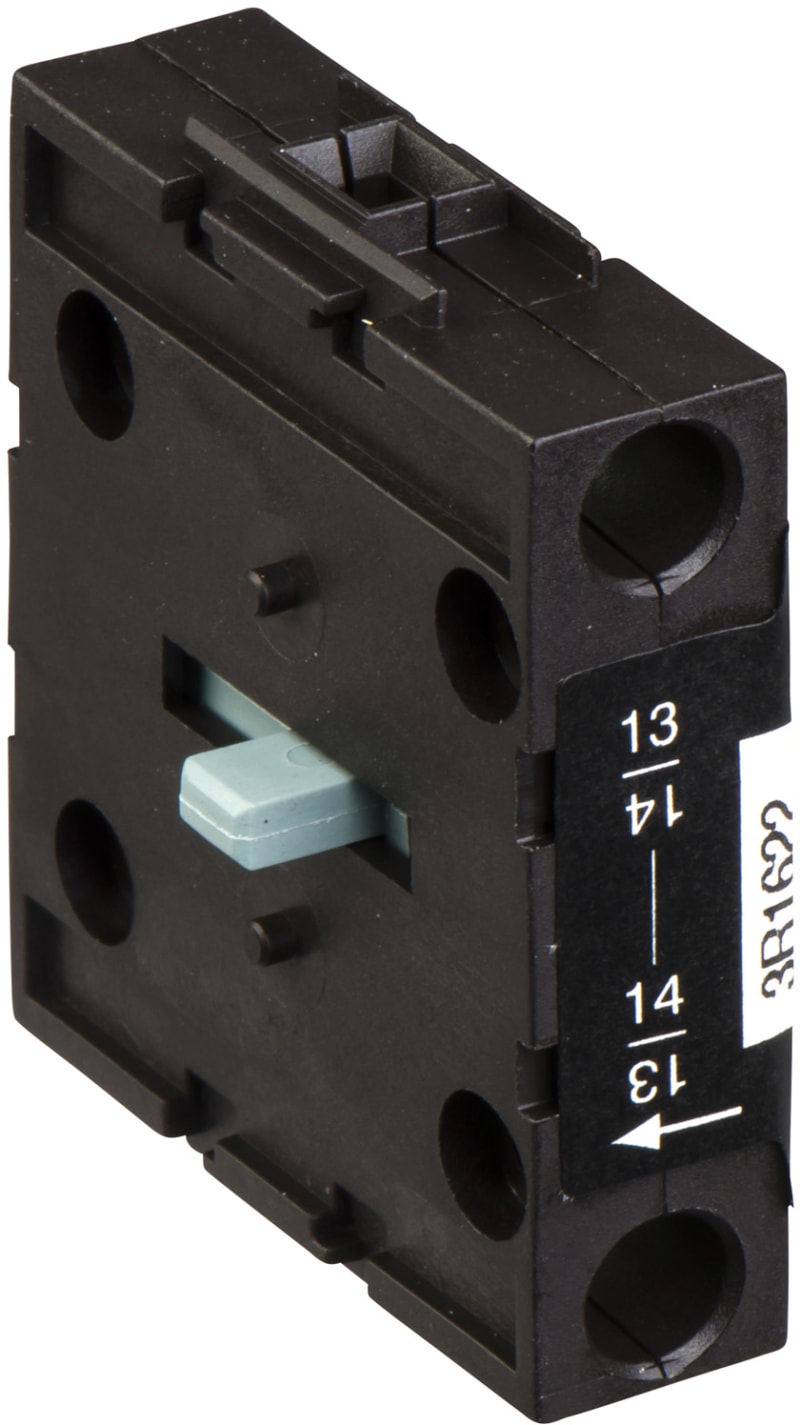

Schneider Electric TeSys Mini-VARIO - auxiliary contact block - 1 NO VZN05

Schneider Electric VZN05 Auxiliary block 1NO Sen Lukking.

Manufacturer part number (MPN)

VZN05

EAN / GTIN

3389110760057

Sales unit

pcs

Package quantity

60 pcs

Range

TeSys

Device short name

VZN

Product or component type

Auxiliary contact block

Performance level

Standard

Contacts type and composition

1 NO

Contact operation

Late-make

Product compatibility

VN20; VN12

Network type

AC; DC

Network frequency

50/60 Hz

Mounting location

Left; Right

Range compatibility

TeSys TeSys VARIO VCFN switch disconnector

[Ue] rated operational voltage

690 V AC 50/60 Hz

[Uimp] rated impulse withstand voltage

6 kV

[Ith] conventional free air thermal current

6 A

[Ithe] conventional enclosed thermal current

4 A

Mechanical durability

50000 cycles

Electrical durability

30000 cycles DC-11; 50000 cycles AC-21

Connections - terminals

Screw clamp terminals 2 cable(s) 0.75…1.5 mm² - flexible - with cable end; Screw clamp terminals 2 cable(s) 1…2.5 mm² - solid

Tightening torque

0.7 N.m - on screw clamp terminals

Height

45.5 mm

Width

12 mm

Depth

39 mm

Product weight

0.02 kg

Standards

IEC 60947-5

Product certifications

GL; CSA; UL

Protective treatment

TC

IP degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20…50 °C

Fire resistance

960 °C conforming to IEC 60695-2-1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.000 cm

Package 1 Width

8.000 cm

Package 1 Length

10.000 cm

Package 1 Weight

23.000 g

Unit Type of Package 2

S01

Number of Units in Package 2

60

Package 2 Height

15.000 cm

Package 2 Width

15.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

1.537 kg

Country of origin

CZ

Warranty (in months)

18

HS Code

8538.90
