Schneider Electric A9A26948 Acti9 iMX+OF Shunt Trip Release 12-24 V AC/DC

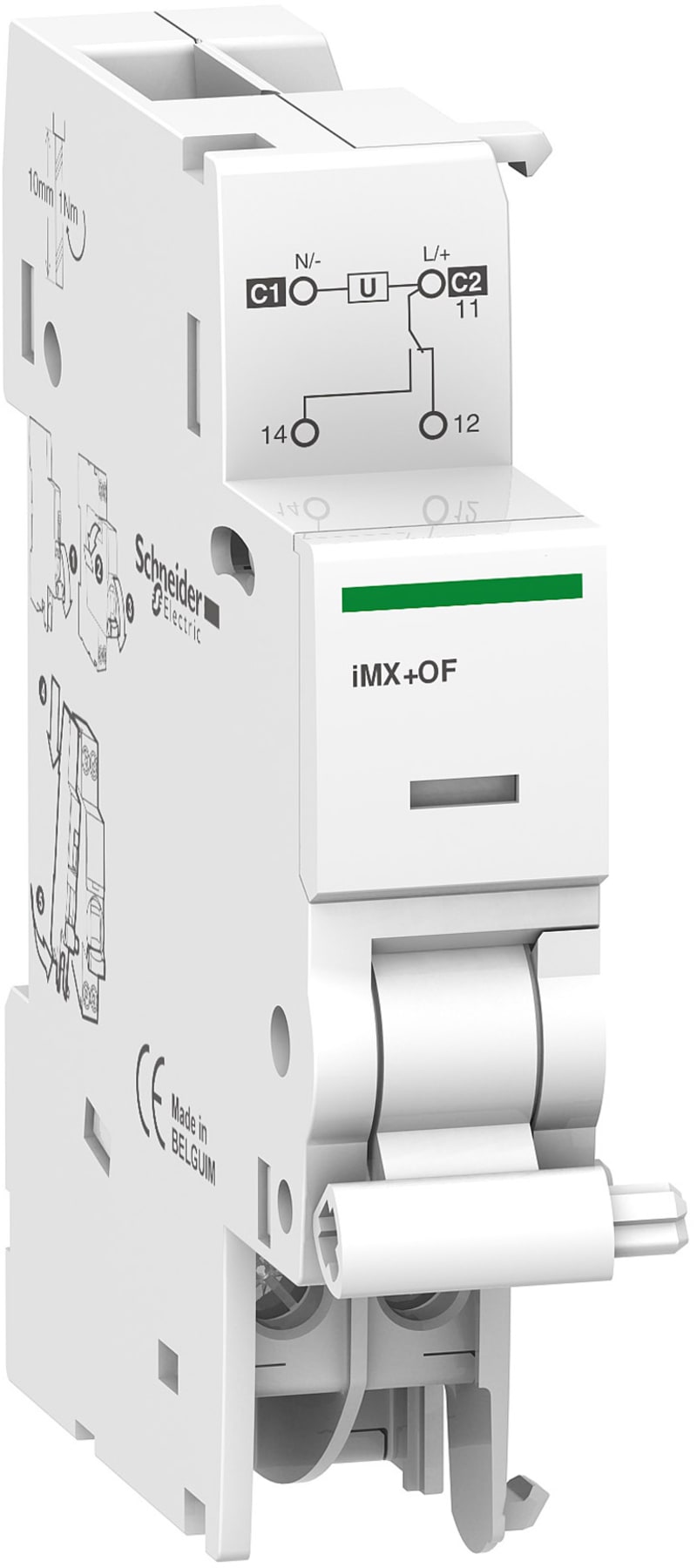

Schneider Electric A9A26948 is an Acti9 iMX+OF shunt trip release with an integrated 1 C/O auxiliary contact for the iC60 range of miniature circuit breakers and RCBOs. The unit trips the associated device on receipt of a 12-24 V AC/DC control signal and reports position via the OF contact. Two 9 mm pitches wide, it clips onto 35 mm DIN rail alongside the host device and suits remote-trip and status-signalling functions in distribution boards.

Manufacturer part number (MPN)

A9A26948

EAN / GTIN

3606480087912

Sales unit

pcs

Package quantity

8 pcs

Voltage

24 V AC

range of product

Acti9

Product or component type

Shunt trip release with OC contact

Device short name

iMX+OF

Signal contacts composition

1 C/O

[In] rated current

AC-12 6 A at 12 V, AC 50 Hz; AC-12 6 A at 24 V, AC 50 Hz; DC-12 6 A at 12 V, DC; DC-12 6 A at 24 V, DC

[Uc] control circuit voltage

12...24 V AC 50/60 Hz; 12...24 V DC

9 mm pitches

2

Range compatibility

Acti9 iC60H RCBO; Acti9 iC60H RCBO PoN; Acti9 iC60H2 RCBO; Acti9 iC60N RCBO; Acti9 iKQE RCBO; Acti9 iCVm40; Acti9 iCVr40; Acti9 iDDm40

Local signalling

Action indicator

mounting mode

Clip-on

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top: YES

Width

18 mm

Colour

White

Connections - terminals

Clamp terminal - 2 cable(s) 2.5 mm² - flexible with cable end; Clamp terminal - 1 cable(s) 6 mm² - rigid; Clamp terminal - 2 cable(s) 2.5 mm² - rigid; Clamp terminal - 1 cable(s) 4 mm² - flexible

Tightening torque

1 N.m

Standards

EN/IEC 60947-1; EN/IEC 60947-5-1

Tropicalisation

2 conforming to EN/IEC 60947-5-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

8

Number of Units in Package 3

72

Country of origin

ES

Warranty (in months)

18

Function

Shunt release (for power circuit breaker)

Voltage type

AC/DC

Rated voltage

24 V

Installed at the factory

No

Width in number of modular spacings

1

Rated switch current

6 A

Device fitting

Miniature circuit breaker (MCB)

Additional equipment

Shunt release (for power circuit breaker)

Voltage type for actuating

AC/DC

Number of contacts as change-over contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

63 A

HS Code

8536.30
