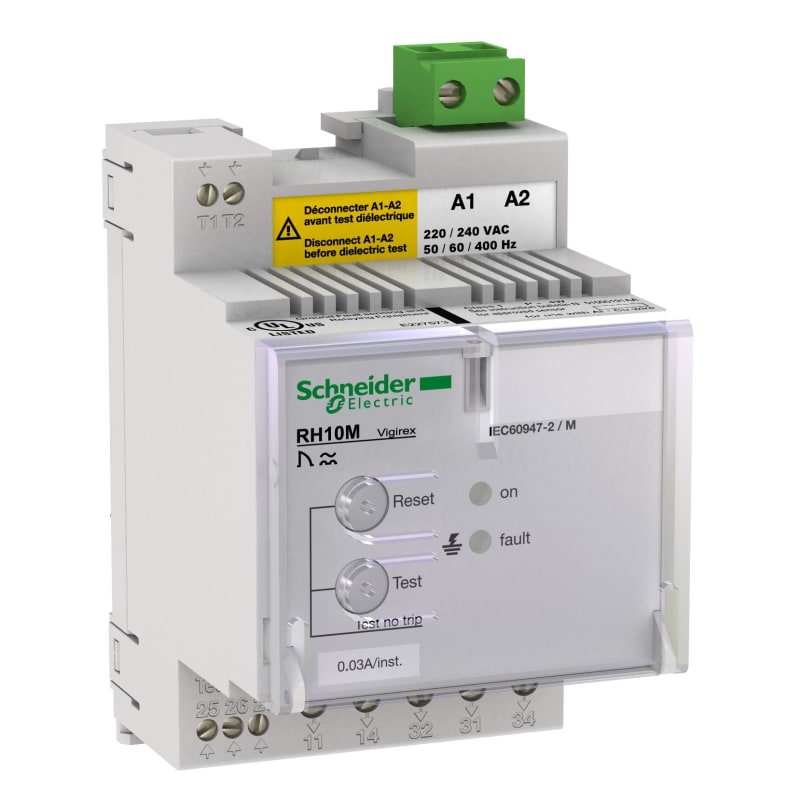

RH10M 12/48VDC-12/24VAC 300MA

Schneider Electric 56105 RH10M 48V AC 50/60HZ-SEUIL 0.3 A INSTANT.

Manufacturer part number (MPN)

56105

EAN / GTIN

3303430561057

Sales unit

pcs

Package quantity

6 pcs

Voltage

12/48 V DC

Operating voltage AC 50 Hz

12–24 V

Operating voltage AC 60 Hz

12–24 V

Operating voltage DC

12–48 V

External power supply required

Yes

Supply voltage AC 50 Hz

12–24 V

Supply voltage AC 60 Hz

12–24 V

Supply voltage DC

12–48 V

Current measuring range

0.015–60 mA

Rated switch current

8 A

Rated operating frequency

50–400 Hz

Voltage measuring range

0–1000 V

Voltage type (operating voltage)

AC/DC

Type of electric connection

Screw connection

Rated control supply voltage DC

12–48 V

Voltage type for actuating

AC

With detachable clamps

No

Function

For mixed system

Response value amperage 1

300 mA

Response value amperage 2

0–30 mA

Min. adjustable delay-on energization time

0 s

Max. permitted delay-on energization time

0.04 s

Indication of difference current

No

Error registration possible

No

Number of contacts as normally open contact

1

Number of contacts as change-over contact

1

Width

54 mm

Height

97 mm

Depth

74 mm

Country of origin

France

HS Code

8536.49
