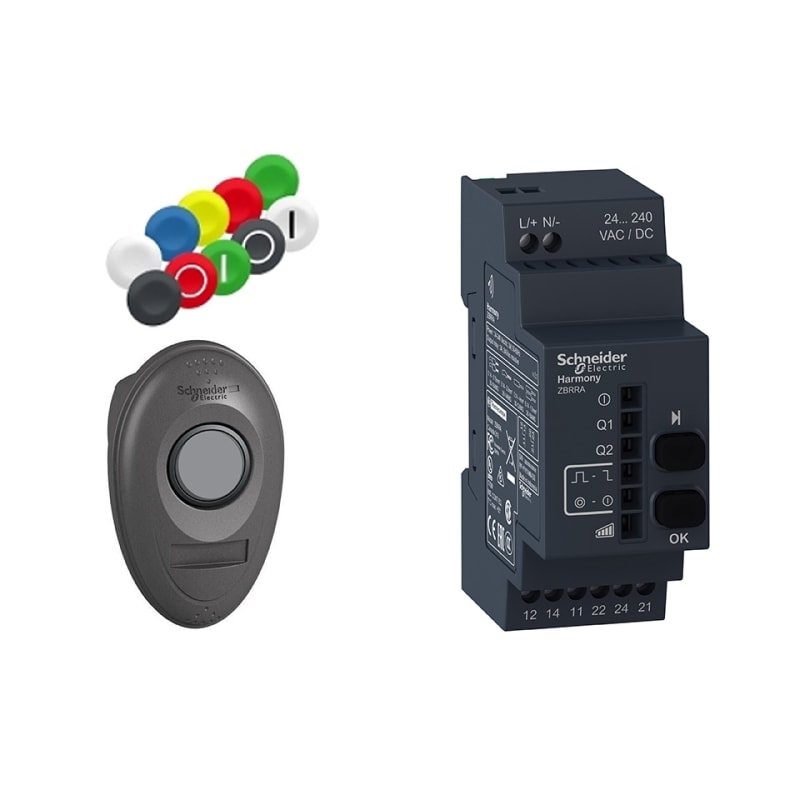

Schneider Electric Pack with 1 wireless push button + 1 configurable receiver + 1 set of 10 colored caps, Harmony XB5, plastic, 22mm, 24...240V AC DC XB5RMA04

Schneider Electric XB5RMA04 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Wireless set with wireless push-button in handy box and receiver with 2 C/O outputs and 24-240V supply.

Manufacturer part number (MPN)

XB5RMA04

EAN / GTIN

3606480334474

Sales unit

pcs

Package quantity

16 pcs

Range of product

Harmony XB5R

Product or component type

Wireless and batteryless package

Device short name

XB5R

Head material

Plastic

frequency

2405 MHz for transmitter; 2405 MHz for receiver

emission class

5M00G7W

Antenna type

Omnidirectional

Control type

Wireless and batteryless push-button handy box assembled on fixing collar

Type of receiver

Programmable receiver (2 relays)

[Us] rated supply voltage

24...240 V AC/DC 50/60 Hz

Kit composition

1 transmitter; 1 set of caps; 1 receiver; 1 fixing collars; 1 diameter: 22 mm; 1 push-button head diameter: 22 mm; 1 handy box

Status LED

1 LED green for power ON; 2 LEDs green for relay ON; 2 LEDs green for function mode; 1 LED green and yellow for reception signal

Communication port protocol

Zigbee conforming to IEEE 802.15.4

Max power consumption in W

1 mW

Number of channels

1

Modulation Technique

O-QPSK

Bandwidth

5 MHz

Antenna gain

0 dBi

Supply voltage

24...240 V

Product certifications

CCC; CSA; C-Tick; GOST; UL

Marking

CE

Standards

CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-1; UL 508

Radio agreement

ANATEL; SRRC; ICASA; FCC; ARIB T66; RSS

Number of Units in Package 1

1

Number of Units in Package 2

16

Warranty (in months)

18

Hole diameter

22.5 mm

Suitable for lighting

No

Number of command positions

1

Spring-return

Yes

Type of button

Combination

Colour front ring

Black

Degree of protection (IP)

IP65

Material front ring

Plastic

With front ring

Yes

Transparent

No

Construction type lens

Round

Supply voltage lamp

24 V

Switching function latching

No

Country of origin

France

HS Code

8537.10
