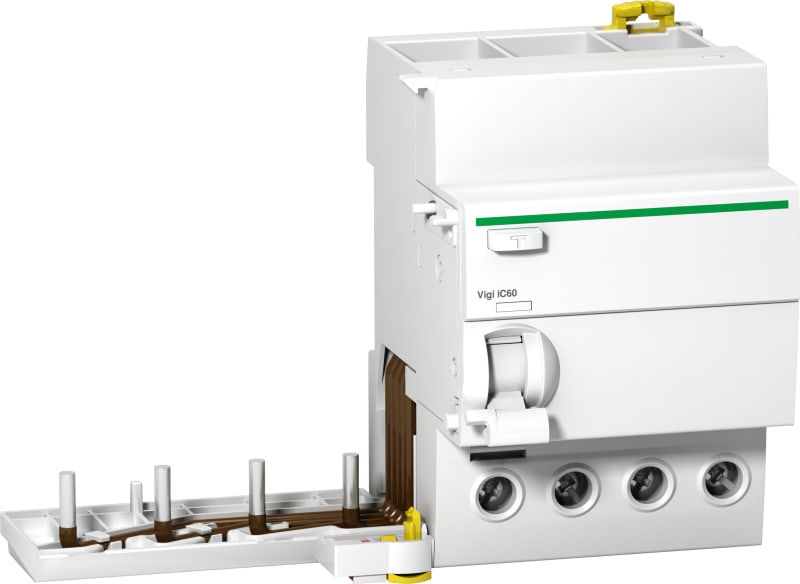

VIGI IC60 4P 63A 30MA SI
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9W31463 Residual current module Vigi IC60 4P 63A 30mA Si.
Technical Specifications
- Manufacturer part number (MPN)
- A9W31463
- EAN / GTIN
- 3606480443749
- Sales unit
- pcs
- Package quantity
- 17 pcs
- Rated current
- 63 A
- Number of poles
- 4P
- Range
- Acti9
- Product name
- Acti9 Vigi iC60
- Product or component type
- Add-on residual current device
- Device short name
- Vigi iC60
- Poles description
- 4P
- [In] rated current
- 63 A
- Earth-leakage sensitivity
- 30 mA
- Earth-leakage protection time delay
- Instantaneous
- Earth leakage protection type
- Type A-SI (Super Immunised)
- Network type
- AC
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 400/415 V AC 50/60 Hz conforming to IEC 61009-1
- Standards
- IEC 61009-1; EN 61009-1
- 9 mm pitches
- 7
- Device location in system
- Outgoer
- Residual current tripping technology
- Voltage independent
- [Ui] rated insulation voltage
- 500 V AC 50/60 Hz conforming to IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947-2
- Range compatibility
- Acti9 iC60
- Product compatibility
- Double terminal
- Local signalling
- Trip indicator
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- Electrical connection to mcb
- By screws
- Height
- 91 mm
- Width
- 135 mm
- Depth
- 74 mm
- Product weight
- 0.245 kg
- Connections - terminals
- Tunnel type terminals downside 1…35 mm² rigid; Tunnel type terminals downside 1…25 mm² flexible
- Wire stripping length
- 14 mm
- Tightening torque
- 3.5 N.m
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- Pollution degree
- 3 conforming to IEC 60947-2
- Electromagnetic compatibility
- 8/20 µs impulse withstand, 3000 A conforming to IEC 61009-1
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
- Power loss
- 2.3 W
- Nominal voltage
- 400–415 V
- Nominal current
- 63 A
- Rated fault current adjustable
- No
- Rated fault current
- 0.03 A
- Delay adjustable
- No
- Leakage current type
- A
- Surge current capacity
- 3 kA
- Frequency
- 50/60 Hz
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 6 kV
- Connectable conductor cross section solid-core
- 1–35 mm²
- Connectable conductor cross section multi-wired
- 1–25 mm²
- Anti-nuisance tripping version
- Yes
- With interlocking device
- No
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -25–60 °C
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 3606480443749
- SAP 1000343927
- Code 81111031
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric A9N26904 Auxiliary contact, ACTI9 A9N, OF, 1 C/O, 100MA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection
Schneider Electric
Schneider Electric Pilot light, Harmony XB4,metal, white, 22mm, universal LED, plain lens, 230...240V AC XB4BVM1
Schneider Electric
Schneider Electric SE Easy UPS, 500VA, Floor/Wall Mount, 230V, 4X CEE 7/3 Schuko outlets, AVR BVS500I-GR
Schneider Electric
Schneider Electric ZBZ1604 red metal padlockable guard for Ø40 mushroom head
Schneider Electric
Floor Box XS one outlet round
INS52101
Schneider Electric
Sealed Front plate 1MODULES PrismaSeT G/P
LVS03801
Schneider Electric

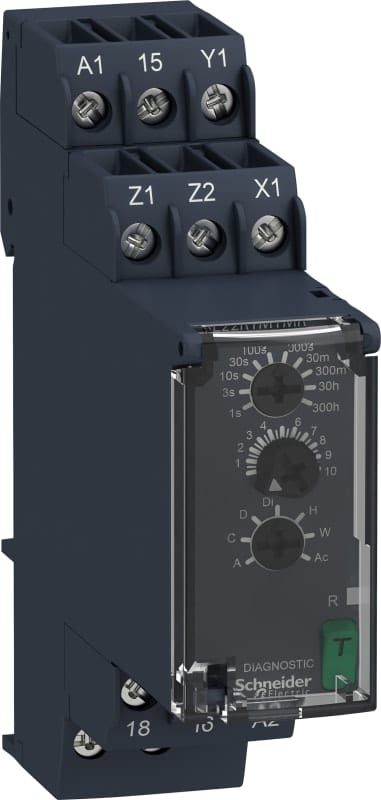

Schneider Electric Multi-function Timing Relay - 0.05S…300H - 24…240V AC/DC - 1C/O RE22R1MYMR
Schneider Electric

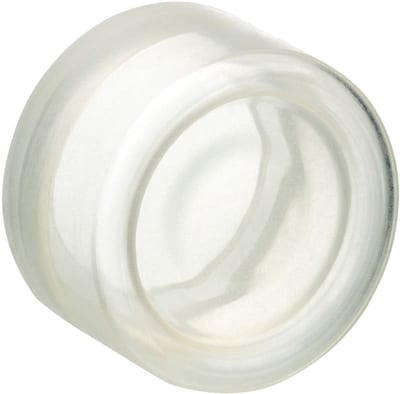

Cap for push-button head with plan push surface
