FJERNKONTR. RCA TI24 IC60 1-2P

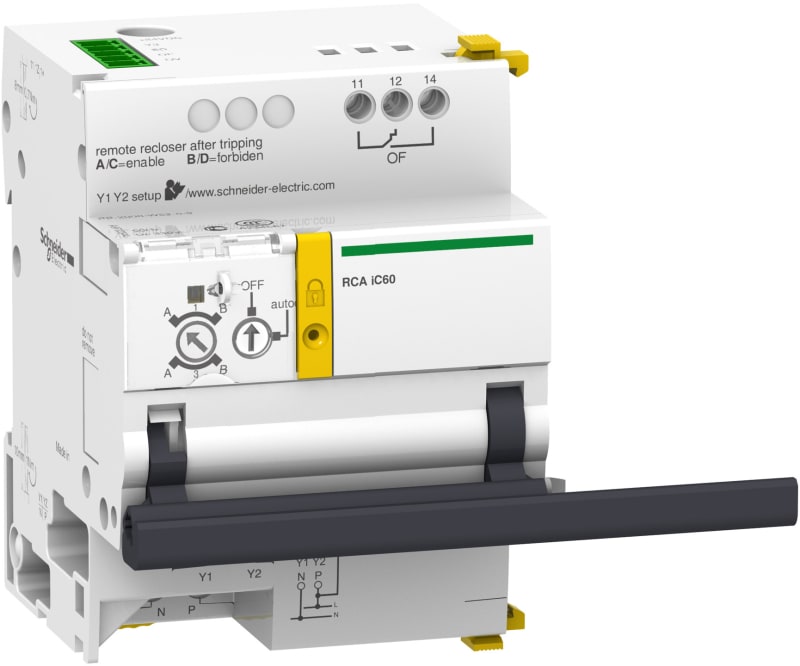

Schneider Electric A9C70124 Remote control RCA Ti24 iC60 1-2P.

Manufacturer part number (MPN)

A9C70124

EAN / GTIN

3606480097973

Sales unit

pcs

Package quantity

14 pcs

Number of poles

2

range of product

Acti9

Product or component type

Remote control auxiliary

Device short name

RCA iC60

Signal contacts composition

1 OF volt-free contacts; 1 OF Ti24; 1 SD Ti24

Signalling circuit voltage

Volt-free contact 24...230 V 0.01…1 A AC; Ti24 24 V 100 mA DC

Control type

Remote control impulse and maintained 230 V AC 50/60 Hz; Remote control maintained Ti24 24 V DC

Input current

5 mA impulse; 5 mA maintained; 5.5 mA maintained very low voltage

Impulse duration

>= 200 ms control circuit

Response time

< 500 ms

[Us] rated supply voltage

230 V AC 50/60 Hz

Power consumption in W

1 W

[Ui] rated insulation voltage

400 V

[Uimp] rated impulse withstand voltage

6 kV

Value of setting

Auto: remote control authorized; Off: remote control inhibited; Mode 1: central control; Mode 3: central control and local override; Position A: reclosing authorized after tripping; Position B: reclosing inhibited after tripping

Local signalling

Flashing green LED: ready to operate; Flashing orange LED: not operational

mounting mode

Fixed

Mounting support

DIN rail

Comb busbar and distribution block compatibility

NO

9 mm pitches

7

Height

93 mm

Width

63 mm

Depth

75.5 mm

Product weight

430 g

Colour

White

Electrical durability

10000 cycles

Mechanical durability

10000 cycles

Provision for padlocking

Padlockable

Wire stripping length

Power supply: 10 mm for bottom connection; Input: 10 mm for bottom connection; Output: 8 mm for top connection; Ti24 interface: 10 mm for terminal connection

Tightening torque

Auxiliary output: 0.7 N.m; Auxiliary supply: 1 N.m; Auxiliary input: 1 N.m

Physical interface

Ti24

Range compatibility

Acti9 iC60; Acti9 iC65; Acti9 iMDU voltage adaptor; Modicon PLC

Product compatibility

3P or 4P iC60; 3P or 4P iC65; iMDU; PLC

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

Pollution degree

3 conforming to IEC 60947

Overvoltage category

II

Tropicalisation

2

Relative humidity

93 % at 40 °C

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…60 °C

Warranty (in months)

18

Function

Remote drive

Voltage type

AC

Rated voltage

230 V

Installed at the factory

No

Width in number of modular spacings

3.5

Rated switch current

0.01 A

Device fitting

Miniature circuit breaker (MCB)

Additional equipment

Remote drive

Voltage type for actuating

AC

Number of contacts as normally closed contact

2

Number of contacts as change-over contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

63 A

Country of origin

Spain

HS Code

8536.50
