VIGI NG125 2-63 30 MA
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 19010 Vigi NG125 2-63 30 mA.
Technical Specifications
- Manufacturer part number (MPN)
- 19010
- EAN / GTIN
- 3303430190103
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Nominal voltage
- 230–415 V
- Nominal current
- 63 A
- Rated fault current adjustable
- No
- Rated fault current
- 0.03 A
- Delay adjustable
- No
- Number of poles
- 2
- Leakage current type
- A
- Surge current capacity
- 3 kA
- Frequency
- 50/60 Hz
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Anti-nuisance tripping version
- No
- With interlocking device
- Yes
- Degree of protection (IP)
- IP20
- Pollution degree
- 3
- Ambient temperature during operating
- -25–60 °C
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3303430190103
- SAP 1000027991
- Code 8248194
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Solid state panel mount relay, 10 A, zero voltage switching, thermal pad, input 90…280 V AC, output 24…300 V AC SSP1A110M7T
Schneider Electric
Schneider Electric TeSys D - star delta starter - 3 x 3P (3 NO) - 12 A - 230 V AC coil LC3D12AP7
Schneider Electric
Schneider Electric TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 25 A - 24 V AC 50/60 Hz coil LC1DT25B7
Schneider Electric
Schneider Electric soft STARTER-ATS22-CTRL110V-POWER208V(100hp)/230V(125hp)/460V(250hp)/575V(300hp) ATS22C32S6U
Schneider Electric
Schneider Electric ClimaSys forced vent. IP54, 850M3/h, 115V, with outlet grille and filter G2 NSYCVF850M115PF
Schneider Electric
Schneider Electric variable speed drive, ATV930, 4kW, 200/240V, with braking unit, IP21 ATV930U40M3
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 9A, 24V DC low consumption coil, snap-in terminals LC1D09ABL
Schneider Electric

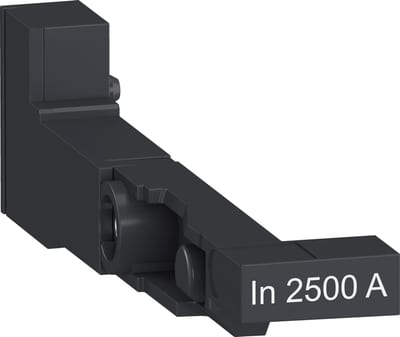

Sensor Plug 2500A MTZ2 N°12
LV833983
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 19010?
- 19010 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is 19010.
- What is the HS code for 19010?
- The customs tariff (HS) code for 19010 is 8536.30.
- Who manufactures 19010?
- 19010 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for 19010?
- Yes — the 19010 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 19010?
- The minimum order quantity is 1.
- Is 19010 available?
- Yes — 19010 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
