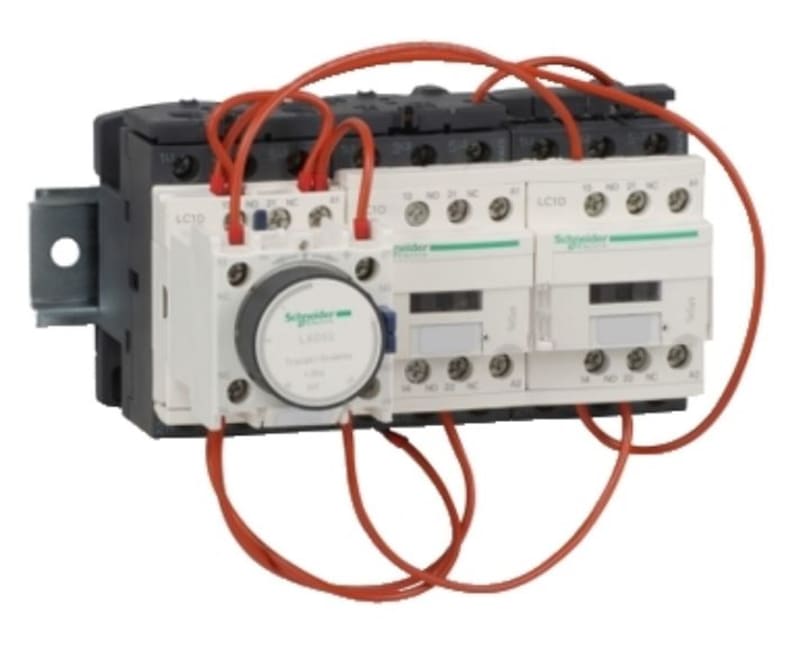

Schneider Electric TeSys D - star delta starter - 3 x 3P (3 NO) - 12 A - 230 V AC coil LC3D12AP7

Schneider Electric LC3D12AP7 Star-/delta 12A 230VAC.

Manufacturer part number (MPN)

LC3D12AP7 EAN / GTIN: 3389110545739 Sales unit: pcs Package quantity: 27 pcs Voltage: 230 V AC Range: TeSys; TeSys Deca Product name: TeSys Deca Product or component type: Star delta starter Device short name: LC3D Contactor application: Motor control Utilisation category: AC-3 Device presentation: Pre-wired Poles description: 3 x 3P power pole contact composition: 3 x 3 NO [Ue] rated operational voltage: Power circuit: <= 690 V AC 25...400 Hz [Ie] rated operational current: 12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit Motor power kW: 11 kW at 380/400 V AC 50/60 Hz; 11 kW at 415 V AC 50/60 Hz; 11 kW at 440 V AC 50/60 Hz; 5.5 kW at 220/230 V AC 50/60 Hz Control circuit type: AC at 50/60 Hz [Uc] control circuit voltage: 230 V AC 50/60 Hz Auxiliary contact composition: 1 NC for KM1 star contactor [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947 Overvoltage category: III [Ui] rated insulation voltage: Power circuit: 690 V conforming to IEC 60947-4-1; Power circuit: 600 V CSA certified; Power circuit: 600 V UL certified; Signalling circuit: 690 V conforming to IEC 60947-1; Signalling circuit: 600 V CSA certified; Signalling circuit: 600 V UL certified Electrical durability: 2 Mcycles 12 A AC-3 at Ue <= 440 V safety cover: Protective cover Interlocking type: Mechanical Mounting support: Plate Standards: IEC 60947-5-1; IEC 60947-4-1; CSA C22.2 No 14; EN 60947-5-1; UL 508; EN 60947-4-1; IEC 60335-1 Product certifications: DNV; CSA; BV; LROS (Lloyds register of shipping); CCC; RINA; GL; GOST; UL Connections - terminals: Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end; Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end; Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Tightening torque: Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2; Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2; Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2; Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 Mechanical durability: 15 Mcycles Maximum operating rate: 30 cyc/h 60 °C Starting time: 30 s Coil technology: Without built-in suppressor module Control circuit voltage limits: Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C); Operational: 0.8...1.1 Uc at 50 Hz (at <60 °C); Operational: 0.85...1.1 Uc at 60 Hz (at <60 °C) Inrush power in VA: 70 VA 60 Hz cos phi 0.75 (at 20 °C); 70 VA 50 Hz cos phi 0.75 (at 20 °C) Hold-in power consumption in VA: 7.5 VA 60 Hz cos phi 0.3 (at 20 °C); 7 VA 50 Hz cos phi 0.3 (at 20 °C) Heat dissipation: 2…3 W at 50/60 Hz Auxiliary contacts type: Mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NC; Mirror contact conforming to IEC 60947-4-1 3 x 1 NC Signalling circuit frequency: 25...400 Hz minimum switching current: 5 mA for signalling circuit minimum switching voltage: 17 V for signalling circuit Non-overlap time: 1.5 ms on de-energisation between NC and NO contact; 1.5 ms on energisation between NC and NO contact Width: 143 mm Height: 124 mm Depth: 143 mm Product weight: 1.53 kg Insulation resistance: > 10 MOhm for signalling circuit IP degree of protection: IP20 front face conforming to IEC 60529 Climatic withstand: conforming to IACS E10; conforming to IEC 60947-1 Annex Q category D Protective treatment: TH conforming to IEC 60068-2-30 Pollution degree: 3 Ambient air temperature for storage: -60…80 °C Ambient air temperature for operation: -40…70 °C at Uc Operating altitude: 3000 m without derating Fire resistance: 850 °C conforming to IEC 60695-2-1 Flame retardance: V1 conforming to UL 94 Mechanical robustness: Vibrations contactor open: 2 Gn, 5...300 Hz; Vibrations contactor closed: 4 Gn, 5...300 Hz; Shocks contactor open: 10 Gn for 11 ms; Shocks contactor closed: 15 Gn for 11 ms Number of Units in Package 1: 1 Number of Units in Package 2: 27 Country of origin: FR Warranty (in months): 18 Function: Star-delta contactor Rated operation power at AC-3, 400 V: 11 kW Number of normally open contacts as main contact: 3 Number of auxiliary contacts as normally closed contact: 1 Rated operation current Ie at AC-3, 400 V: 12 A Rated operation current Ie at AC-1, 400 V: 25 A Suitable for rail mounting: Yes Rated control supply voltage AC 50 Hz: 230 V Rated control supply voltage AC 60 Hz: 230 V Voltage type (operating voltage): AC Degree of protection (IP): IP20 Type of electrical connection of main circuit: Screw connection Operating voltage AC 50 Hz: 440 V Operating voltage AC 60 Hz: 440 V Voltage type for actuating: AC Rated operation power NEMA: 5.59 kW

HS Code

8537.10

• EAN 3389110545739
• SAP 1000253387
• Code 81133883
